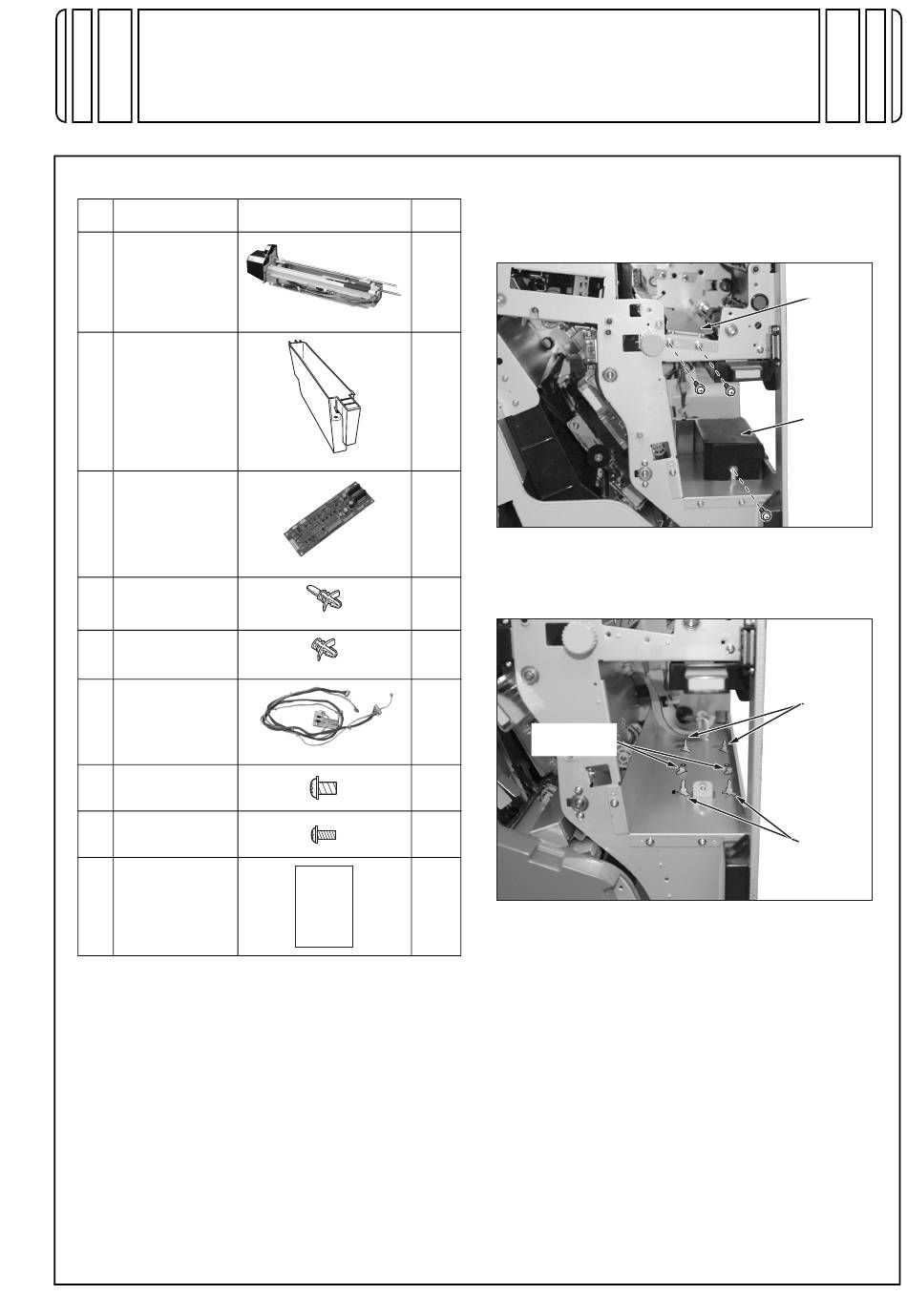

I. Accessory parts
No.
Name
1. Punch Kit
2. Punch waste
box
3. Control board
4. Control board
support /1
5. Control board
support /2
6. Sensor
assembly wire
bundle
7. TP screw
M4x6
8. TP screw
M3x6
9. Installation
manual
II. Preliminary Preparation
1. Turn the machine's Sub and Main switches OFF,
and unplug the power cord.
2. Remove the finisher if there is one mounted to
the machine.
PK-511
INSTALLATION MANUAL
Shape
Q'ty
1
15KJIXC001SA
1
15KNIXC002SA
1
A04EIXC001SA
4
15KNIXC004SA
2
15KJIXC003SA
1
15KJIXC004SA
4
2
1
Punch Kit
III. Installation procedures
1. Open the front door of the Finisher.
2. Remove the control board cover. (1 screw)
3. Remove the guide plate. (2 screws)
4. Insert the two of the control board support/1 into
the back side, and insert two into the front side.
Insert the two of the control board support/2 into
the central area of the front side.
Control board
support /2
E-1
Applied Machines: FS-520/FS-607
Guide plate
Control board
cover
15KNIXE001SB
Control board
support /1
Control board
support /1
15KJIXE001SA
A04E955034
Advertisement
Related Manuals for Konica Minolta PK-511
Summary of Contents for Konica Minolta PK-511
- Page 1 PK-511 Punch Kit INSTALLATION MANUAL Applied Machines: FS-520/FS-607 I. Accessory parts III. Installation procedures 1. Open the front door of the Finisher. Name Shape Q’ty 2. Remove the control board cover. (1 screw) 1. Punch Kit 3. Remove the guide plate. (2 screws)
- Page 2 5. Making sure the direction is correct, install the 7. Temporarily tighten the screw (TP screw M3x6: 1 control board on the control board supports. pc.) on the back side of the finisher. Position the sensor on the sensor assembly wire bundle with Note: the projection then fasten with the temporarily When installing the control board, mount it so that...
- Page 3 Put the Punch kit wire bundle in the finisher before Punch kit connectors inserting the Punch Kit. For PK-511 15KJIXE012SB (4) Connect the Punch kit wire bundle to three connec- tors on the control board as shown in the figure.
- Page 4 (5) Attach the Punch kit wire bundle to the four wire 15. Install the finisher to the machine. saddles. Note: • Check that the machine installation plate/ lower (Finisher accessory parts) hook is securely set on the finisher when installing the finisher to the machine.
- Page 5 18. Adjust the skew of the hole punch position. 19. Adjust the skew of the hole punch position. (1) Insert a piece of paper into the finisher’s inter- (When PI-502 is installed to the finisher) lock to turn it ON. (1) Make sample copies from the PI-502 in Punch mode.
- Page 6 21. Install the Punch kit cover. (TP screw M3x6: 3 pcs.) Step Note: 2. For the lower tray, remove the 2 side guide When installing the Punch kit cover, be careful not board/back mounting screws and slide it to the to get the wire bundles caught in it.
- Page 7 Step Step 9. Place A4 or 8.5x11 paper by short edge feed- 10. Touch “Return” to return to the [Punch Adjust- ing in the cover sheet tray, and adjust the ment Menu] screen. cover sheet tray size in [Service Mode]. Note: Adjusting the punch registration If the side guide board/back slides too much,...
- Page 8 Step 6. Make another sample copy. 7. Repeat steps 3 to 6 until the punch registra- tion size of PI1 tray is appropriate. 8. Place paper in the PI2 tray. 9. Repeat steps 3 to 6 until the punch registra- tion size of PI2 tray is appropriate.
