Fix the 50-200 FISH FINDER to the mounting location using the four
screws (holes diameter 4 mm), see Fig. 4.3.2.
Route the CHART PLOTTER cable to the chart plotter.
Mount the transducer according to the instructions provided with it.
Connect the POWER cable to the battery. Please be advised that the
50-200 FISH FINDER when not operating will remain in Stand-By mode.

4.3.2 Installing Optional Devices

See the External Connection diagram.
4.4

STATUS LED

There are seven different LED behaviors, representing seven different diagnostic
conditions. These are described below.
OFF
The 50-200 FISH FINDER is running in the boot loader, or DC power is
not being supplied to the 50-200 FISH FINDER.
ON, CONTINUOSLY
The transducer is not connected to the chart plotter or problem with
cable of the transducer cable.
1 long flash every 2 seconds
The 50-200 FISH FINDER is not connected with the chart plotter.
1 short flash every 2 seconds
The 50-200 FISH FINDER is connected to the chart plotter and is oper-
ating correctly.
2 short flashes every 2 seconds
The 50-200 FISH FINDER is not operating as it is waiting for a com-
mand from the chart plotter.
3 short flashes every 2 seconds
A transducer (without transducer ID) has been connected.
4 short flashes every 2 seconds:
No transducer connected.
User Manual

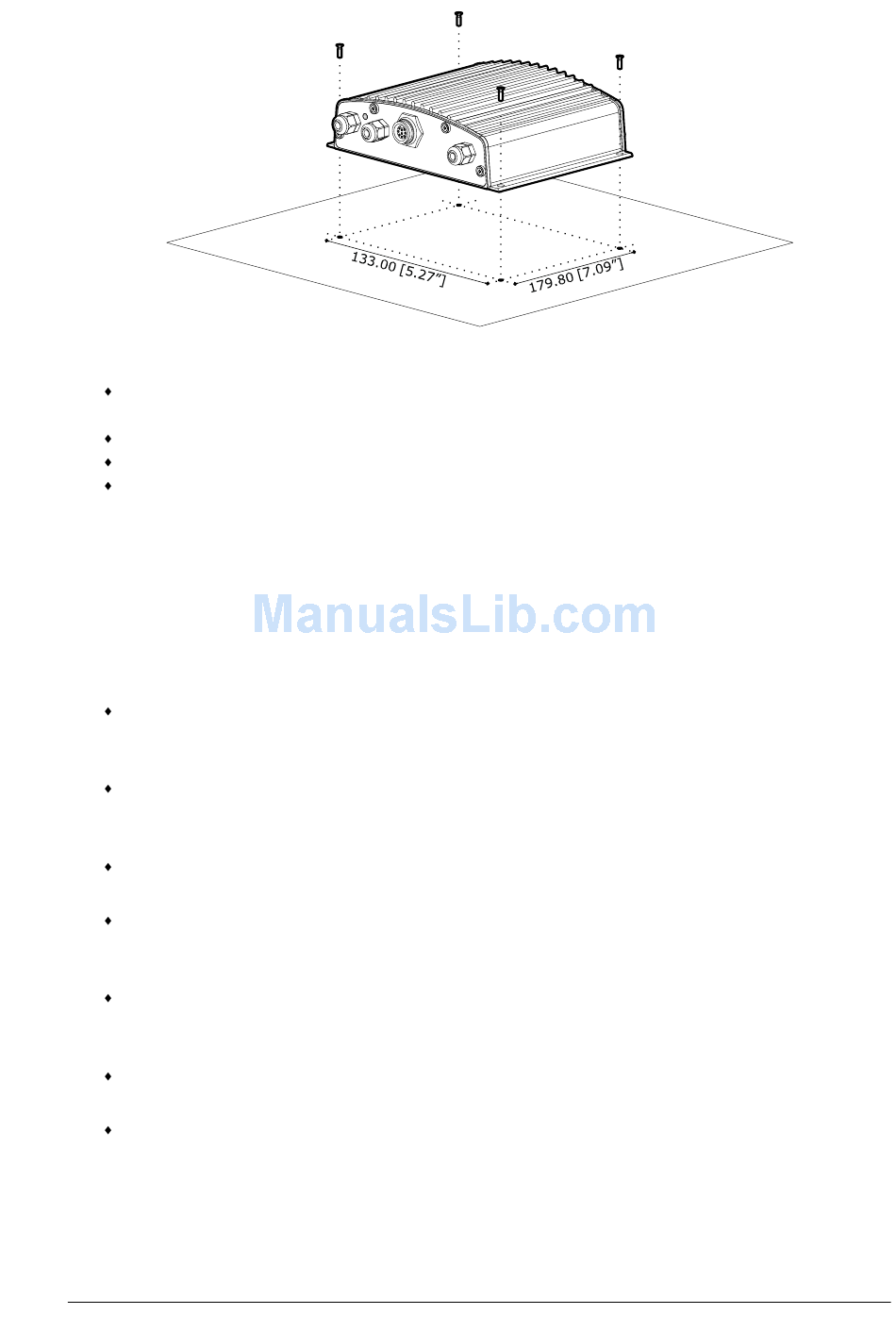

Fig. 4.3.1 - The 50-200 FISH FINDER Installation
27
