The Depth Cursor is shown only on the unzoomed Fish Finder Display.
The ZOOM IN and ZOOM OUT keys
From this page pressing [ZOOM IN] changes to Zoom 4X, pressing [ZOOM OUT]
changes to Zoom 2X.

2.2.5 Chart/Fish Display page

To display the Chart page on the left half of the screen and the Fish Finder Display
on the right half of the screen, follow this procedure:
[PAGE] + "Chart/Fish Display" + [ENTER]
The MENU key (to change the active window)
When in Chart/Fish mode pressing [MENU]:
if the focus (the active window) in on the Chart, the Main menu is
shown. Pressing again [MENU] opens the Fish Finder Setup menu and
moves the focus to the Fish Finder.
if the focus (the active window) in on the Fish Finder, the Fish Finder
Setup menu is shown. Pressing again [MENU] opens the Main menu
and moves the focus to the Chart.
NOTE When the focus is on the Chart, all keys behave as in standard chart mode.
2.2.6 Fish Finder and Radar pages
To display the Radar page on the left half of the screen and the Fish Finder Display
on the right half of the screen, follow this procedure:
[PAGE] + "Radar/FF" + [ENTER]
16

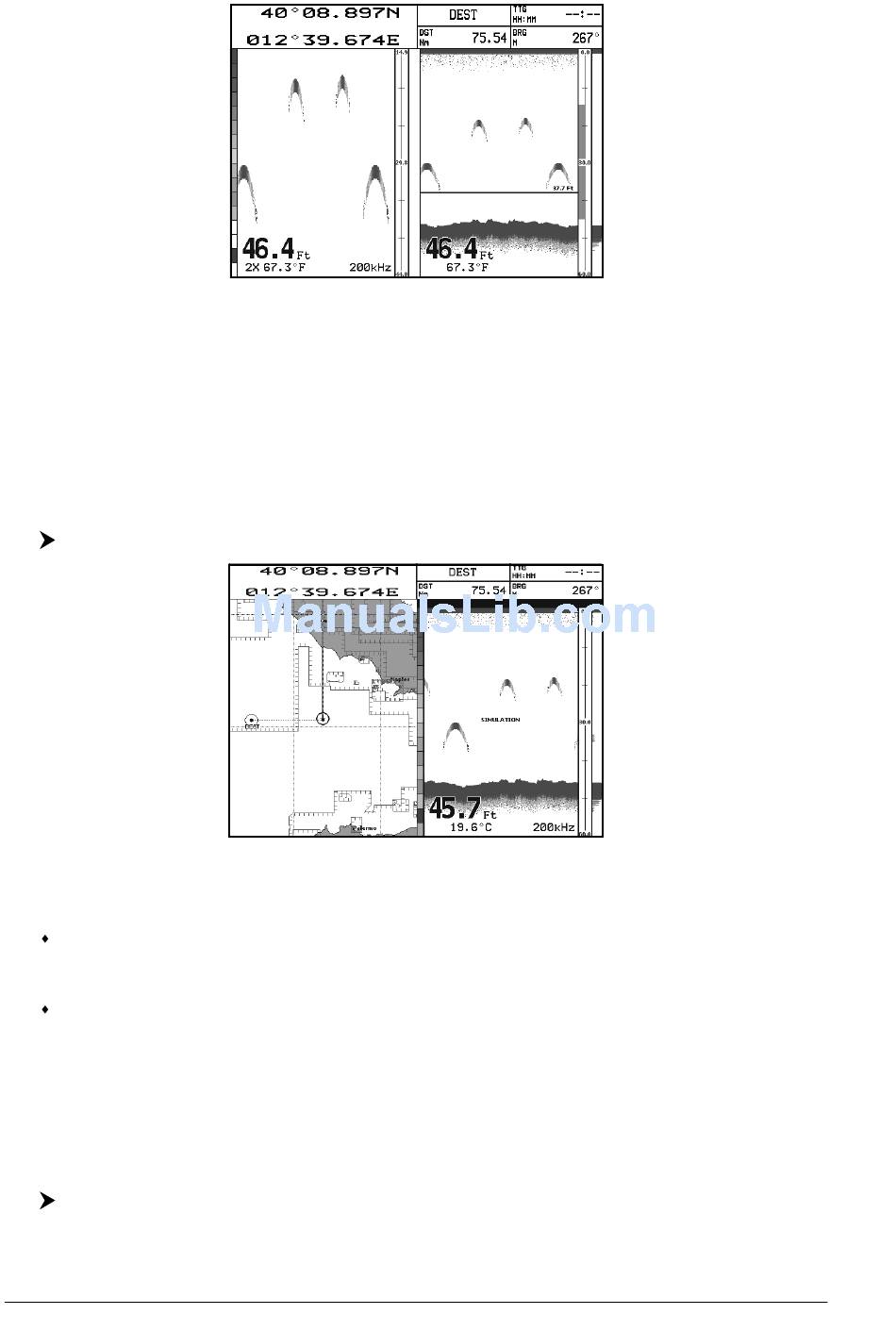

Fig. 2.2.4 - Fish Finder Zoom Page
