Chapter 2 Field Installation
Fitting the Antenna,
cont.
10
RFID 13.56 MHz Interface Board for EasyCoder F2 and F4 Printers – Installation Instructions
• Route the cable through the same slot in the center section
as the LSS cable.
• Fit back the media guide assy and grounding spring using
the three #T20 Torx screws while pulling at the antenna and
LSS cables. Make sure the grunding spring is fi tted straight
up.
• Put back the edge guide or the quick-load guides. In case of
EasyCoder F4, also put back the cable guard.
• Put back the guide link and the tear bar, making sure that
the tear bar snaps at the inner end of the liner drive roller.
• Connect the LSS cable to P53 at the front edge of the CPU
board (marked "LSS").

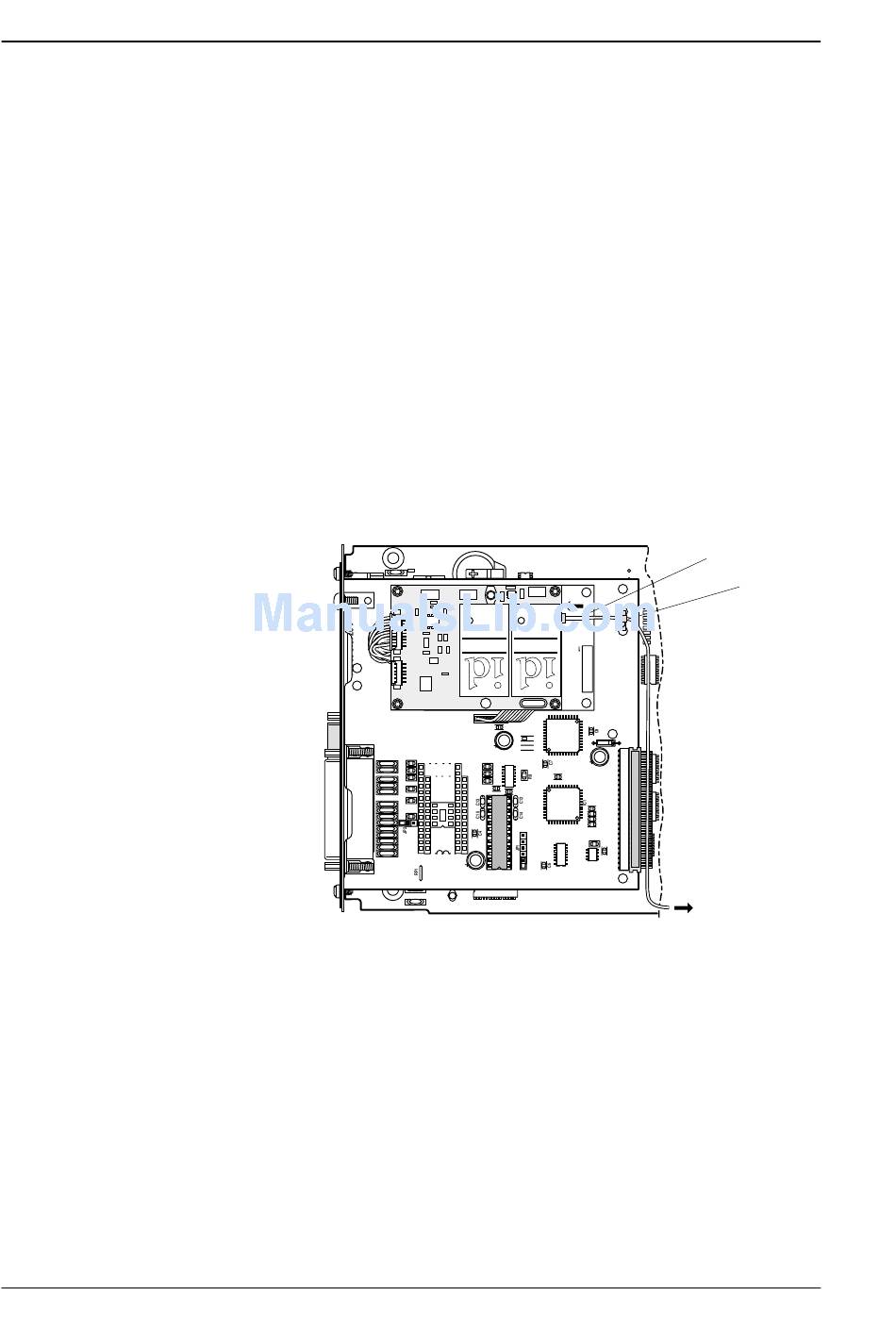

• Route the antenna cable along the edge of the bottom plate
and connect it to the RFID interface board as illustrated
below.
• Secure the antenna cable to the RFID interface board using
the cable strap included in the kit.
P35
IC305
P33
www.idsys.co.uk
UART3
RS232: IC2
RS485: IC4, S3, S4*
UART2 RS422isolated: IC3, S2, S4
RS422nonisol.: IC18, S1,S4
* Term. if end of cable
R11
F10
F11
R6
F12
R7
F13
F14
R4
F9
R5
F8
R10
F6
F5
F4 S4
IC18
F3
F7
F2
F1
IC4 IC3
P3
• Fit the two self-adhesive cable straps on the antenna cable
and attach them to the upper side of the bottom plate where
they will not interfere with the stiffeners on the inside of the
front/left-hand cover.
www.idsys.co.uk
RFE
SYSTEMS SYSTEMS
1
P4
IC10
C17
AB
C16
D1
P1
P5
P6
IC7
R3
C10
R2
C2
R1
C3
R15
+
C1
+
+
R13
R12
+
R14
S3
R8
IC6
C11
S2
C5
S1
IC5
IC2
P81
Connect here!
Strap
To antenna board
