Chapter 2 Field Installation

Fitting the Antenna

8
RFID 13.56 MHz Interface Board for EasyCoder F2 and F4 Printers – Installation Instructions
The shape of the antenna differs between EasyCoder F2 and
EasyCoder F4. The antenna is fi tted inside the lower media
guide. To be able to fi t it, you must remove the tear bar, the
guide link, and media guide assy.
• Raise the printhead to open position.
• Remove the tear bar by pulling it upwards. Avoid bending
the hooks, which will make it loose-fi tting.
• Press down the snap-lock at the bottom of the guide link
and pry the guide link away from the shafts of the platen
roller and the liner drive roller.

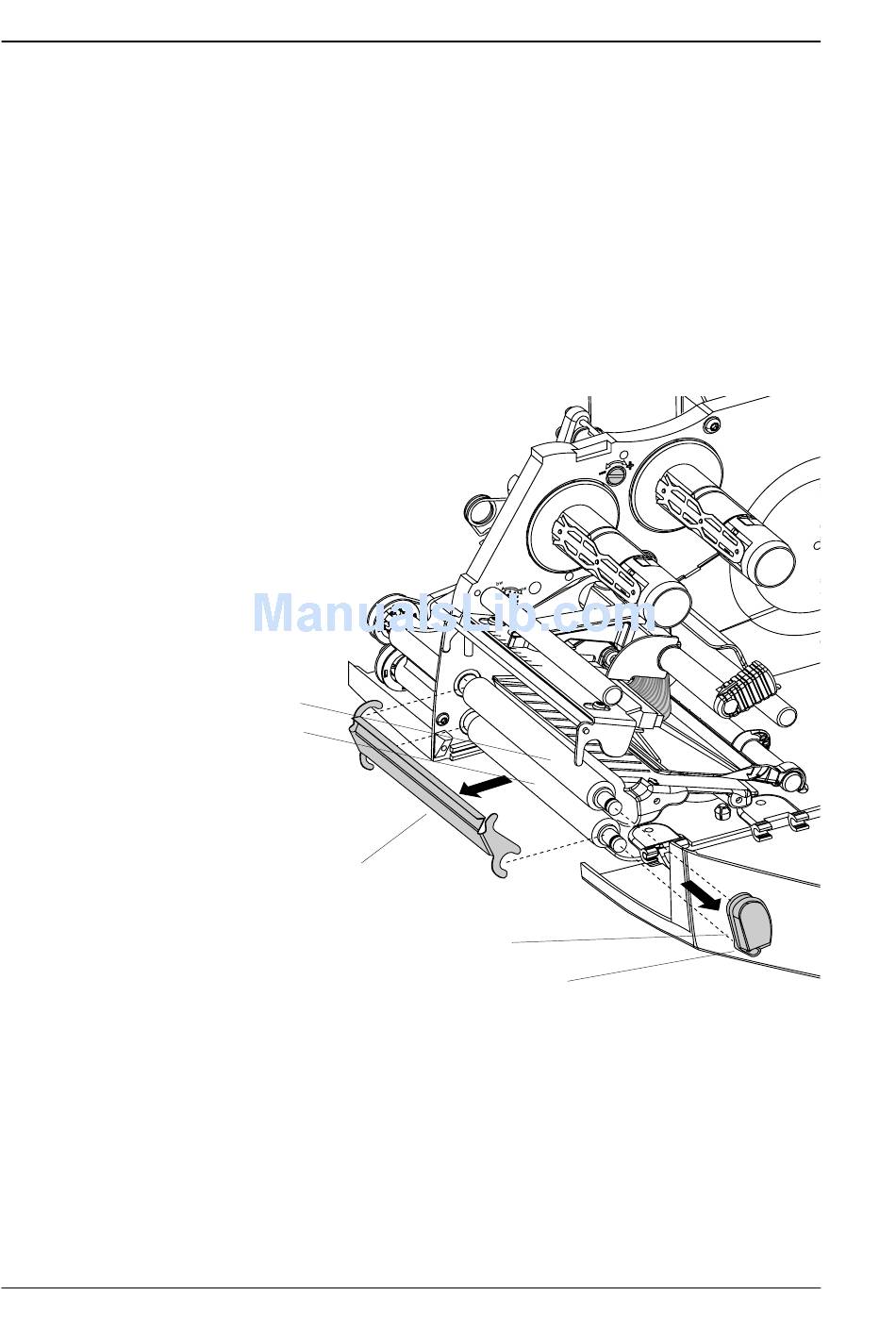

Platen Roller
Liner Drive Roller
Tear Bar
Guide Link
Snap-Lock
