Chapter 1 — Getting Started
12
C d 39

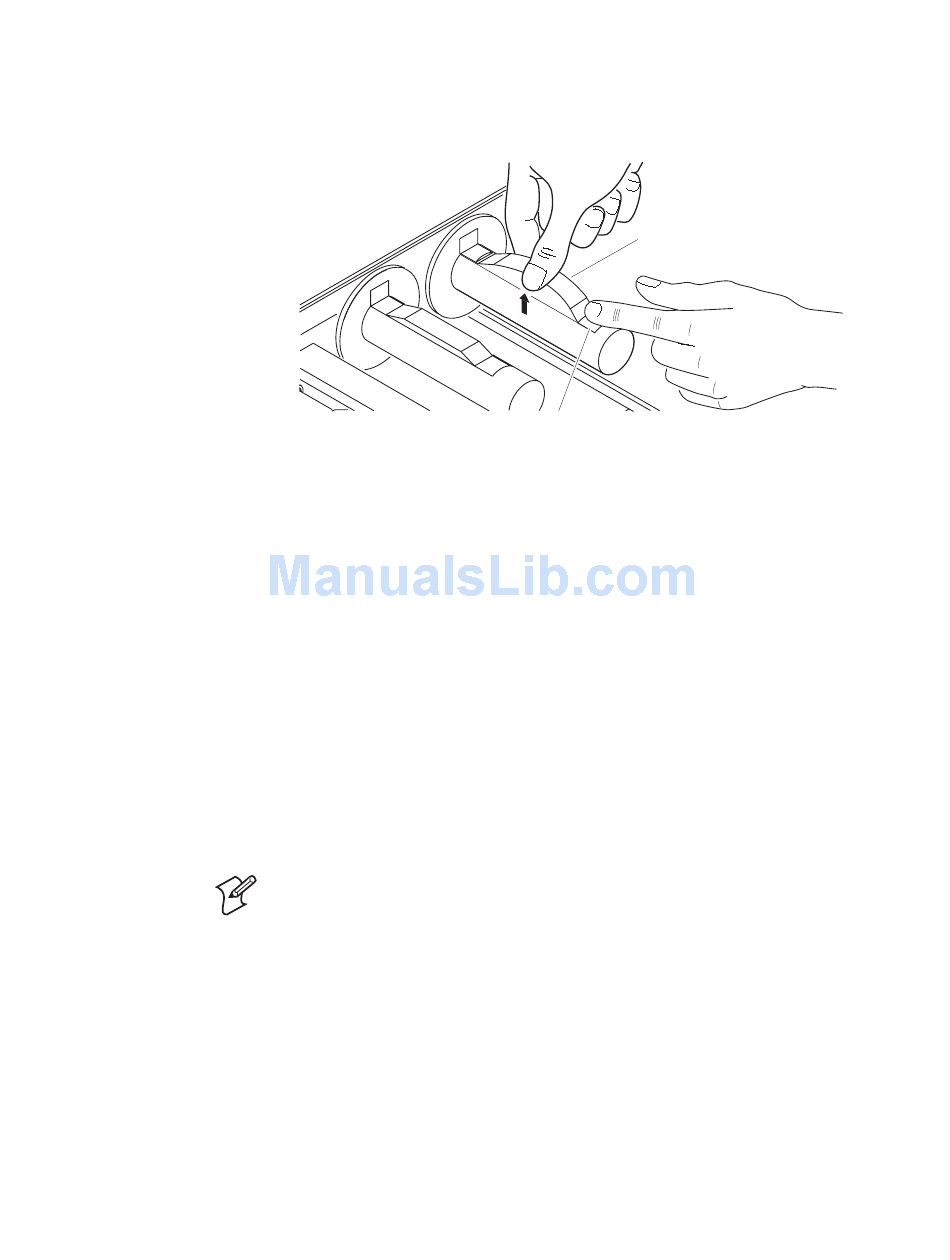

4 Lift up on the middle of the bracket and use your index finger to slide
the other end of the bracket into the remaining bracket slot on the
ribbon hub.
To load thermal transfer ribbon
1 Make sure you have raised the printhead. If not, turn the head lift lever
clockwise until it releases the printhead.
2 Place the empty ribbon core that came with the printer onto the ribbon
rewind hub.
3 Detach the leader from the new thermal transfer ribbon roll and unwind
the end of the ribbon approximately 20.32 cm (8 in). The edge of the
ribbon has a leader (with an adhesive strip on the leader edge) for
guiding the ribbon through the printhead mechanism.
4 Slide the roll of thermal transfer ribbon onto the ribbon supply hub
with the ribbon roll winding clockwise.
5 Route the ribbon leader through the printer mechanism as shown in the
following illustration.
6 Attach the leader from the new thermal transfer ribbon roll to the
empty ribbon core using the adhesive strip on the leader edge.
Note: Make sure the ribbon runs above the upper media guide. The
shiny side of the ribbon must come in contact with the printhead.
7 Wind the ribbon rewind hub clockwise until the ribbon runs smoothly
through the printhead mechanism and the leader moves past the
printhead.
EasyCoder 4420 and 4440 Bar Code Label Printer User's Manual
Helvetica Condensed Helvetica
Core-locking
bracket
Bracket slot
44XXU029.eps
