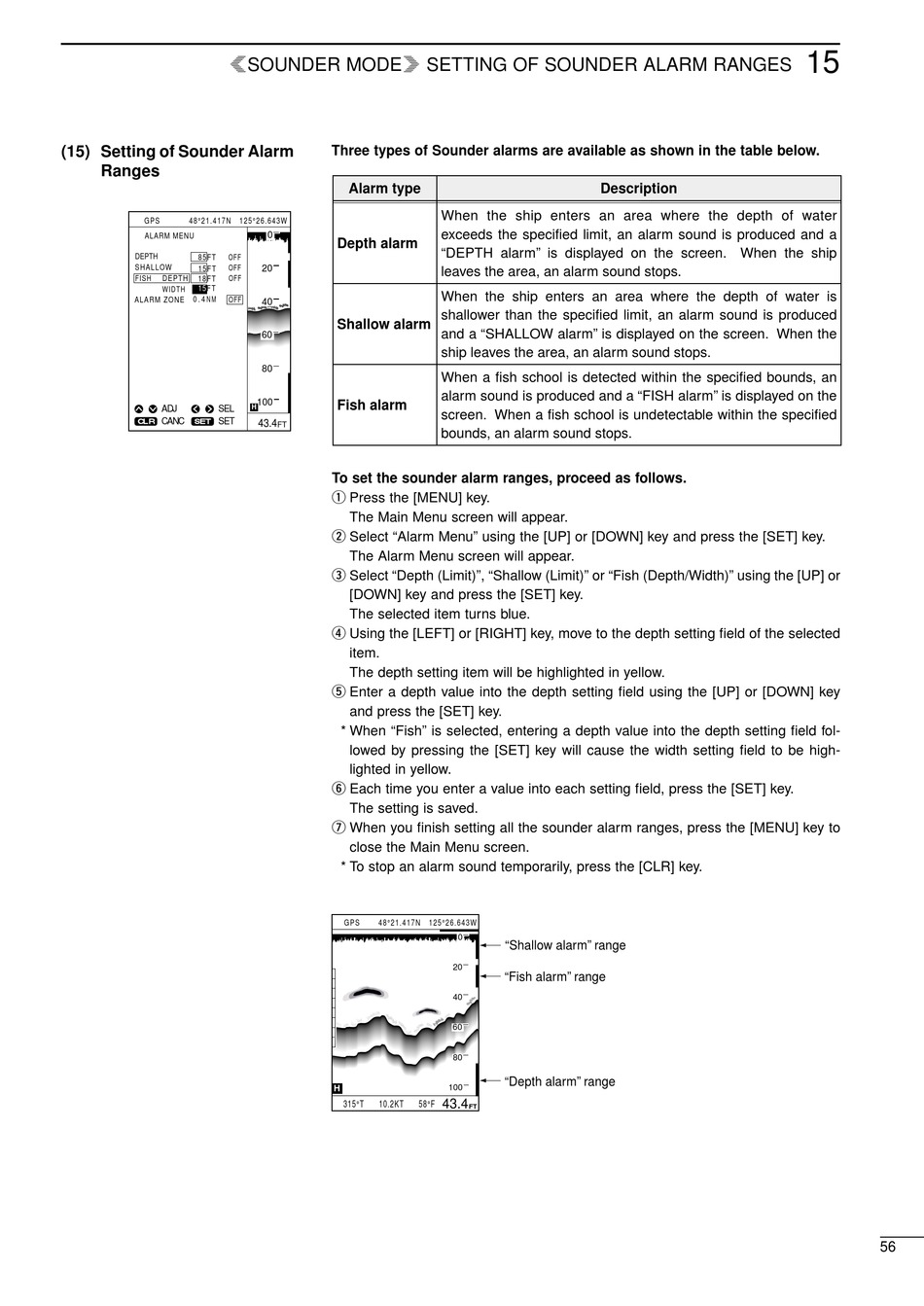

rSOUNDER MODEq SETTING OF SOUNDER ALARM RANGES
(15) Setting of Sounder Alarm
Ranges
GPS 48 21.417N 125 26.643W
ALARM MENU
DEPTH
85FT OFF
SHALLOW
OFF
15FT
OFF
FISH DEPTH 18FT
15FT
WIDTH
ALARM ZONE 0 . 4 N M
OFF
ADJ SEL
CANC SET
CLR SET
Three types of Sounder alarms are available as shown in the table below.
Alarm type
0
Depth alarm
20
40
Shallow alarm
60
80
100
Fish alarm
H
43.4
FT
To set the sounder alarm ranges, proceed as follows.
q Press the [MENU] key.
The Main Menu screen will appear.
w Select "Alarm Menu" using the [UP] or [DOWN] key and press the [SET] key.
The Alarm Menu screen will appear.
e Select "Depth (Limit)", "Shallow (Limit)" or "Fish (Depth/Width)" using the [UP] or
[DOWN] key and press the [SET] key.
The selected item turns blue.
r Using the [LEFT] or [RIGHT] key, move to the depth setting field of the selected
item.
The depth setting item will be highlighted in yellow.
t Enter a depth value into the depth setting field using the [UP] or [DOWN] key
and press the [SET] key.
* When "Fish" is selected, entering a depth value into the depth setting field fol-
lowed by pressing the [SET] key will cause the width setting field to be high-
lighted in yellow.
y Each time you enter a value into each setting field, press the [SET] key.
The setting is saved.
u When you finish setting all the sounder alarm ranges, press the [MENU] key to
close the Main Menu screen.
* To stop an alarm sound temporarily, press the [CLR] key.
