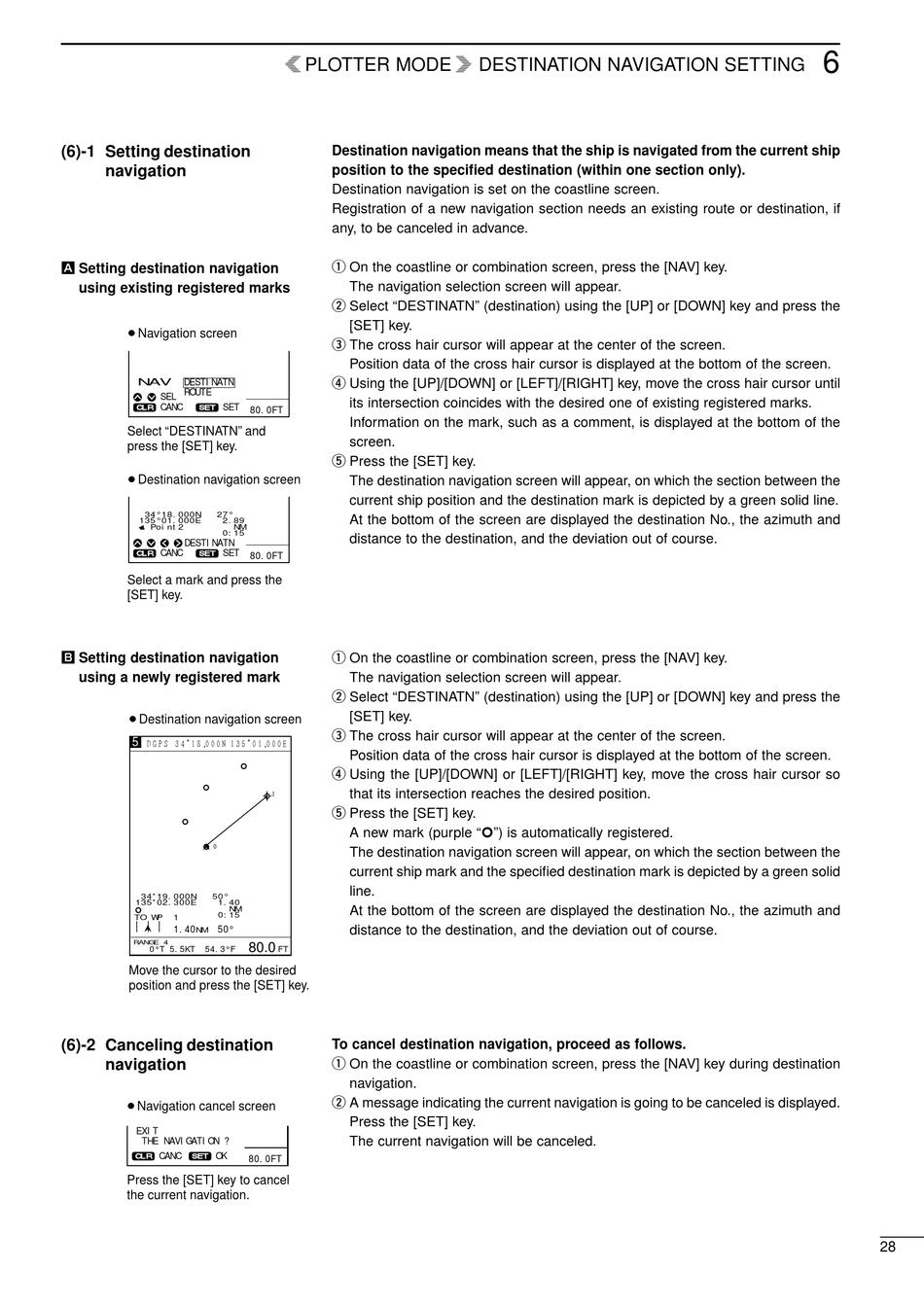

(6)-1 Setting destination
navigation
Å Setting destination navigation
using existing registered marks
¡Navigation screen
NAV DESTINATN
ROUTE
SEL
CANC SET
CLR SET
Select "DESTINATN" and
press the [SET] key.
¡Destination navigation screen
34°18.000N 27°
135°01.000E 2.89
Point2 NM
0:15
DESTINATN
CANC SET
CLR SET
Select a mark and press the
[SET] key.
ı Setting destination navigation
using a newly registered mark
¡Destination navigation screen
5
DGPS 34ﾟ18.000N 135ﾟ01.000E
0
34ﾟ19.000N 50°
135ﾟ02.300E 1.40
NM
0:15
TO WP 1
1.40 50°
NM
RANGE 4
0°T 5.5KT 54.3°F
Move the cursor to the desired
position and press the [SET] key.
(6)-2 Canceling destination
navigation
¡Navigation cancel screen
EXIT
THE NAVIGATION ?
CANC OK
CLR SET
Press the [SET] key to cancel
the current navigation.
r PLOTTER MODE q DESTINATION NAVIGATION SETTING
Destination navigation means that the ship is navigated from the current ship
position to the specified destination (within one section only).
Destination navigation is set on the coastline screen.
Registration of a new navigation section needs an existing route or destination, if
any, to be canceled in advance.
q On the coastline or combination screen, press the [NAV] key.
The navigation selection screen will appear.
w Select "DESTINATN" (destination) using the [UP] or [DOWN] key and press the
[SET] key.
e The cross hair cursor will appear at the center of the screen.
Position data of the cross hair cursor is displayed at the bottom of the screen.
r Using the [UP]/[DOWN] or [LEFT]/[RIGHT] key, move the cross hair cursor until
its intersection coincides with the desired one of existing registered marks.
80.0FT
Information on the mark, such as a comment, is displayed at the bottom of the
screen.
t Press the [SET] key.
The destination navigation screen will appear, on which the section between the
current ship position and the destination mark is depicted by a green solid line.
At the bottom of the screen are displayed the destination No., the azimuth and
distance to the destination, and the deviation out of course.
80.0FT
q On the coastline or combination screen, press the [NAV] key.
The navigation selection screen will appear.
w Select "DESTINATN" (destination) using the [UP] or [DOWN] key and press the
[SET] key.
e The cross hair cursor will appear at the center of the screen.
Position data of the cross hair cursor is displayed at the bottom of the screen.
r Using the [UP]/[DOWN] or [LEFT]/[RIGHT] key, move the cross hair cursor so
that its intersection reaches the desired position.
1
t Press the [SET] key.
A new mark (purple "$") is automatically registered.
The destination navigation screen will appear, on which the section between the
current ship mark and the specified destination mark is depicted by a green solid
line.
At the bottom of the screen are displayed the destination No., the azimuth and
distance to the destination, and the deviation out of course.
80.0
FT
To cancel destination navigation, proceed as follows.
q On the coastline or combination screen, press the [NAV] key during destination
navigation.
w A message indicating the current navigation is going to be canceled is displayed.
Press the [SET] key.
The current navigation will be canceled.
80.0FT
