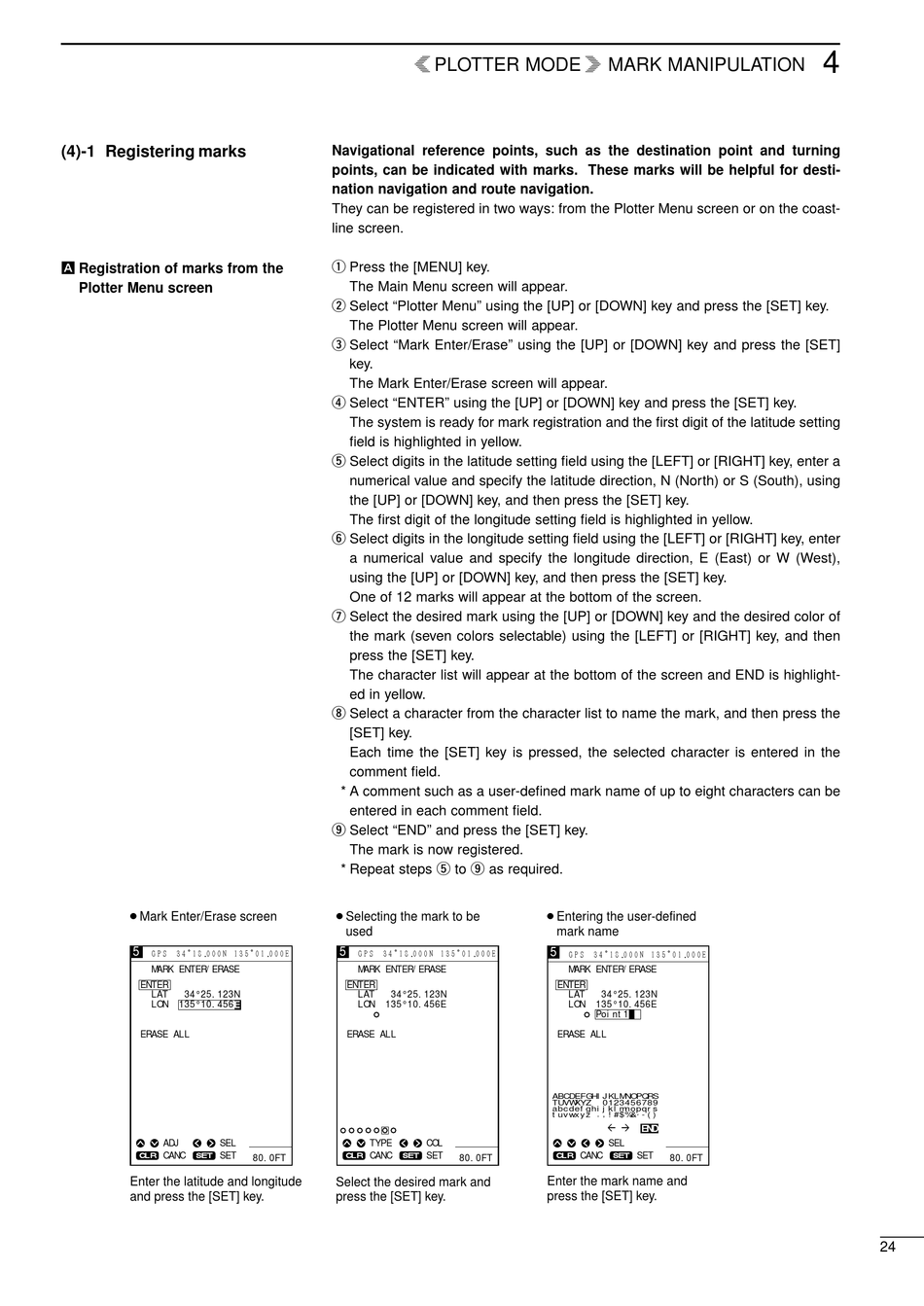

(4)-1 Registering marks

Å Registration of marks from the
Plotter Menu screen
¡Mark Enter/Erase screen
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
MARK ENTER/ERASE
ENTER
LAT 34°25.123N
LON 135°10.456E
ERASE ALL
ADJ SEL
CANC SET
CLR SET
Enter the latitude and longitude
and press the [SET] key.
r PLOTTER MODE q MARK MANIPULATION
Navigational reference points, such as the destination point and turning
points, can be indicated with marks. These marks will be helpful for desti-
nation navigation and route navigation.
They can be registered in two ways: from the Plotter Menu screen or on the coast-
line screen.
q Press the [MENU] key.
The Main Menu screen will appear.
w Select "Plotter Menu" using the [UP] or [DOWN] key and press the [SET] key.
The Plotter Menu screen will appear.
e Select "Mark Enter/Erase" using the [UP] or [DOWN] key and press the [SET]
key.
The Mark Enter/Erase screen will appear.
r Select "ENTER" using the [UP] or [DOWN] key and press the [SET] key.
The system is ready for mark registration and the first digit of the latitude setting
field is highlighted in yellow.
t Select digits in the latitude setting field using the [LEFT] or [RIGHT] key, enter a
numerical value and specify the latitude direction, N (North) or S (South), using
the [UP] or [DOWN] key, and then press the [SET] key.
The first digit of the longitude setting field is highlighted in yellow.
y Select digits in the longitude setting field using the [LEFT] or [RIGHT] key, enter
a numerical value and specify the longitude direction, E (East) or W (West),
using the [UP] or [DOWN] key, and then press the [SET] key.
One of 12 marks will appear at the bottom of the screen.
u Select the desired mark using the [UP] or [DOWN] key and the desired color of
the mark (seven colors selectable) using the [LEFT] or [RIGHT] key, and then
press the [SET] key.
The character list will appear at the bottom of the screen and END is highlight-
ed in yellow.
i Select a character from the character list to name the mark, and then press the
[SET] key.
Each time the [SET] key is pressed, the selected character is entered in the
comment field.
* A comment such as a user-defined mark name of up to eight characters can be
entered in each comment field.
o Select "END" and press the [SET] key.
The mark is now registered.
* Repeat steps t to o as required.
¡Selecting the mark to be
used
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
MARK ENTER/ERASE
ENTER
LAT 34°25.123N
LON 135°10.456E
ERASE ALL
TYPE COL
CANC SET
CLR SET
80.0FT
Select the desired mark and
press the [SET] key.
¡Entering the user-defined
mark name
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
MARK ENTER/ERASE
ENTER
LAT 34°25.123N
LON 135°10.456E
Point1
ERASE ALL
ABCDEFGHIJKLMNOPQRS
TUVWXYZ 0123456789
abcdefghijklmnopqrs
tuvwxyz ., !#$%& ´ -()
" #
SEL
CANC
CLR SET
80.0FT
Enter the mark name and
press the [SET] key.
END
SET
80.0FT
