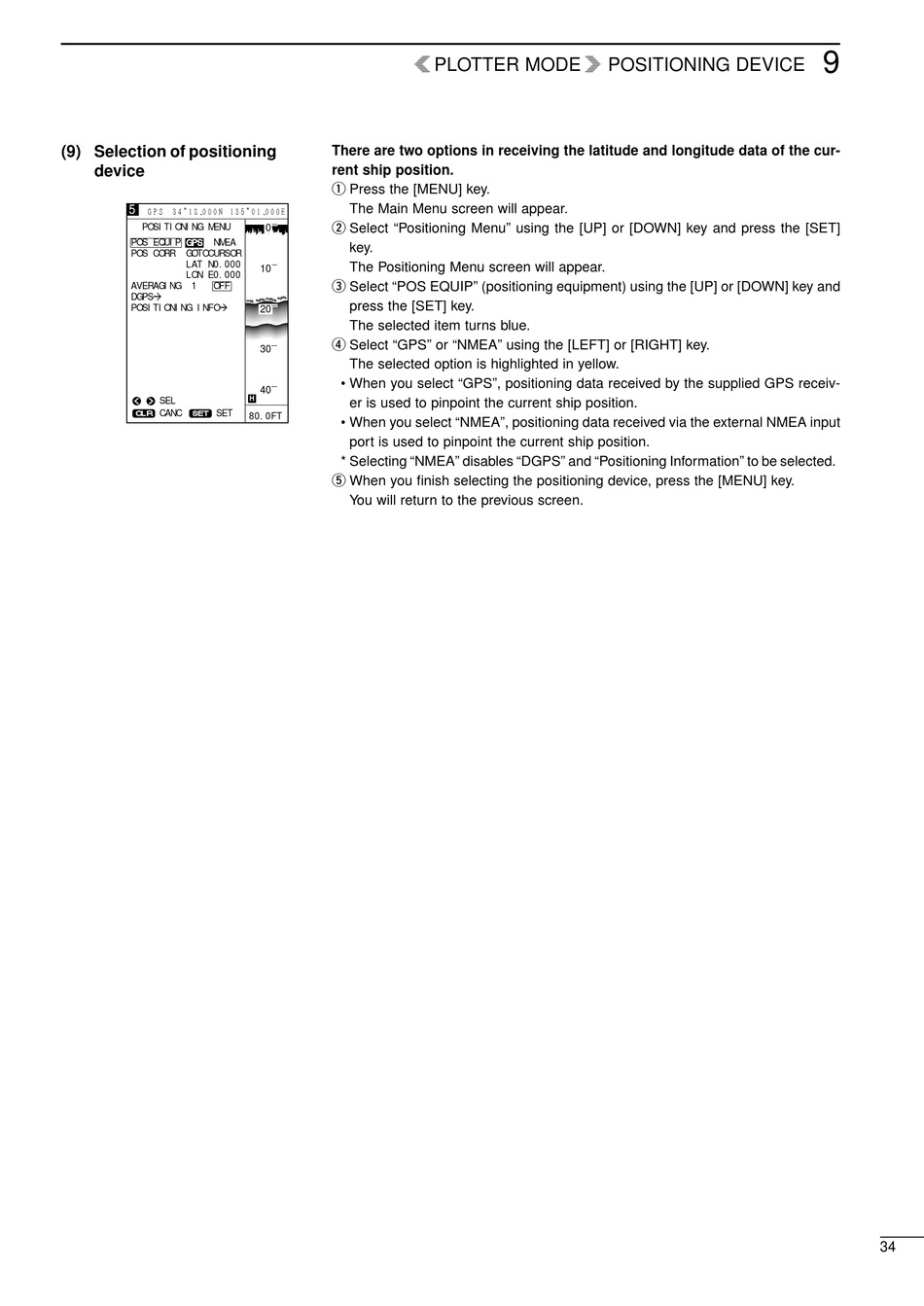

(9) Selection of positioning
device
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
POSITIONING MENU
POS EQUIP GPS NMEA
POS CORR GOTOCURSOR
LAT N0.000
LON E0.000
AVERAGING 1 OFF
DGPS#
POSITIONING INFO#
SEL
CANC SET
CLR SET
r PLOTTER MODE q POSITIONING DEVICE
There are two options in receiving the latitude and longitude data of the cur-
rent ship position.
q Press the [MENU] key.
The Main Menu screen will appear.
w Select "Positioning Menu" using the [UP] or [DOWN] key and press the [SET]
0
key.
The Positioning Menu screen will appear.
10
e Select "POS EQUIP" (positioning equipment) using the [UP] or [DOWN] key and
press the [SET] key.
20
The selected item turns blue.
r Select "GPS" or "NMEA" using the [LEFT] or [RIGHT] key.
30
The selected option is highlighted in yellow.
• When you select "GPS", positioning data received by the supplied GPS receiv-
40
H
er is used to pinpoint the current ship position.
80.0FT
• When you select "NMEA", positioning data received via the external NMEA input
port is used to pinpoint the current ship position.
* Selecting "NMEA" disables "DGPS" and "Positioning Information" to be selected.
t When you finish selecting the positioning device, press the [MENU] key.
You will return to the previous screen.
9
34
