Icom IC-M1V Instruction Manual page 25

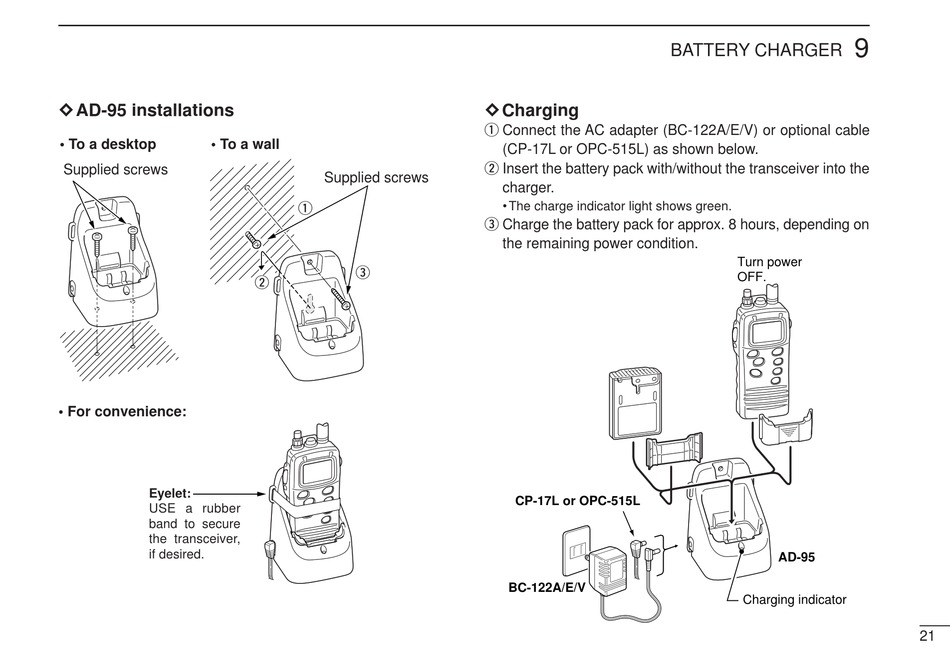

× AD-95 installations
• To a desktop • To a wall
Supplied screws
• For convenience:
Eyelet:
USE a rubber
band to secure
the transceiver,
if desired.
Supplied screws
q
e
w
× Charging
q Connect the AC adapter (BC-122A/E/V) or optional cable
(CP-17L or OPC-515L) as shown below.
w Insert the battery pack with/without the transceiver into the
charger.
• The charge indicator light shows green.
e Charge the battery pack for approx. 8 hours, depending on
the remaining power condition.
CP-17L or OPC-515L
BC-122A/E/V
BATTERY CHARGER
Turn power
OFF.
AD-95
Charging indicator
9
21
