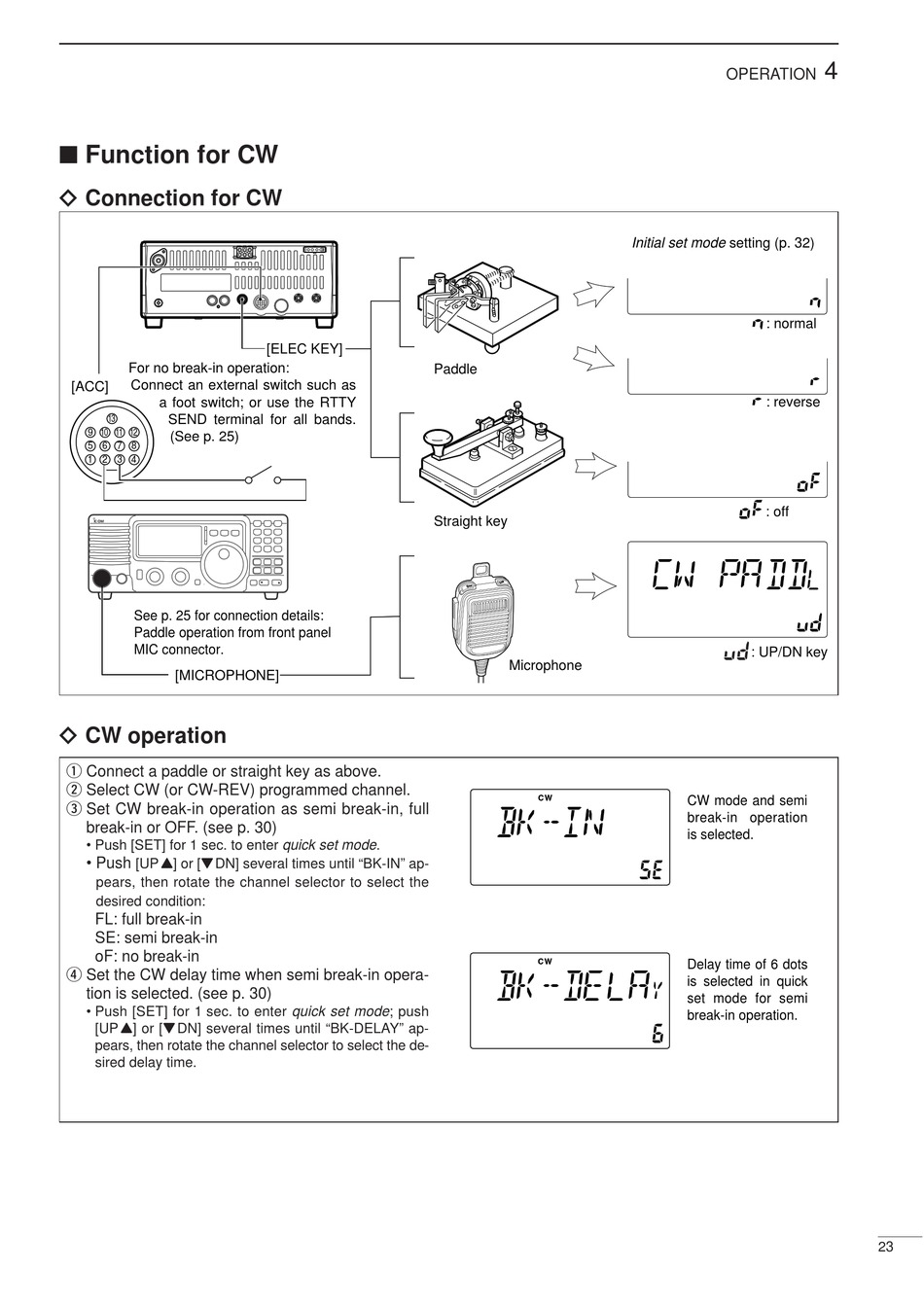

Function for CW
ï Connection for CW
For no break-in operation:
Connect an external switch such as
[ACC]
a foot switch; or use the RTTY
SEND terminal for all bands.
13
9 10 11 12
(See p. 25)
5 6 7 8
1 2 3 4
See p. 25 for connection details:
Paddle operation from front panel
MIC connector.
[MICROPHONE]
ï CW operation
q Connect a paddle or straight key as above.
w Select CW (or CW-REV) programmed channel.
e Set CW break-in operation as semi break-in, full
break-in or OFF. (see p. 30)
• Push [SET] for 1 sec. to enter quick set mode .
• Push [UP Y] or [Z DN] several times until "BK-IN" ap-
pears, then rotate the channel selector to select the
desired condition:
FL: full break-in
SE: semi break-in
oF: no break-in
r Set the CW delay time when semi break-in opera-
tion is selected. (see p. 30)
• Push [SET] for 1 sec. to enter quick set mode ; push
[UP Y] or [Z DN] several times until "BK-DELAY" ap-
pears, then rotate the channel selector to select the de-
sired delay time.
13
9 10 11 12
5 6 7 8
1 2 3 4
[ELEC KEY]
Paddle
Straight key
Microphone
OPERATION
Initial set mode setting (p. 32)
: normal
: reverse
: off
: UP/DN key
CW mode and semi
break-in operation
is selected.
Delay time of 6 dots
is selected in quick
set mode for semi
break-in operation.
