Installation & Operation Manual
Self-Generating Steam Jacketed
EC-6TW-2, EC-10TW-2 and EC-12TW-2
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury
or death. Read the installation, operating and maintenance instructions thoroughly before installing or
M
R
ANUAL 10294
EV 1 (02/22)
$21.00

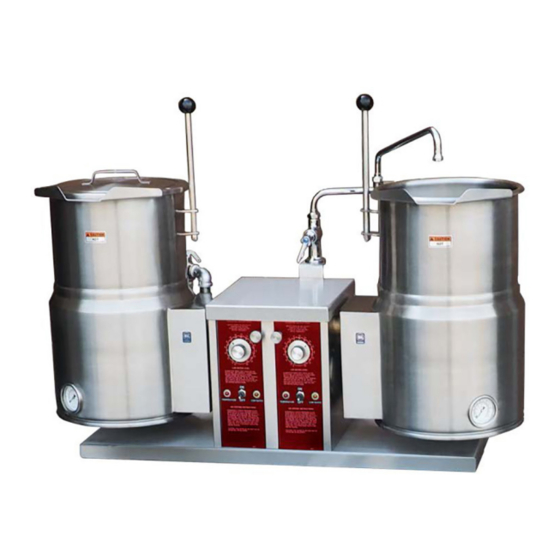

Counter Tilting Kettle
Model EC-10TW-2
servicing this equipment.
CROWN FOOD SERVICE EQUIPMENT
70 Oakdale Road, Downsview (Toronto) Ontario, Canada, M3N 1V9
Telephone: 919-762-1000
WARNING
A Middleby Company
www.crownsteamgroup.com
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this
manual for the life of the equipment:
Model #: ___________________________
Serial #: ___________________________
Date Purchased: _____________________
Self-Generating Steam Jacketed
Counter Tilting Kettle
M
S
ANUAL
ECTION
CO
