ACL875SU
Installation Sheet
EN
Surface Mount Standalone Keypad

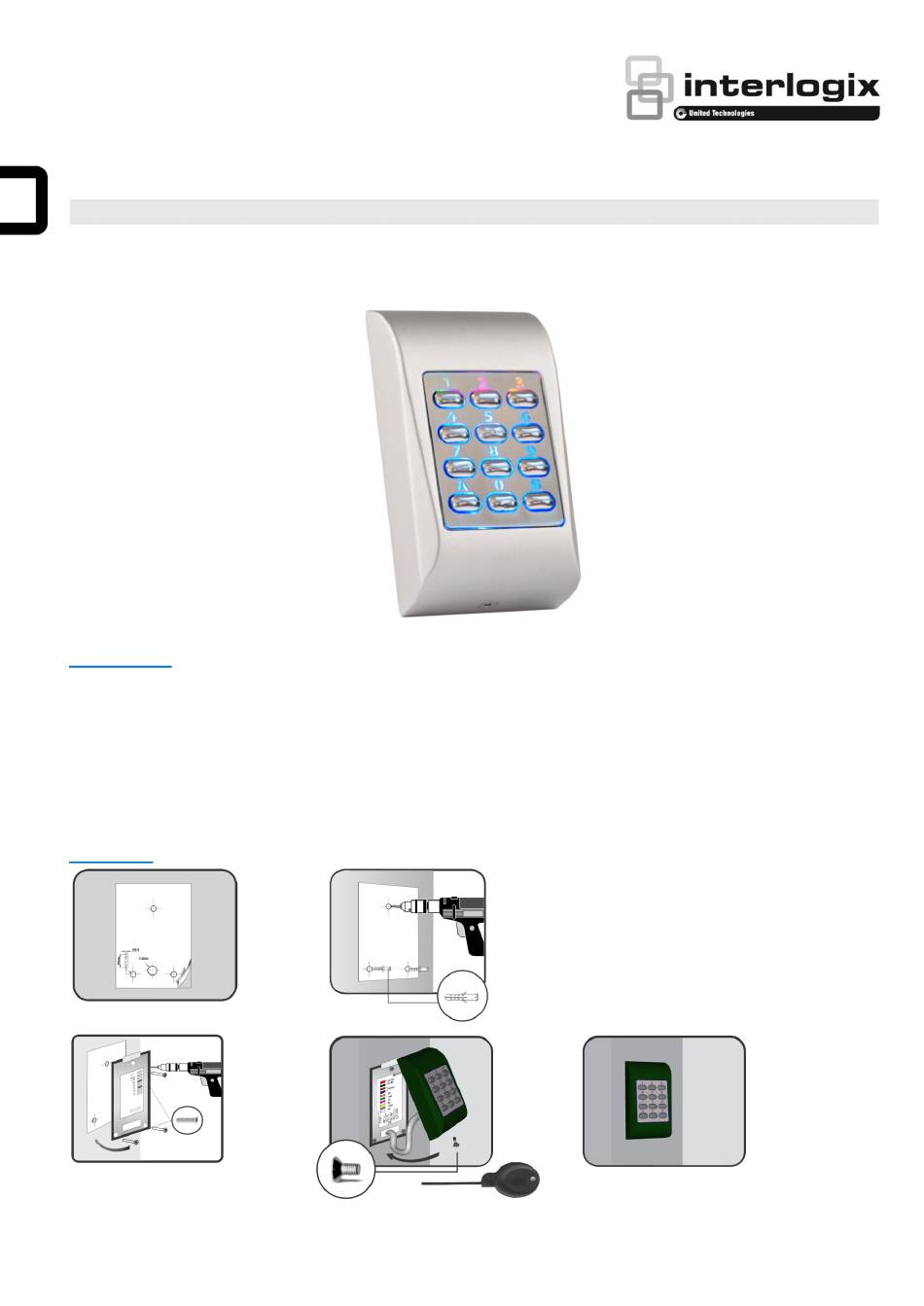

Figure 1: Angled front view
Description
The ACL875SU is a standalone digital keypad for access control applications with backlit keys, 99 user codes, 2
outputs (relay and transistor) and 1 push button input. These keypads are available in three different color finishes.
Authorized users can be assigned specific codes for use in access control applications, electrical switching and
arming/disarming alarm systems. The users can be assigned to activate the first, the second or both outputs. There is
a 30 seconds lockout after 8 successive invalid PIN codes.
The tamper switch output can trigger the alarm system, if an attempt is made to open or remove the unit from the wall.
Mounting
Figure 2: Mounting instructions
© 2017 UTC Fire & Security. All rights reserved.
1 / 4
2017-10-13
