- Page 2 Step 1: Check Contents & Installation Requirements Step 2: Physical Description Step 3: Hardware Installation Step 4: Run the IP Setup Program Step 5: Viewing & Tips...

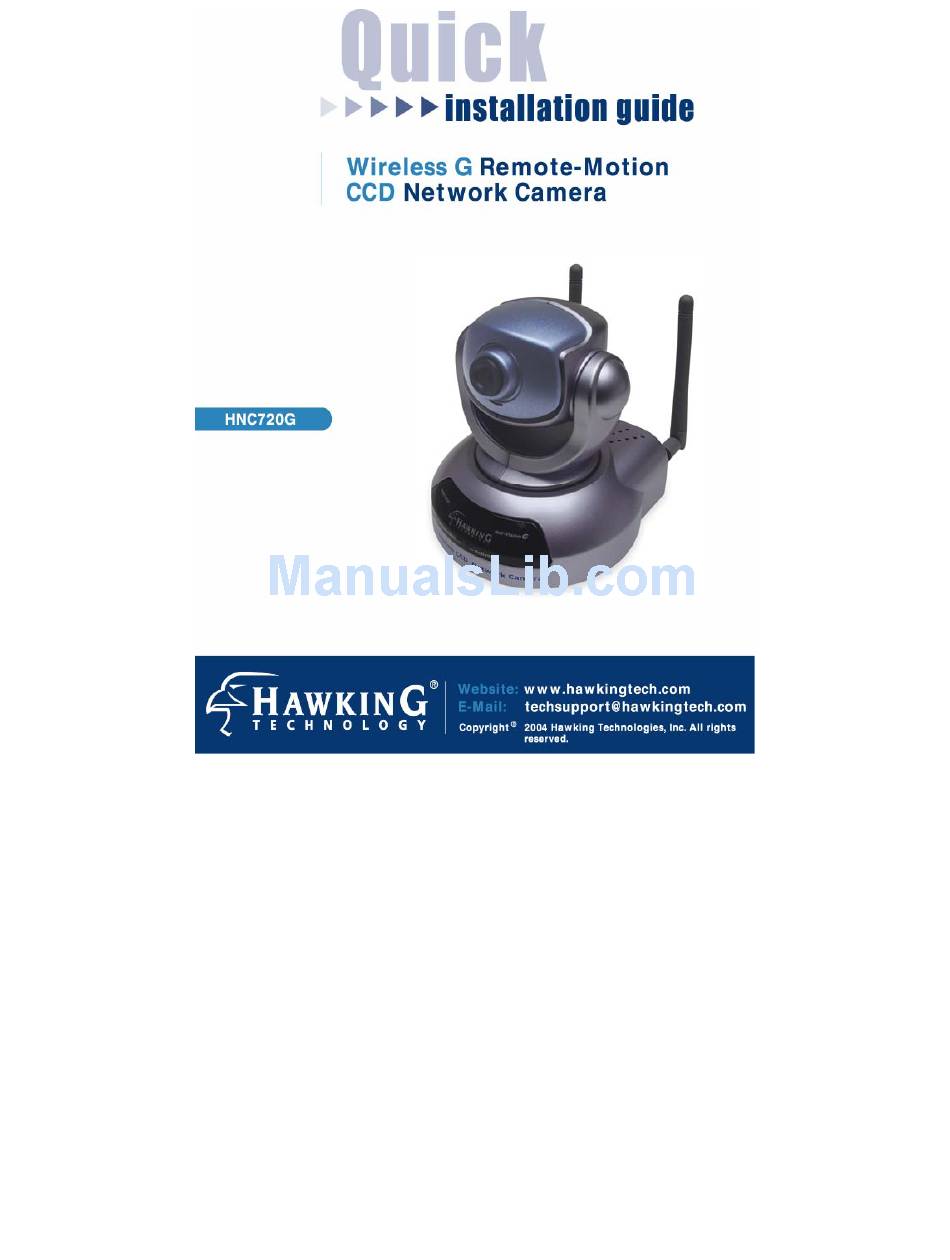

- Page 3 Congratulations on the purchase of your new Hawking Net-Vision HNC720G Wireless G Remote-Motion CCD Network Camera. HNC720G is a high performance standalone camera system that provides an ideal solution for remote monitoring, surveillance, or sending live video over the Internet. The camera offers a broad array of applications and can be used to monitor various critical locations such as homes, offices, banks, schools, childcare centers, hospitals, and other industrial and public areas.
- Page 4 Two Wireless Antennas One Quick Installation Guide One Camera Stand Kit One A/V Cable One Power Adapter One Remote Controller...
- Page 5 What You Will Need to Get Started • Wired Router/Switch/Hub (or Wireless 802.11b/g Router [most wireless routers have wired LAN ports as well]) • CD-ROM Drive • Web Browser System Requirements Operating System • Microsoft Windows 98SE/ME/2000/XP Browser • Internet Explorer 5.x or above...
-
Page 6: Installation Diagram
Installation Diagram... - Page 7 Please review the cautionary instructions below before installing the HNC720G: • Keep the network camera away from water. If the network camera is wet, power it off immediately. (If such an event should occur, ple ase contact your dealer.) •...
- Page 8 • Keep the network camera away from direct sunlight. • Do not place the network camera in humid environments. • Do not place the network camera on unsteady surfaces. • During thunder/lightning storms, be cautious of electrical surges.
- Page 9 • Do not disassemble the network camera. • Do not drop the network camera. • Do not manually pan and tilt the network camera while the power is turned on. • Do not insert any foreign objects into the camera.
-
Page 10: Front Panel
Front Panel Status LEDs Rear Panel External I/O External mic. Pwr. Input LAN port Lens and manual focus ring Microphone Bottom Panel Antennas A/V Out Note: For reference, please locate the series number (same as MAC address) on the bottom panel of the unit. - Page 11 If you choose to connect any external devices such as sensors, alarms, etc., you can connect them to the I/O terminal block. (Please refer to the user’s manual for I/O voltages.) Locate the network cable connector (RJ- 45 port) on the left-hand side of the rear panel of the camera.
- Page 12 Please Note: You can attach the included wireless antennas at any time before you begin using your network camera wirelessly.
- Page 13 This code is “HVVT” and can be found on either the right or left panel of the box, or on the label on the bottom of the camera. HNC720G Installation & Utilities CD into series...
- Page 14 After completing the search, the main IP Setup window will appear. The IP Setup program should have returned an IP address for your network camera (under the “Current IP Address” heading) that is consistent with your existing LAN settings (as long as you have a DHCP server on your network; most networks do).
- Page 15 Click on “Link to selected device” to connect the camera whose “Series Number” you highlighted in Step 3 to Internet Explorer. This will open the camera’s webpage, from which you can further configure and control the device.
- Page 16 Note It is highly recommended that you now go to the network camera’s webpage and ensure that the device has been configured with the appropriate network settings: Once the IP Setup program returns a valid IP address, please go to the network camera’s homepage by either clicking on “Link to Selected Device”...
- Page 17 For Wireless Configuration: To configure your network camera for wireless use, please either click on “Link to Selected Device” in the IP Setup window (see previous page), or type the network camera’s IP address in your web browser’s “Address” bar. (The network camera’s IP address can also be found in the IP Setup window under the heading “Current IP Address.) Once you are on the network camera’s homepage, click on “Configuration”.
- Page 18 unplugging the power adapter. After about five seconds, please plug the power adapter back into the socket. But this time, do not plug the Ethernet cable back in. You should now be able to access the network camera wirelessly. Please access the camera’s webpage to ensure that you are receiving streaming video via a wireless connection.
- Page 19 Example on How to Set the IP Address Manually The example shown here illustrates how to manually set an IP address using the Windows XP operating system. However, the procedure is similar for all other versions of Windows. When setting an IP address, you must make sure that the address you specify has the same first three octets (or segments) as the other devices on your LAN.
- Page 20 Click on Start in the bottom left corner of your screen. Then click Network Places.
- Page 21 Click on View Network Connections.
- Page 22 In the Network Connections window, you should see an icon titled Local Area Connection (or something similar). You can access this icon in two ways: a. by clicking or double-clicking on it, or b. by right-clicking then clicking on Status from the resulting menu...
- Page 23 A window with the title Local Area Connection Status (or something similar) will appear. Click on the Support tab. Under the heading Address Type, you will find an IP Address line Default Gateway line. These two lines will have IP addresses with the first three octets in common.
- Page 24 • You can access and view your network camera’s images via a web browser using two methods: In your web browser’s address bar, type in “http://IPAddressofCamera”. In the IP Setup window, click on Link to selected device. • You can also use the included software application to view, record, and playback the network camera’s images.
