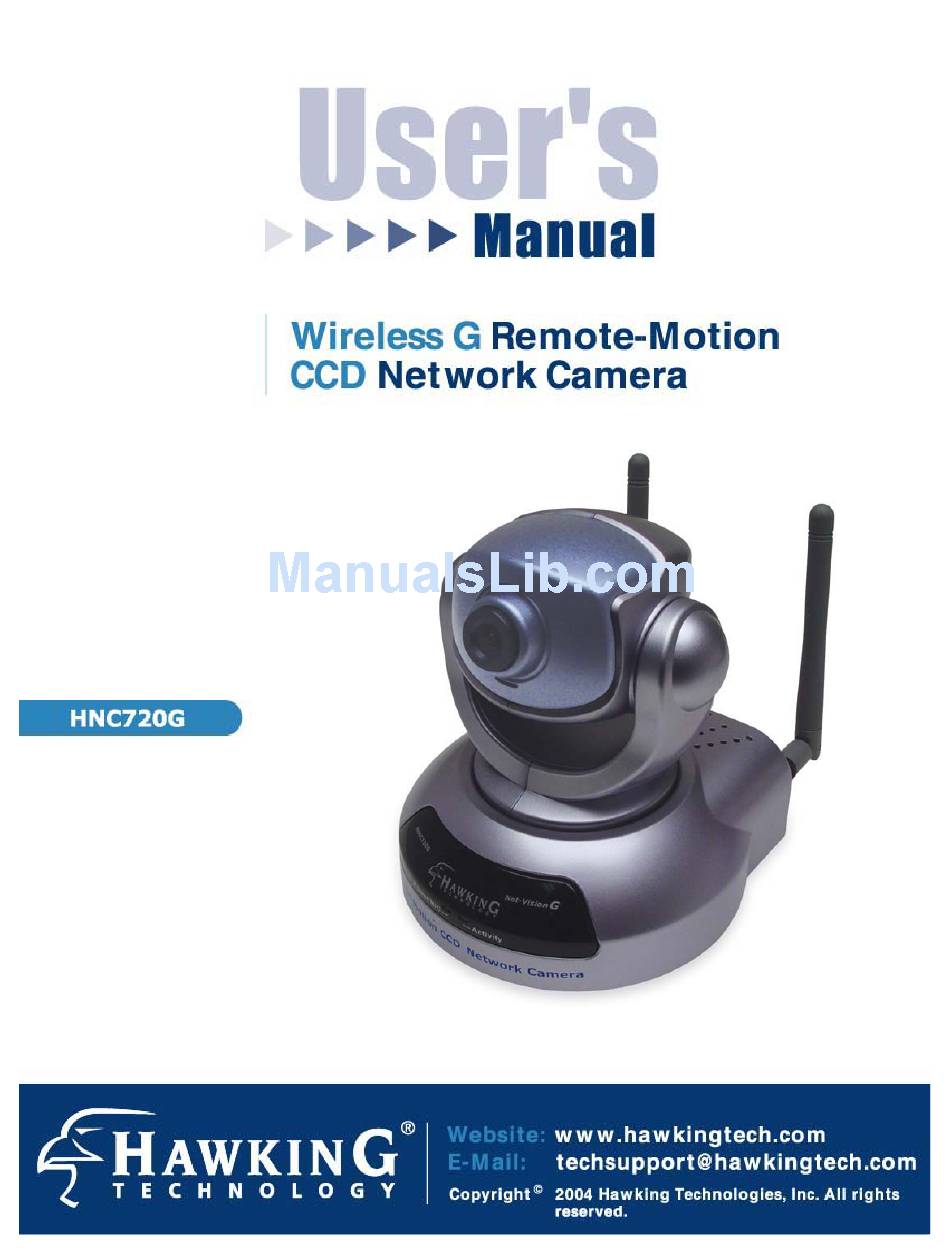

Hawking HNC720G User Manual

Wireless g remote-motion ccd network camera
Hide thumbs Also See for HNC720G:
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading

Related Manuals for Hawking HNC720G

Summary of Contents for Hawking HNC720G

  • Page 2 Return Authorization number clearly on the outside of the package and include your original proof of purchase. IN NO EVENT SHALL HAWKING TECHNOLOGY’S LIABILTY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE OR ITS DOCUMENTATION.

  • Page 3: Table Of Contents

    Before Using This Product Package Contents Installation Hardware Installation Software Installation Initial Access to the Camera Check Network Settings Add a Password for Security How to Use This Camera Authentication Installing the Plug-in Primary User’s Capabilities Main Screen with Camera View Client Settings Administrator’s Capabilities Configure for Optimal Performance...
  • Page 4 Appendix A. Troubleshooting B. Frequently Asked Questions (FAQ) C. URL Commands for the Network Camera D. How to View Your Camera via the Internet E. Technical Specifications...

  • Page 5: Before Using This Product

    The HNC720G is a network device and those who have a basic understanding of networks and network devices should find this device to be easy to install, use, and manage. If a system error occurs and the device does not recover as a result of configuration, please refer to the "Troubleshooting”...
  • Page 6 Unpack and Inspect Open the package and carefully remove all items. The complete HNC720G package consists of: One Net-Vision HNC720G Wireless G Remote-Motion CCD Network Camera One CD with software and installation utilities One quick installation guide One DC power adapter...

  • Page 7: Package Contents

    Hardware Installation Upon powering up, the device runs through a self-test procedure and the front LEDs will blink between green and red a few times. If the self-test passes, the LEDs will shut off and the Network Camera will be on stand-by and ready for software installation.
  • Page 8 The Network Camera provides a general I/O terminal block with one digital input and one relay switch for device control. Pin 1 and Pin 2 can be connected to an external sensor device and the state of voltage can be monitored from the initial state 'LOW'.

  • Page 9: Software Installation

    Software Installation In this manual, "User" refers to anyone who has access to the network camera, and "Administrator" refers to anyone who has access rights to configure the network camera and grant user access to it. At the end of the hardware installation, the Administrator must insert the CD included with the package into the CD-ROM drive of the PC.
  • Page 10 Click on IP Setup to execute the installation program. The IP Setup program will search for similar cameras on your local area network. A “similar” camera will have the same “HVVT” code at the beginning of its serial number. (The serial number is different from the series number/MAC address.) After completing the search, the main IP Setup window will appear.
  • Page 11 The UPnP function will always assign an IP address for the Network Camera. If, however, the IP Address returned by the IP Setup program is not consistent with your LAN settings or you want to change the IP address manually, you can go to the bottom half of the window, and assign an IP address in the IP address bar.

  • Page 12: Check Network Settings

    Check Network Settings (even if the device is already connected) Although the network camera may already be connected following the software installation procedure, administrators should ensure that the network settings in the configuration page are correct, including the subnet mask, IP address of the gateway, and DNS.

  • Page 13: Authentication

    Authentication After opening the Web browser and typing in the network camera’s IP address, a dialogue window may appear, requesting a username and password, unless the administrator has not saved a password. Upon successful authentication, the device’s main page will be displayed. In the figure below, the foreground is the login window and the background shows the message when authentication fails.

  • Page 14: Installing The Plug-In

    Installing the Plug-in In Windows, during the initial access to the network camera, the web browser may prompt you for permission to install a new plug-in for the network camera. Whether or not you are prompted to install the plug-in will depend on the Internet security settings of your PC or notebook.

  • Page 15: Primary User's Capabilities

    Primary User’s Capabilities Main Screen with Camera View The main page layout has three parts: Configuration functions: The camera can be configured via the user interfaces that can be obtained by clicking on the buttons in the red box on the bottom left-hand side of the figure below. Camera View: Displays what the camera sees (red box in the center of the figure below).
  • Page 16 Configuration Controls Digital Output Click on the “On” or “Off” buttons to enable or disable the digital output. Snapshot This button provides users with an easy way of capturing a single still image of the video from the Network Camera. Client Settings Clicking on this button links you to the client settings pages.
  • Page 17 Tilt Speed This button sets the speed of the “Up” and “Down” controls. Auto Pan (or Pan) This button commands the camera to automatically pan from the current position to the left-most and then to the right- most positions. After panning, the camera returns to the original position. Auto Patrol (or Patrol) This button commands the camera to automatically patrol between the preset positions on the Patrol List, which can be modified on the “Camera control page”.

  • Page 18: Client Settings

    Client Settings At the initial access to the “Connection type” page in Windows, the web browser will ask for a new plug-in installation. This plug-in has been registered for certification and can be used to change the parameters at the client’s site. The user should click on to install the plug-in.
  • Page 19 The HTTP protocol must be selected if the network is protected by a firewall and it only allows HTTP Port (80) to be opened. In this mode, audio will not be sent and only video is operational. If there are no special requirements, the UDP protocol is recommended.

  • Page 20: Administrator's Capabilities

    Administrator’s Capabilities Configure for Optimal Performance “Optimal performance” means obtaining the fastest image refresh rate and highest video quality, while utilizing the lowest possible network bandwidth. Three factors in the “Audio/Video” configuration page will control the performance: a. Maximum frame rate, b. Fixed bit rate, and c. Fixed quality. For Best Real-time Video Images To achieve a good real-time visual effect, the network bandwidth should be large enough to allow a transmission rate of greater than 20 image frames per second.

  • Page 21: Opening Accounts For New Users

    frame rate to 25 fps or 30 fps. If you are shooting fast-moving images, you may want to slow the maximum frame rate down to 20 fps in order to lower the rate of data transmission. This allows for better video quality and the human eye cannot easily detect the differences between those of 20, 25, or 30 frames per second.

  • Page 22: Building A Multimedia Web Attraction Site

    Building a Multimedia Web Attraction Site Demo on multiple sites – mid-scale service The network camera can allow for ten visitors to view it online simultaneously. After installation, focus the network camera on any object you choose, and tell the visitors to type in the IP address. Caution: You may want to maintain your visitor’s list in the “Security”...
  • Page 23 Click on “Configuration” on the homepage. Click on “Security” in the left column. Go to the bottom of the page and check “Allow more viewers with snapshot mode”. Set the snapshot interval to refresh the still image automatically. The longer the snapshot interval, the better the snapshot mode works for multiple viewers.

  • Page 24: Building A Security Application

    Select the day or days of the week in the “Weekly schedule” that you want to upload the pictures. Select “Sequential operation” and set the interval. Unselect "FTP put snapshots with date and time suffix" as the upload method and click on "Save". The image file uploaded to the web space is named “video.jpg”.
  • Page 25 Click on “Configuration” on the homepage. Click on “Application” in the left column. Check the weekdays as desired and give the period from "Snapshots begin" to "Snapshots end" to monitor the triggering conditions everyday. Check the “Event operation” box. The triggering condition can be set to detected motion or the status of the attached device.

  • Page 26: Software Revision Upgrade

    Clicking on “Save” enables the activity display (the lined column to the left of the “New” button). Green means the motion in the window is under the watermark (threshold) set by the Administrator and red means it is over the watermark (threshold).

  • Page 27: Definitions In Configuration

    Definitions in Configuration Only the Administrator can access system configuration. Each category in the left column will be explained in the following pages. The bold texts are the specific words/phrases on the Option pages. The Administrator may type the URL above the figure to directly enter the frame page for configuration. To set certain options through the URL, read the reference appendix for details.

  • Page 28: System Parameters

    System Parameters Host name: The text displays the title at the top of the main page. Turn off the LED indicator: Check this option to shut off the LEDs. This can prevent the camera from being noticed. Keep current date and time: Click on this to keep the network camera’s current date and time. An internal real-time clock maintains the date and time even when the power of the system is turned off.

  • Page 29: User Group Administration

    User Group Administration Root password: Change the Administrator’s password by typing in the new password identically in both text boxes. The typed entries will be displayed as asterisks for security purposes. After clicking , the web browser will ask the Administrator for the new password for access.

  • Page 30: Network Settings (Including: Wireless Configuration)

    Network settings Any changes made on this page will restart the system in order to validate the changes. Make sure every field is entered correctly before clicking on Reset IP address at next boot: The default status is checked to avoid erroneous entries during installation. Having to perform software installation whenever the network camera starts can be tedious.
  • Page 31 “default”. Note: The maximum length of an SSID is 32 single-byte characters and it cannot include the following characters: “, <, > or the space character. Wireless mode: Click on the pull-down menu to select from the following options: Infrastructure: Makes the Network Camera connect to the WLAN via an Access Point. (This is the default setting.) Ad-Hoc: Makes the Network Camera connect directly to a host equipped with a wireless adapter in a peer-to-peer environment.

  • Page 32: Mail & Ftp

    SMTP SMTP (mail) server 1: The domain name or IP address of the external email server. Recipient email address 1: The email address of the recipients for snapshots or log files. Multiple recipients must be separated by semicolons (i.e., ‘;’). SMTP (mail) server 2: The domain name or IP address of another email server once the previous server is unreachable.

  • Page 34: Audio/Video Codec Parameters

    Audio Parameters Mute: Checking this option will cut off the network camera’s audio. Therefore, anyone who connects to the network camera will only be able to view video. No audio will be available on any client side. Improve audio quality in low bandwidth environment: Checking this option will make the network camera reboot to make audio channel communication more efficient.

  • Page 36: Motion Detection

    Motion Detection Enable motion detection: Check this option to turn on motion detection. Click on this button to add a new window. At most, three windows can exist simultaneously. Use the mouse to click, hold, and drag the window frame to resize it, or the title bar to move it. Clicking on the ‘x’ at the upper right-hand corner of the window will delete the window.

  • Page 37: Application Setup

    Application Setup Weekly Schedule Sun-Sat: Select the days of the week during which you would like to utilize the operations below. Snapshots begin at: Set the time to start operations. Snapshots stop at: Set the time to stop operations. Setting identical begin and stop times means 24-hour operation. Event operation Delay _ second(s) before detecting next event: Set the time delay before restarting, to check on the triggering condition when the current condition is triggered.

  • Page 39: Camera Control

    Camera Control On the Camera Control page, there are two main function control areas: Camera control area The pan and tilt functions can be controlled with these buttons. The “Left”, “Right”, “Up”, and “Down” buttons aim the camera accordingly. The “Home” button aims the camera to the center. Pan speed: This controls the speed of the camera’s horizontal movement.

  • Page 40: Upnp And Ddns Settings

    UPnP and DDNS Settings Enable DDNS: This option turns on the DDNS function. Provider: The provider list contains four hosts that provide DDNS services. Please connect to the service provider’s website to find out the service charges. Host name: If the User wants to use a DDNS service, this field must be filled. Please input the hostname that is registered in the DDNS server.

  • Page 42: Remote Controller

    Remote Controller The network camera comes with a remote controller to command its pan/tilt and other functions. The direction control area provides the same functions as you find on the camera’s homepage. The Pan/Patrol/Stop functions are also the same as on the homepage. Auto Patrol: This button commands the camera to patrol between the preset positions on the patrol list that was set on the “Camera control page”.

  • Page 43: Factory Default

    Factory default “Factory default” Click on this link on the configuration page to restore factory default settings. Any changes made so far will be lost and the system will be reset to the initial factory settings. After clicking on the “Restore” button and confirming, the system will restart and require the installer program to set up the network again.

  • Page 44: Troubleshooting

    A. Troubleshooting Status LED After powering up, the network camera performs a self-diagnostic to detect any hardware defects. The following table lists the LED patterns in general. In case of any fatal errors, the LED will blink in a pattern other than those below. Condition During self-diagnostic after power on Ethernet signal is lost...

  • Page 45: Frequently Asked Questions (Faq)

    B. Frequently Asked Questions (FAQ) Q What if I forget my password? A After the Administrator's password has been assigned, all access to the network camera needs authentication. If you are one of the managed users, you have to ask the Administrator for the password. If you are the Administrator, there is no way to recover the root password except by restoring the factory default settings.
  • Page 46 Q I cannot hear any sound while watching. A If there is "V_ONLY" shown above the image, click on connection type to uncheck "Disable audio". If there is "V" shown instead of "AV", the sound card in your PC may not have been properly installed. If "AV" is shown, check the audio source of the network camera, and make sure of whether you are using an internal or external microphone.

  • Page 47: Url Commands For The Network Camera

    C. URL commands of the Network Camera For some customers who already have their own web site or web control application, the network camera can be easily integrated through convenient URLs. This section lists the commands in URL format corresponding to the basic functions of the network camera.
  • Page 48 Page URL The configuration page has a frame layout including an option list frame and an option page frame. Referenced URLs, except for the configuration page, direct users to the option page frame only. Some pages, such as image quality settings and preset settings, are opened in new windows for preview.
  • Page 49 General format of command URL Every configuration can be set through URL with the POST method, by the Administrator only. <general format> URL[?[name=value][&name=value]……] <method> POST <authorized user> root System configuration URL URL: /setup/system.cgi NAME VALUE host <text string shorter than 15 characters> system name ledoff method keep...
  • Page 50 Security configuration URL URL: /setup/security.cgi NAME VALUE rootpass <text string shorter than 15 characters> change root password username <text string shorter than 15 characters> add new user userpass <text string shorter than 15 characters> new user's password deluser <text string shorter than 15 characters> existing user name action <blank>...
  • Page 51 http <number less than 65535> cport <number less than 65535> vport <number less than 65535> aport <number less than 65535> band ssid <text string shorter than 33 characters> WLAN SSID chan 1 - 11 1 - 11 1 - 13 10, 11 10 - 13 1 - 14...
  • Page 52 auth auto shared open klen kform dkey 1 ~ 4 netkey1 hexadecimal string (00 ~ FF) netkey2 hexadecimal string (00 ~ FF) netkey3 hexadecimal string (00 ~ FF) netkey4 hexadecimal string (00 ~ FF) auto authentication (most strict) shared-key authentication open-key authentication 64 bits key length 128 bits key length...
  • Page 53 DDNS & UPnP configuration URL URL: /setup/ddns.cgi NAME VALUE enddns anything provider host <the hostname> usermail username or mail passkey password or key enupnp anything DESCRIPTION Enable DDNS function. This option must be resent whenever the URL is called, if DDNS function is to be enabled. DynDDNS.org(Dynamic) DynDDNS.org(Custom) TZO.com...
  • Page 54 Mail&FTP Configuration URL URL: /setup/mailftp.cgi NAME VALUE smtp1 <domain name or IP address> mailto1 <string shorter than 80 characters> mailname1 <max 14 characters> mailpass1 <max 14 characters> smtp2 <domain name or IP address> mailto2 <text string shorter than 80 characters> mail recipient address mailname2 <max 14 characters>...
  • Page 55 Audio/Video configuration URL URL: /setup/video.cgi NAME VALUE text <text string shorter than 15 characters> enclosed caption size color <other than B/W> quality fixb <other than fixb> quan bitrate 64000 128000 256000 384000 512000 768000 1000000 1200000 frame flip DESCRIPTION half half x 2 normal normal x 2...
  • Page 56 mirror mute anything improve anything mphone internal external Camera control URL URL: /setup/ptcamera.cgi NAME VALUE addpos <the position name> delpos <the position name> selloc <index value, 0~19> irenable speedpan -5~5 speedtilt -5~5 speedapp Image quality configuration URL URL: /setup/image.cgi NAME VALUE brightness <-5 ~ 5>...
  • Page 57 Application configuration URL URL: /setup/app.cgi NAME VALUE emode <not required> smode <not required> smethod mail suffix <not required> delay <integer> inter <integer> dihigh < not required > dilow < not required > dirise < not required > difall < not required > motion1 <...

  • Page 58: How To View Your Camera Via The Internet

    D. How to View Your Camera via the Internet The steps outlined below will help you install your camera behind a router: Camera Identification Open the camera’s web page by typing its IP address in your web browser, and click on “System”. If you intend to install multiple cameras, it is recommended that you give each camera a unique “Host name”...
  • Page 59 Opening Ports You will need to open unique ports for each camera in order to be able to view them remotely over the Internet. You will need to open these ports in the “Network” section of the camera’s homepage for two reasons: a. if you need to use ports other than the default HTTP Port 80, Control Channel Port 5001, Video Channel Port 5003, and Audio Channel Port 5002, and b.
  • Page 60 For example, assume that you have five network cameras that need to be installed and they have the following IP addresses: 10.1.1.125 10.1.1.126 10.1.1.127 10.1.1.128 10.1.1.129 You can open the HTTP port for each network camera, from port 81 to Port 85, as illustrated below: Internet Camera 1 –...
  • Page 61 Locate, Make a Note of Your Router’s WAN (Public) IP Address You will need to go to the router’s web page (by typing in its local IP address in the web address bar) and find the “Status” (or similar) page. On this page, you should be able to locate the router’s IP address. This IP address is the router’s public IP address and will be different from its local IP address.
  • Page 62 Use Port Mapping to Assign Virtual Server Ports Typically, there is an “Advanced Setup” (or similar) section on the router’s web page where you can find a “Virtual Server” or “Port Mapping” sub-section. To enable remote viewing over the Internet for your camera, you will need to open virtual server ports on your router.
  • Page 63 Viewing the Camera from Outside the Network Once the settings have been correctly entered and saved, authorized users can access the camera from outside the local area network as well as from within. To access the camera from outside the local area network in a remote location via the Internet, type (in sequence) the router’s public IP address, a colon, and the port number assigned to the camera, in the address bar of your web browser.

  • Page 64: Technical Specifications

    E. Technical Specifications System CPU: Trimedia PNX1300 RAM: 16MB SDRAM ROM: 2MB FLASH ROM Networking Protocol - TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS and DHCP Physical - 10BaseT Ethernet or 100BaseT Fast Ethernet WLAN 2.4GHz 802.11g/b 54/48/36/24/18/12/9/6/11/5.5/2/1Mbps Coverage: 54Mbps:64m, 48Mbps:70m, 36Mbps:80m, 24/18/12/9/6Mbps:120m, 11Mbps:80m, 5.5Mbps:120m 2Mbps:200m, 1Mbps:300m...
  • Page 65 Microphone - Omni-directional - Frequency: 20 – 20,000Hz - S/N ratio: more than 58dB General I/O - 1 sensor input (max. 12VDC 50mA) - 1 relay output (max. 24VDC 1A, 125VAC 0.5A) LED indicator - Dual color status indicator Dimension - 104.5mm(L) * 104.5mm(W) * 113.6mm(H) Weight - NET.
