T6634-TE21/22 LCD Digital Fan Coil Thermostat (Modulating/Floating) - Installation Instructions
T6634-TE21/22 液晶数字式风机盘管温控器 (调节型/浮点型) -安装说明
应用
T6000液晶数字式风机盘管温控器
T6000数字式风机盘管温控器使用现场温度来控制风机盘管的启停，使用户得到舒适
的环境。通过选择及设定温度类型、设定点、运行模式和所需参数，来控制制热、通
风和空调(HVAC)系统，从而维持环境的理想温度。增加有人/无人监控装置，启动有
人/无人模式的扩大温度控制范围，从而达到节约能源。
T6000温控器设有带背光液晶显示(LCD) 、一个模式/时间( M / )选择按钮, 二个调节按
钮(▲和 ), 一个风速( )选择按钮和一个 On/Off ( )按钮。
安装
T6000温控器安装在用户容易观看屏幕和方便调节温度设定点的地方。并使温控器位
于能代表房间总体环境温度的地方。避免将温控器安装于冷热源附近，如通风口、加
热器、室外或阳光照射到的地方。
安装
T6000系列温控器设计为标准75x75x5mm墙装接线盒安装。 (见 图 3 : 拆开图)
按照指示打开后盖底座，把它安装在墙上并接线。
注意: 所有T6000系列温控器型号，需要两枚Mx5安装螺钉 (盒中自带，如遗失，需采
用PWT.5X5X5.5螺钉)。
打开底座
松开（不要取下）温控器顶部一个螺钉，轻轻向前拉温控器，温控器的咬合钩就从安
装底座底部的咬合槽脱离，使得安装和接线非常方便。印刷电路板（PCB）固定在前
盖的里面，后面中部为连接钉。
601V-B02A-NC Rev 4-Issue Date 11 2012 601V-B02A-NC Rev 4-Issue Date 11 2012
30mm.
86mm.
M
Retention Screw
固定螺丝
Base
底盖
Cover
外壳
This document is subject to change without notice 本文档如有变化，恕不另行通知

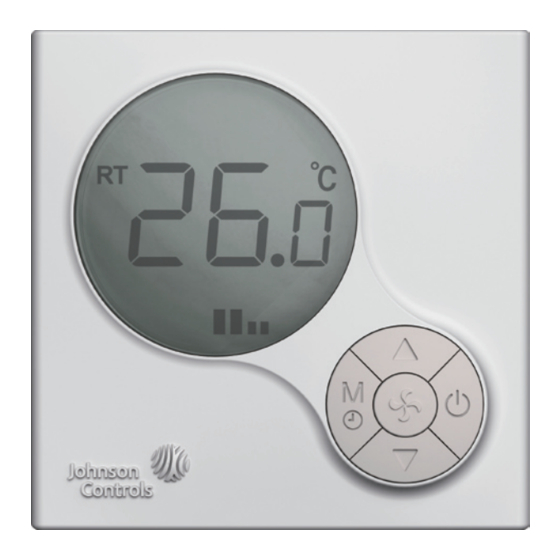

图 1: T66液晶数字式风机盘管温控器
Figure 1: T66 LCD Digital Fan Coil Thermostat
Application
T6000 LCD Digital Fan Coil Thermostats
The T6000 Digital Fan Coil Thermostats feature local temperature control within fan coil
operations. Select the temperature scale and setpoint, the mode, and the differential values
to control the Heating, Ventilating, and Air Conditioning (HVAC) system that maintains the
desired room temperature. The optional Occupied/Unoccupied feature saves energy by
enlarging the acceptable temperature range.
T6000 features with Backlit Liquid Crystal Display (LCD), one Mode/Timer ( M / ) selection
button, two Adjustment buttons (▲& ), one Fan Speed ( ) selection button and one
On/Off ( ) button.
70mm.
Retention Screw 固定螺丝
Hinge Hook
卡勾
Installation
Install the T6000 where the occupant can read the display and adjust the setpoint easily.
Situate the thermostat where the temperature is representative of the general room
conditions. Avoid installing the T6000 near cold or warm air drafts, radiant heat, on an
outside wall, or in direct sunlight.
Mounting
Mount the T6000 Series thermostat to a 75x75x5mm standard electrical wallbox. (See
Figure 3 )
Follow the instruction in removing the base and then proceed to the wall box Mounting and
the Wiring sections.
Note:
All T6000 Series models require two No. Mx5 mounting screws (Included in the box,
screw PWT.5X5X5.5 is required if missing).
Wall Box
墙装接线盒
Field Cabling
现场接线
Wall Box 2 MX5
Mounting Screw
墙装接线盒, 两枚MX5
安装螺钉
"Wafer" Connector with 12cm 20AWG PVC Cable
带有12cm线长, 插拔式"Wafer"接线, 20AWG PVC式电线
图 3: 拆开图
Figure 3: Exploded View
Removing the Base
Loosen (Do Not Remove) the single Phillips-Head retaining screw at the top of the case to
swing the thermostat slightly away from the base. By gently sliding it forward, the thermostat
hinge hooks come away from the hinge slots at the bottom of the mounting base to provide
easy access for mounting and wiring. The Printed Circuit Board (PCB) is attached inside the
cover with connection pin near the middle of the mounting base.
图 2: T66系列温控器尺寸(mm)
Figure 2: T66 Series Thermostat Dimensions (mm)
