User Guide
Symbio 700 Controller
Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of heating, ventilating, and air-conditioning equipment
can be hazardous and requires specific knowledge and training. Improperly installed, adjusted or altered equipment by an unqualified person could result in death or
serious injury. When working on the equipment, observe all precautions in the literature and on the tags, stickers, and labels that are attached to the equipment.
July 2022
SAFETY WARNING
BAS-SVU054B-EN

Advertisement

Table of Contents
loading

Related Manuals for Trane Symbio 700

Summary of Contents for Trane Symbio 700

  • Page 1 User Guide Symbio 700 Controller SAFETY WARNING Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of heating, ventilating, and air-conditioning equipment can be hazardous and requires specific knowledge and training. Improperly installed, adjusted or altered equipment by an unqualified person could result in death or serious injury.
  • Page 2 PPE in accordance with OSHA, NFPA 70E, or other country-specific requirements for arc flash protection, PRIOR to servicing the unit. NEVER PERFORM ANY SWITCHING, DISCONNECTING, OR VOLTAGE TESTING WITHOUT PROPER ELECTRICAL PPE AND ARC FLASH CLOTHING. ENSURE ELECTRICAL METERS AND EQUIPMENT ARE PROPERLY RATED FOR INTENDED VOLTAGE. BAS-SVU054B-EN ©2022 Trane...
  • Page 3 Non-Trane personnel should always follow local regulations. Copyright This document and the information in it are the property of Trane, and may not be used or reproduced in whole or in part without written permission. Trane reserves the right to revise this publication at any time, and to make changes to its content without obligation to notify any person of such revision or change.

  • Page 4: Table Of Contents

    Connecting to the Symbio 700 Controller ........

  • Page 5: Introduction

    It offers equipment and control configurations that can be used with light commercial packaged equipment. This control system consists of the Symbio 700 main controller and up to four option modules used to provide optional functional operation. A system may or may not include option modules, depending on the configuration of the equipment.

  • Page 6: Controller Overview

    Advanced Configuration — introduces additional troubleshooting tools and Building Automation System interface via BACnet®, Modbus™, or LonTalk™. To upgrade from Standard Functionality to Advance Functionality a new Symbio 700 controller must be purchased with the Advance Functionality and installed on the equipment.

  • Page 7: Symbio Service And Installation Mobile Application

    Symbio 700 controller via Bluetooth connection. The Symbio 700 can connect to mobile devices that support BLE version 4.2 and higher. Only one connection is allowed at a time to prevent another user from connecting to the system while it is already in use.

  • Page 8: Connecting To The Symbio 700 Controller

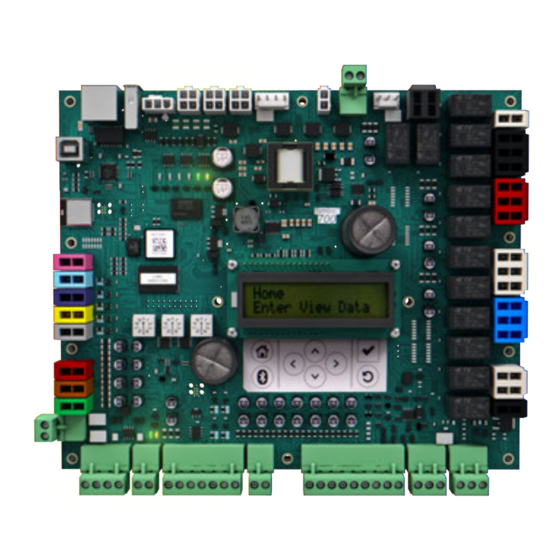

    2. Access the Symbio™ 700 controller in the low voltage portion of the equipment. Figure 2. Symbio 700 controller 3. Press on the Symbio 700 keyboard/display to turn on Bluetooth. 4. Confirm the status of Bluetooth communications. Display Description...
  • Page 9 Trane Connect user name and password. 7. On the Unit List page, select the Symbio 700 controller to pair with. If the controller is not listed, press the refresh arrow in the upper right-hand corner of the screen.

  • Page 10: Troubleshooting

    Android device, as it does not appear in Settings. Multiple users attempting to connect to the controller via Only one user can connect to the Symbio 700 controller via Bluetooth Bluetooth. If the blue light is solid, another user is connected to the controller.
  • Page 11 The Status screen displays all information available bottom of the screen to navigate to the Settings equipment. Users can set the default value for in the Symbio 700. Some information can be screen. many setpoints and modes. Edit any setting by overridden by selecting the green text.

  • Page 12: Editing Equipment Configuration

    Symbio Service and Installation Mobile Application Editing Equipment Configuration Depending on how the split system condenser and air handler are paired, adjusting the equipment configuration may be required for proper operation. To edit the equipment configuration: 1. On the home screen, select the tools icon at the 2.
  • Page 13 Symbio Service and Installation Mobile Application 7. Verify that all options are properly set. If — 8. When editing is complete, press the green check Select One — displays, an option must be selected mark at the top of the page. The check mark is only to save.

  • Page 14: Viewing Alarms

    To verify proper equipment operation and to help troubleshoot, the Symbio Service & Installation app allows users to view equipment alarms. Depending how the Symbio 700 is licensed, these views may be slightly different from what is shown. 1. On the Home screen, swipe left or right at the top 2.

  • Page 15: Service Test Mode

    Below are the steps to initiate Service Test Mode. For detailed information on how each Service Test State is interpreted based on the equipment configuration, refer to the Symbio 700 Odyssey Controls Application Guide (ACC-APG001*-EN). 1. On the home screen, select the tools icon at the 2.

  • Page 16: Onboard Display

    Onboard Display The Symbio 700 controller provides a 2 X 16 backlit LCD display on the middle of the controller. The onboard user interface includes a Bluetooth pair button to pair with the Symbio 700 controller for use with the Symbio Service and Installation mobile app.

  • Page 17: Menu

    Onboard Display Menu Figure 30. Symbio 700 menu BAS-SVU054B-EN...

  • Page 18: Led Functions

    Onboard Display Figure 31. Symbio 700 menu (continued) LED Functions Table 2. Symbio 700 LED functions Function SOLID ON=When output is on LED 1 – Binary Output OFF=When output is off SOLID ON=When output is on LED 2 – Binary Output...
  • Page 19 Onboard Display Table 2. Symbio 700 LED functions (continued) Function SOLID ON = When link is connected LED 7 OFF = When link is disconnected BLINKING = Activity on link LED 8 OFF = No activity on link SOLID GREEN = All objects in a normal state...
  • Page 20 For more information, please visit trane. com or tranetechnologies.com. Trane has a policy of continuous product and product data improvements and reserves the right to change design and specifications without notice. We are committed to using environmentally conscious print practices.
