3 Pin Lock Output Harness
1 BLUE
3 GREEN
The door lock / unlock outputs are designed to control several different types of
systems which may require additional parts. Please review the wire and location
chart to see which type of door lock system is in your vehicle. The most common
types are shown in the following diagrams.
These wires supply a ( - ) 500mA output.
Negative Switching Locks
All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle's lock / unlock
switch.
Verification: These wires will register ground when the Lock and Unlock
switches are activated.
Connect the GREEN and BLUE wires shown in the diagram below.
16
UNLOCK ( - )
LOCK ( - )
Negative Locks:
Lock
Unlock

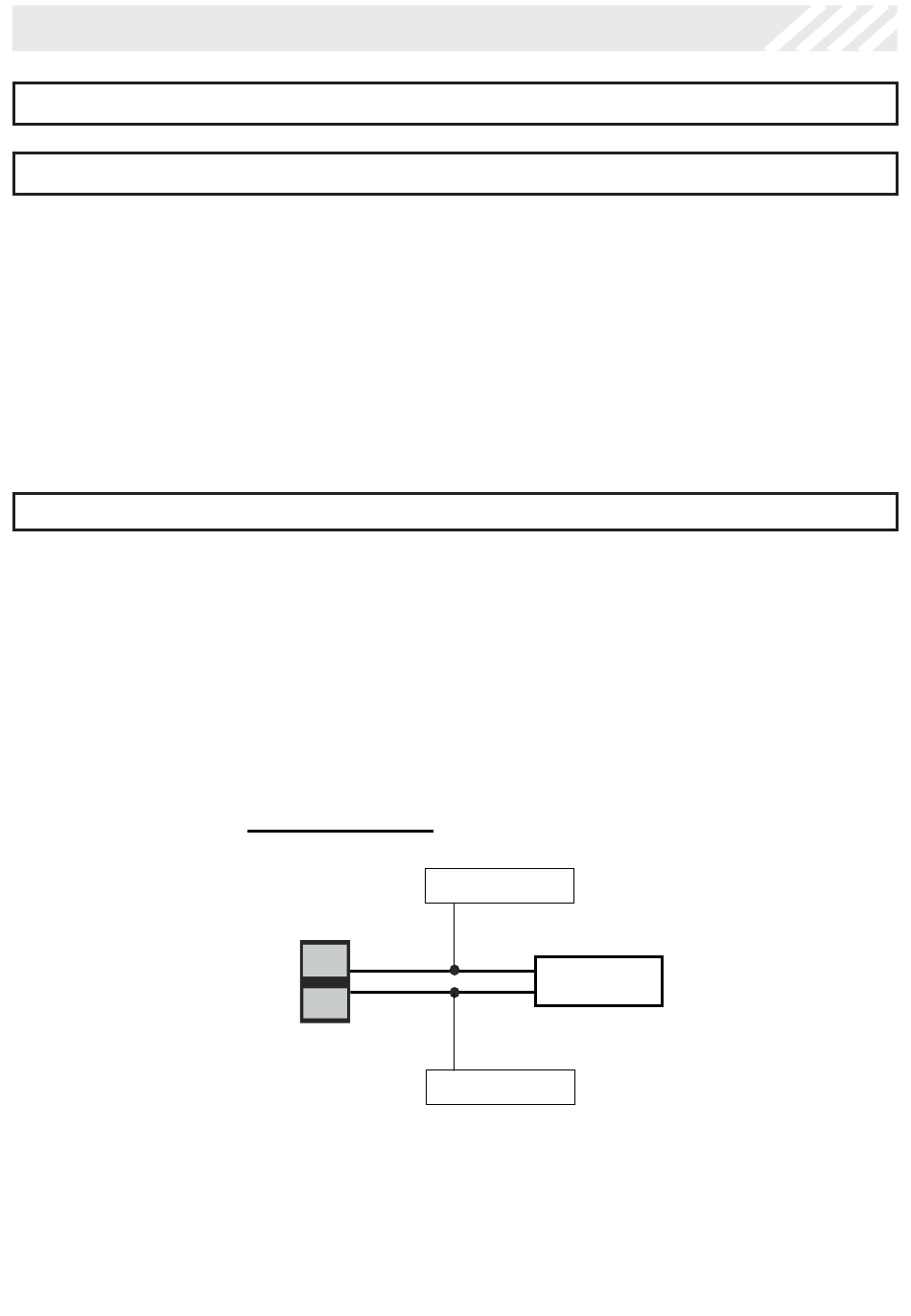

GREEN ( - ) Lock Output
Vehicle Door Lock
Control Relays
BLUE ( - ) Unlock Output
