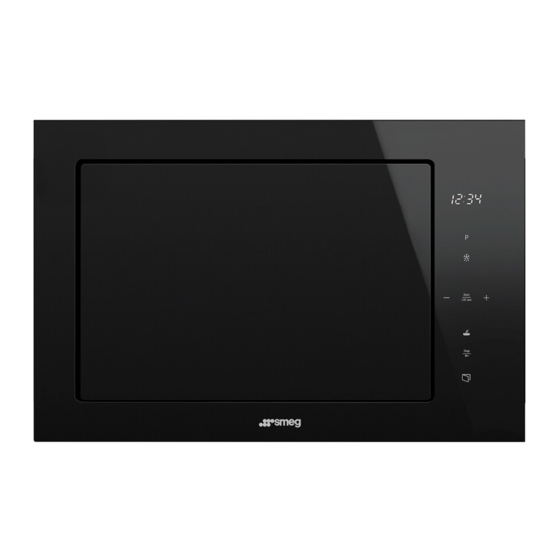

MANUALE D'USO
FORNO DA INCASSO
INSTRUCTION MANUAL
BUILT-IN OVEN
MANUEL D'UTILISATION
FOUR ENCASTRABLE
GEBRAUCHSANWEISUNG
EINBAUBACKOFEN
GEBRUIKSAANWIJZING
INBOUWOVEN
MANUAL DE USO
HORNO EMPOTRADO
MANUAL DE UTILIZAÇÃO
FORNO DE ENCASTRAR
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
ВСТРАИВАЕМЫЙ ДУХОВОЙ ШКАФ
INSTRUKCJA UŻYTKOWNIKA
PIEKARNIK DO ZABUDOWY
FMI625CN
Advertisement
Table of Contents
Related Manuals for Smeg FMI625CN
Summary of Contents for Smeg FMI625CN
- Page 1 MANUALE D’USO FORNO DA INCASSO INSTRUCTION MANUAL BUILT-IN OVEN MANUEL D’UTILISATION FOUR ENCASTRABLE GEBRAUCHSANWEISUNG EINBAUBACKOFEN GEBRUIKSAANWIJZING INBOUWOVEN MANUAL DE USO HORNO EMPOTRADO MANUAL DE UTILIZAÇÃO FORNO DE ENCASTRAR РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ ВСТРАИВАЕМЫЙ ДУХОВОЙ ШКАФ INSTRUKCJA UŻYTKOWNIKA PIEKARNIK DO ZABUDOWY FMI625CN...
- Page 2 ITALIANO Gentile Cliente, desideriamo ringraziarLa per la fiducia accordataci. Scegliendo un nostro prodotto, Lei ha optato per soluzioni in cui la ricerca estetica, abbinata ad una progettazione tecnica innovativa, offre oggetti unici che diventano elementi d’arredo. AugurandoLe di apprezzare appieno le funzionalità del Suo elettrodomestico, Le porgiamo i nostri più cordiali saluti.
-
Page 3: Table Of Contents
3.4 Materials to be avoided in microwave oven 3.5 Operation Instructions 4 Cleaning and maintenance 4.1 Instructions 5 Installation We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com... -
Page 4: Instructions
Instructions 1 Instructions IMPORTANT SAFETY INSTRUCTIONS PLEASE READ CAREFULLY AND RETAIN FOR FUTURE USE. 1.1 General safety instructions appliances, as long they are supervised or instructed by adults Risk of personal injury who are responsible for their • WARNING: If the door or the safety. -
Page 5: Instructions For Using Microwaves
Instructions Risk of damaging the appliance 1.2 Instructions for using microwaves • Do not use abrasive or corrosive • Check the appliance visually detergents on glass parts (e.g. during the cooking of foods in powder products, stain removers plastic or paper containers. and metallic sponges). - Page 6 Instructions heating process has completed. This appliance complies with the standards and directives currently in • Before cooking food with a hard force concerning safety and skin or peel (e.g. potatoes, electromagnetic compatibility. It is apples, etc.) it is necessary to however recommended for puncture the skin.
-
Page 7: To Reduce The Risk Of Injury To Persons Grounding Installation
Instructions 1.3 To Reduce the Risk of Injury to • The long cord should be arranged so that it will not drape over the counter top Persons Grounding Installation or tabletop where it can be pulled on by Power voltage children or tripped over unintentionally. -
Page 8: Appliance Purpose
Instructions 1.5 Appliance purpose 1.7 Disposal • This appliance is intended for cooking This appliance must be disposed of food in the home environment. Every separately from other waste other use is considered inappropriate. It (Directives 2002/95/EC, 2002/ cannot be used: 96/EC, 2003/108/EC). -
Page 9: This User Manual
Instructions 1.8 This user manual 1.9 How to read the user manual This user manual is an integral part of the This user manual uses the following reading appliance and must therefore be kept in its conventions: entirety and within the user’s reach for the Instructions whole working life of the appliance. -
Page 10: Description
Description 2 Description 2.1 Names of Oven Parts and Accessories 1 Control panel 5 Observation window 2 Turntable shaft 6 Door assembly 3 Turntable ring assembly 7 Safety interlock system 4 Glass tray 8 Grill Rack (Can not be used in microwave function and must be placed on the glass tray) -
Page 11: Specifications
Description 2.2 Specifications Model: FMI625CN. Rated Voltage: 230V~50Hz Rated Input Power (Microwave): 1450W Rated Output Power (Microwave): 900W Rated Input Power (Grill): 1100W Rated Input Power (Convection): 2500W Oven Capacity: Turntable Diameter: 315mm External Dimensions: 595x470x388mm Net Weight: Approx. 21.5kg... -
Page 12: Use
3 Use • If glass tray or turntable ring assembly cracks or breaks, contact your nearest Remove the oven and all materials from the authorized service center. carton and oven cavity. 3.2 Utensils Your oven comes with the following accessories: Caution •... -
Page 13: Materials You Can Use In Microwave Oven
3.3 Materials you can use in microwave oven Utensils Remarks Follow manufacturer's instructions. The bottom of browning dish must be at least Browning dish 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or Dinnerware chipped dishes. -
Page 14: Materials To Be Avoided In Microwave Oven
3.4 Materials to be avoided in microwave oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish Food carton with metal May cause arcing. Transfer food into microwave-safe dish. handle Metal or metal- trimmed Metal shields the food from microwave energy. Metal trim may cause arcing. utensils Metal twist ties May cause arcing and could cause a fire in the oven. - Page 15 Microwave Cooking “Micro./Grill/Conve./Combi” Pad instructions 1. Press once, the screen will display “P100“. Microwave 2. Press “+” or “-” to choose the power you Order Display Power want, and “P100”, “P80”, “P50”, “P30” or “P10” will display for each added P100 100% press.
- Page 16 3. Press “Start/+30Sec./Confirm” again to 1. Press repeatedly until “G” display. start cooking. Then press “+”or “-” to choose the cooking mode you want, and “G”, “C- If half the grill time passes, the oven 1”, “C-2”, “C-3” or “C-4” will display for sounds twice, and this is normal.
- Page 17 Convection Cooking (With preheating Convection Cooking (Without pre- function) heating function) The convection cooking can let you to cook 1. Press repeatedly until 130 degrees the food as a traditional oven. Microwave is displays. not used. It is recommended that you should 2.
- Page 18 Kitchen Timer Auto Menu 1. Press “+” or “-” to choose the menu, and 1. Press once, the screen will display “A1” to “A10” will display, which means 00:00. auto reheat, potato, meat, vegetable, 2. Press “+” or “-” to enter the correct fish, pasta, soup, cake, pizza and timer.(The maximum cooking time is 95 chicken.
- Page 19 The automatic menu procedure: Menu Weight Display Power 150g 150g 250g 250g 350g 350g 100% AUTO REHEAT 450g 450g 600g 600g 1 (about 230g) A2 POTATO 2 (about 460g) 100% 3 (about 690g) 150g 150g 300g 300g 100% 450g 450g MEAT 600g 600g...
- Page 20 Speedy Cooking Specification In waiting state, press “Start/+30Sec./ 1. “Start/+30Sec./Confirm” must be Confirm” key to cook with 100% power pressed to continue cooking if the door is level for 30 seconds. Each press on the opened during cooking; same key can increase 30 seconds. The 2.
- Page 21 Open the oven door Press button, the oven door will be opened. If the button does not work, please open the door by the sucker. Refer to the following figures.
- Page 22 Troubleshooting Normal Radio and TV reception may be interfered when microwave oven Microwave oven interfering TV operating. It is similar the interference of small electrical appliances, like reception mixer, vacuum cleaner, and electric fan. It is normal In low power microwave cooking, oven light may become dim. It is Dim oven light normal.
-
Page 23: Cleaning And Maintenance
Cleaning and maintenance 4 Cleaning and maintenance 4.1 Instructions Be sure to unplug the appliance from the power supply. 1. Clean the cavity of the oven after using with a slightly damp cloth. 2. Clean the accessories in the usual way in soapy water. -
Page 24: Installation
Installation 5 Installation Electrical connection The oven is fitted with a plug and must be 1. This appliance is only intended for only connected to a properly installed domestic use. earthed socket. 2. This oven is intended for built-in use only. In accordance with the appropriate It is not intended for counter-top use or regulations, the socket must only be... - Page 25 Installation Appliance overall dimensions (mm)
- Page 26 Installation...
- Page 27 Il costruttore si riserva di apportare senza preavviso tutte le modifiche che riterrà utili al miglioramento dei propri prodotti. Le illustrazioni e le descrizioni contenute in questo manuale non sono quindi impegnative ed hanno solo valore indicativo. The manufacturer reserves the right to make any changes deemed useful for improvement of its products without prior notice.
- Page 28 SMEG S.p.A. Via Leonardo Da Vinci, 4 42016 San Girolamo di Guastalla (RE) ITALY www.smeg.com...
