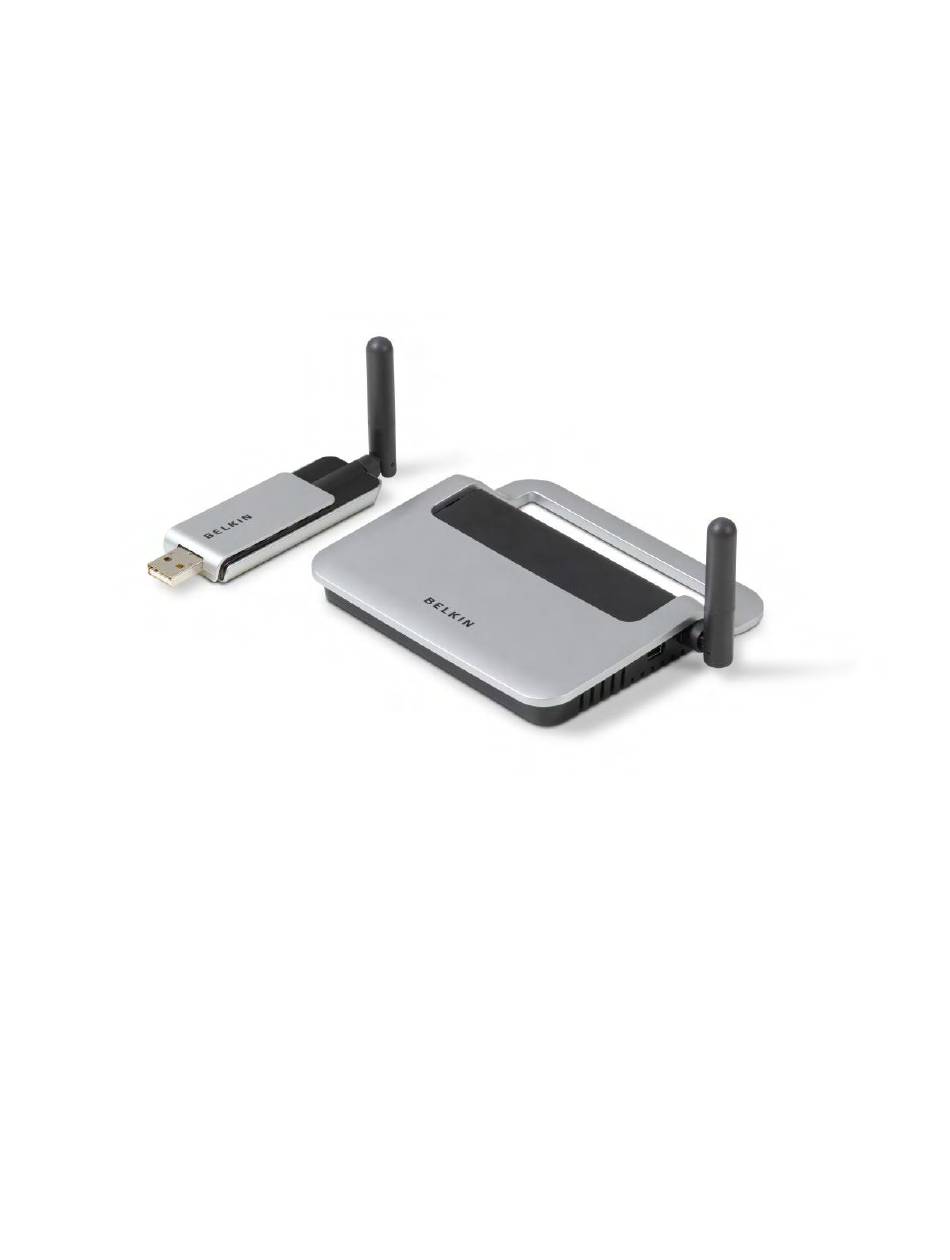

- Page 1 User's Manual Draft 1.3.doc Page 1 of 24 ® BELKIN Wireless USB Hub and Dongle User’s Manual F5U302...
-
Page 2: Fcc Statement - F5U302-Hub
FCC Statement – F5U302-HUB DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY We, Belkin International, Inc., of 501 West Walnut Street, Compton, CA 90220, declare under our sole responsibility that the product: F5U302-HUB to which this declaration relates: Complies with Part 15 of the FCC Rules. Operation is... -
Page 3: Fcc Statement - F5U302-Dngl
FCC Statement – F5U302-DNGL DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY We, Belkin International, Inc., of 501 West Walnut Street, Compton, CA 90220, declare under our sole responsibility that the product: F5U302-DNGL to which this declaration relates: Complies with Part 15 of the FCC Rules. Operation is... - Page 4 DEVICE MAY BE USED. THIS DEVICE MAY NOT BE CO- LOCATED WITH OTHER TRANSMITTERS WITHOUT FURTHER APPROVAL BY THE FCC. CAUTION: CHANGES OR MODIFCATIONS NOT EXPRESSLY APRROVED BY BELKIN INTERNATIONAL, INC., OF 501 WEST WALNUT STREET, COMPTON, CA 90220 COULD VOID THE USER’S AUTHORTY TO OPERATE THIS EQUIPMENT.
-
Page 5: Table Of Contents
User's Manual Draft 1.3.doc Page 5 of 24 Table of Contents FCC Statement – F5U302-HUB ..................2 FCC Statement – F5U302-DNGL................... 3 Introduction ........................6 Features ......................... 6 System Requirements ........................6 Package Includes ..........................7 Technical Specifications ....................7 USB Port Indicator LED Status...................... -
Page 6: Introduction
Introduction Belkin unleashes USB. Congratulations and thank you for purchasing the Belkin Wireless USB Hub and Dongle. This revolutionary product lets you connect all your USB devices to your computer—wirelessly. Now you can print, play music, scan, download photos, and burn CDs from anywhere within the room, up to 30 feet away, without the hassle of connecting cables. -
Page 7: Package Includes
User's Manual Draft 1.3.doc Page 7 of 24 − Windows® XP with Service Pack 2 − Windows® Vista 32bit/64bit Package Includes − Wireless USB Hub − Wireless USB Dongle − Power Adapter − USB Cable (type A to mini B) −... -
Page 8: Certifications
To uninstall the software: 1. Detach the dongle from the USB port of the PC. 1.1 Select “Uninstall” from “Start > Programs > Belkin Wireless USB”. 1.2 Use the “Windows Control Panel > Add or Remove Programs” utility under “Belkin”. -
Page 9: Device Connection Options
User's Manual Draft 1.3.doc Page 9 of 24 1.1.1 Device Connection Options The following information is displayed for each device: 1) The type of device, and optionally, a user-determined name for it. 2) Its connection status (Not available, available, connected, or cable-attached) and, if applicable, the strength of its wireless signal. -
Page 10: Device List Filters
User's Manual Draft 1.3.doc Page 10 of 24 The device will not prompt the user when it is nearby. The user Manual Connect Mode will have to go to the connection options and push the “Connect” button. 1.1.2 Device List Filters The list of devices displayed may be filtered by clicking on the icons at the top right of the screen. -
Page 11: Device Properties
User's Manual Draft 1.3.doc Page 11 of 24 1.1.4 Device Properties This tab lets you set a new device name for display on the local PC. This is the name that appears in bold text at the top of the device entry. 1.2 Advanced Tab The Advanced Tab displays the currently active wireless USB channel, if any, and provides a selector to choose the default channel:... - Page 12 User's Manual Draft 1.3.doc Page 12 of 24 The Channels set the default channel the device will try to use for Wireless USB. Note that the default channel may be in use, and in this case the “Active Channel” display will show the channel actually being used by the device.
-
Page 13: Administration Tab
User's Manual Draft 1.3.doc Page 13 of 24 1.3 Administration Tab The Administration tab allows the user to edit the connection context table of a cable- attached Wireless USB device. When a device is connected, if it is password protected, the user is prompted to enter the device supervisor password. - Page 14 Right clicking this icon gives you the option to exit the application, hide/show the application window, or disable/enable the radio. Double clicking this icon will bring up the Ultrawideband Control Center application window. Alternatively going to Start Programs Belkin Wireless USB UltraWideBand Control Center can be used to launch the application.
-
Page 15: Pairing And Association/Connection
User's Manual Draft 1.3.doc Page 15 of 24 Pairing and Association/Connection Once the Hub is powered up and completes its initialization, it is ready for association. First-time association occurs after physically connecting Hub with the PC via USB cable. This is also called “pairing” the two entities. After the first-time connection/association, future association is handled automatically, so that no user intervention is necessary. -
Page 16: Maintenance
User's Manual Draft 1.3.doc Page 16 of 24 1. Right-click the tray icon and select “Exit”. Maintenance The following sections provide maintenance information and troubleshooting advice. Troubleshooting I just purchased a new wireless USB hub. What do I do get it working? •... - Page 17 User's Manual Draft 1.3.doc Page 17 of 24 issue you have described may be related to other chipsets (ULI as example). In this case, you may be able to un-install the ULI driver, re-boot your system so that the Microsoft driver will load automatically.
- Page 18 User's Manual Draft 1.3.doc Page 18 of 24 applied that may be hiding the devices. Have you completed the one-time cable security setup process? If so, Please verify that the device that was setup appears in the Devices page of the Ultrawideband Control Center software. If not, try the security setup process again following the instructions carefully.
-
Page 19: Support For Usb Classes
User's Manual Draft 1.3.doc Page 19 of 24 Control Center software and select the Advance tab. By default, both should operate out of the box in the same environment. Check to see if both happen to be set to run on the same channel. If this is the case, set each to a different channel. -
Page 20: Technical Specifications
User's Manual Draft 1.3.doc Page 20 of 24 Drivers version Go to Windows Device manger and Right-click the Belkin wireless driver(s) and select “Properties”. Read the “Driver Version” from the “driver” tab section. Wireless Wireless Run the EEPROM update from start programs Bellkin... - Page 21 User's Manual Draft 1.3.doc Page 21 of 24 Operating 0° C to 40° C Temperature Range Operational Less than 95% Humidity PHY Compliance Complies with WiMedia® PHY spec. rev. 1.0 FCC Compliance Complies with FCC CFR 47 Part 15 subpart F; UWB intentional radiation and subpart B.
-
