Wireless USB Hub
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk, The Netherlands
+31 (0) 20 654 7300
+31 (0) 20 654 7349 fax
Belkin Ltd.
4 Pioneer Avenue
Tuggerah Business Park
Tuggerah, NSW 2259, Australia
+61 (0) 2 4350 4600
+61 (0) 2 4350 4700 fax
User Manual
P75427
Wireless USB Hub
F5U302
Advertisement
Table of Contents
Related Manuals for Belkin F5U302 - Wireless USB Hub
Summary of Contents for Belkin F5U302 - Wireless USB Hub
-
Page 1: User Manual
+44 (0) 1933 35 2000 +44 (0) 1933 31 2000 fax User Manual © 2007 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Windows, Windows Vista, and Microsoft are either registered trademarks or... -
Page 2: Table Of Contents
Table of Contents 1. Introduction ..............1 Features ................ 3 System Requirements ........... 3 Package Contents............3 Product Description ............4 2. Installation ..............5-12 3. Operation ..............13-19 Devices Tab..............13 Advanced Tab ............. 17 System Tray..............18 Uninstalling the Software ..........19 4. -
Page 3: Introduction
Introduction Congratulations and thank you for purchasing the Belkin Wireless USB Hub. This revolutionary product lets you connect all your USB devices to your computer—wirelessly. Now you can print, play music, scan, download photos, and burn CDs from anywhere within the room, up to 30 feet away, without the hassle of connecting cables. -
Page 4: Features

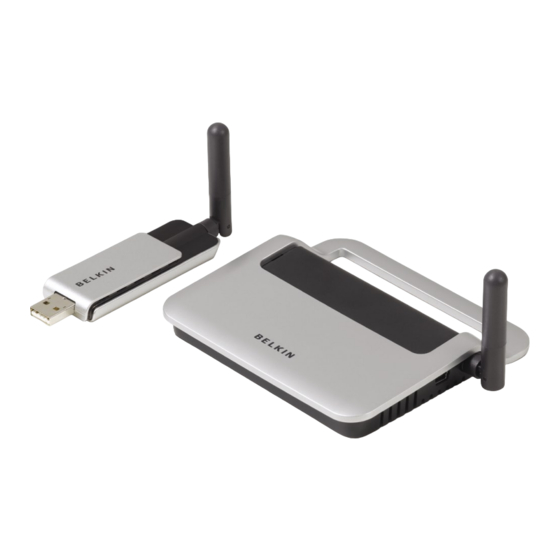

30 feet away • Reduced cable clutter • Ports for linking up to 4 high-, full-, and low-speed devices with your computer • Belkin Lifetime Warranty System Requirements Figure 1: Wireless USB Hub • Pentium processor-based computer (or equivalent) with ®... -
Page 5: Product Description
Introduction Installation Product Description The Wireless USB Hub installation process consists of four main steps: Upstream USB Ports: Downstream USB Ports: 4 Step 1: Initial driver installation Per-Port Voltage: Per-Port Current: 500mA The driver installer places all Hub and Adapter drivers into Power Mode: Self-powered their proper folders and creates necessary registry entries. -
Page 6: Installation
Installation Initial Driver Installation Cable-Association Procedure 1. Insert the Belkin driver-installation CD into your CD When you initially install the Hub, you must “associate” drive. After a few moments, the setup application should it with the host computer. To do this, connect the Hub to appear on your computer screen. - Page 7 2. There are five separate driver modules to install in this step: a. Belkin Wireless USB HWA b. Belkin HWA Radio Control Interface c. Belkin HWA DFU Interface d. Belkin Host Wire Adapter 6. Remove and store the USB cable.
- Page 8 To confirm that the Wireless USB Hub is properly installed, check the Windows Device Manager. In the Device Manager, you should see: “Belkin Host Wire Adapter”, “Belkin HWA DFU Interface”, “Belkin HWA Radio Control Interface”, and “Belkin Wireless USB Hub”.
-
Page 9: Operation
Installation Operation Remote Adapter Stand Devices Tab When the Adapter is to be attached to a desktop or tower The “Devices” tab shows all Wireless USB devices available computer, you might need to position it in a remote location. for use on the host computer. From the “Devices” tab, you The included Adapter Stand allows you to position the can set the connection mode, and view or delete Adapter up to six feet away from the host computer. - Page 10 Operation Operation You can view the device’s connection options by clicking the connection tab for any device. If the device is available but currently not connected, you can click the “Connect” button on this screen to connect it, and click one of the radio buttons to determine how the device will connect in the future.
-
Page 11: Advanced Tab
Operation Operation Security Setup Tab Advanced Tab The “Security Setup” option allows the user to remove a The “Advanced” tab displays the active Wireless USB Wireless USB Hub from the list of known devices. To channel, and provides an option to choose the access the Hub again in the future, follow the steps in the default channel: “Cable-Association Procedure”... -
Page 12: System Tray
Double-clicking this icon will bring up the “Wireless USB Control Center” application window. Alternatively going to “Start > Programs > Belkin Wireless USB > Wireless USB Control Center” can be used to launch the application. -
Page 13: Maintenance
Maintenance Maintenance The following sections provide maintenance information and If neither of those steps work, try resetting your Hub by troubleshooting advice. unplugging the power-supply connector from the back of the Hub, waiting a few moments, and then plugging it back in. Note: After doing this, you must repeat the Troubleshooting cable-security setup. - Page 14 Maintenance Maintenance Hardware” Wizard to see if it will install the drivers Verify the following by referring to your computer properly. If this does not clear up the issue, please manufacturer’s support information: contact Technical Support. A. that your system has the latest drivers Check the blue LED status lights on both the Wireless (available from the manufacturer) installed for the USB Adapter and Hub.
-
Page 15: Support For Usb Classes
Maintenance Technical Specifications Support for USB Classes Model Number F5U302 — Wireless USB Adapter F5U302 — Wireless USB Hub Audio devices (“USB Audio” class) and some webcams UWB Chipset WiQuest WQST110 BB/MAC + WQST101 ® RF IC (“USB Video” class), which have isochronous end points, are Operational Range Up to 30 ft. -
Page 16: Information
(2) this device must accept any interference received, including interference that All above warranties are null and void if the Belkin product is may cause undesired operation. This equipment may only be not provided to Belkin for inspection upon Belkin’s request operated indoors. - Page 17 How state law relates to the warranty. How to get service. THIS WARRANTY CONTAINS THE SOLE WARRANTY To get service for your Belkin product you must take the following steps: OF BELKIN. THERE ARE NO OTHER WARRANTIES, EXPRESSED OR, EXCEPT AS REQUIRED BY LAW, 1.
