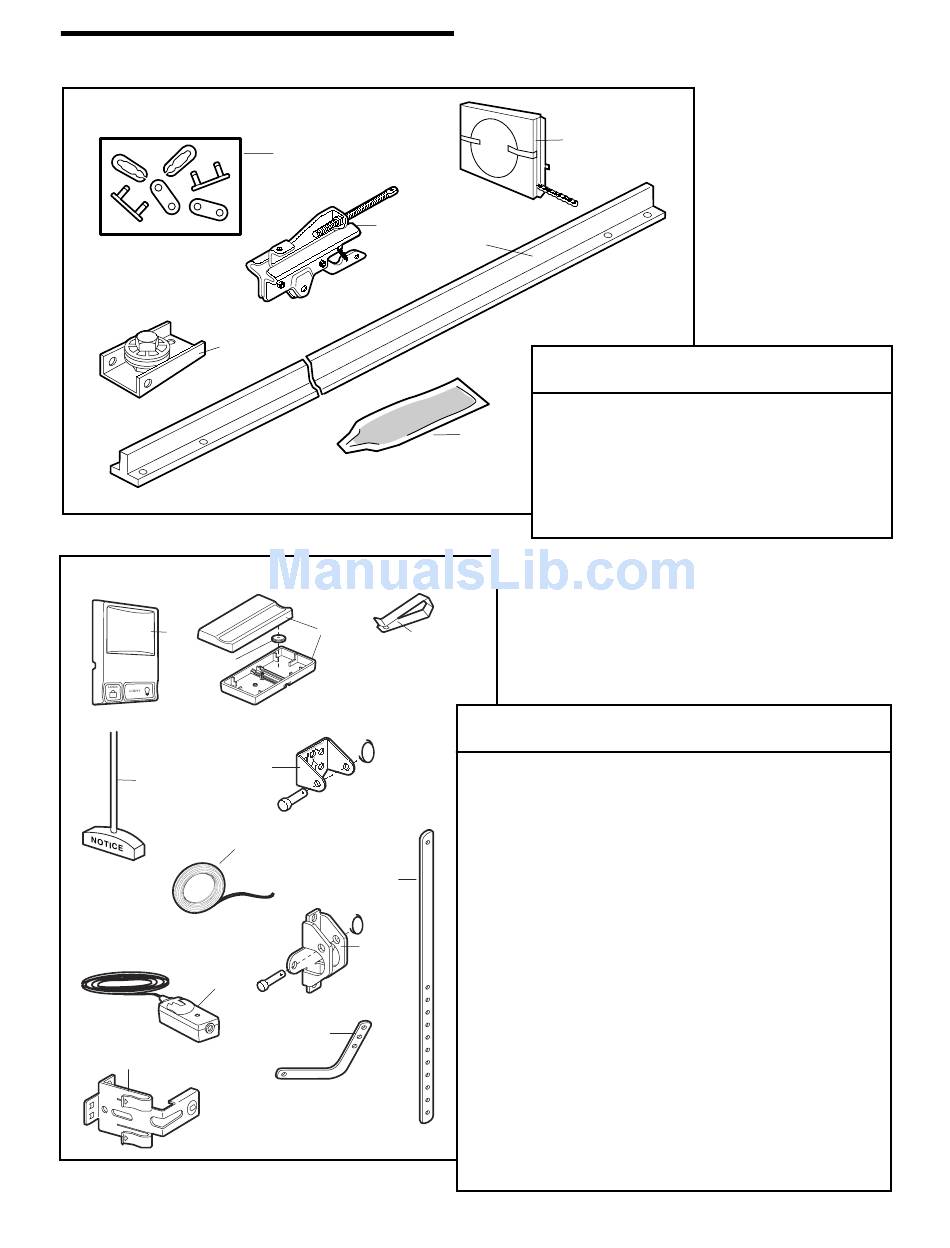

REPAIR PARTS

Rail Assembly Parts

2

Installation Parts

1
3
5
6
11
12
1
3
2
4
7
10
8
9
5
4
KEY PART
NO. NO.
1 4A1008
2 41A4813
6
3 41A3489
4 1707LM
5 41D3484
6 83A11-2
KEY PART
NO. NO. DESCRIPTION
1 41A5273-1 Multi-function door control panel
2 371AC Single-Button remote control
3 10A20 3V2032 Lithium battery
4 29B137 Remote control visor clip
5 41A2828 Emergency release rope & handle
assembly
6 41B4494-1 2-Conductor bell wire, white & white/red
7 41A4353 Header bracket w clevis pin & fastener
8 41A5047 Door bracket w/clevis pin & fastener
9 178B35 Curved door arm section
10 178B34 Straight door arm section
11 41A5034 Safety reversing sensor kit (receiving
and sending eyes) with 3' (.9 m)
2-conductor bell wire
12 41A5266-1 Safety reversing sensor brackets (2)
NOT SHOWN
41A2770-6 Installation hardware bag
(includes hardware listed on page 5).
114A3283 Owner's manual
114A3283SP Owner's manual – Spanish
33
DESCRIPTION
Master link kit
Chain pulley bracket
Complete trolley assembly
One-piece rail
Full chain assembly
Rail grease
