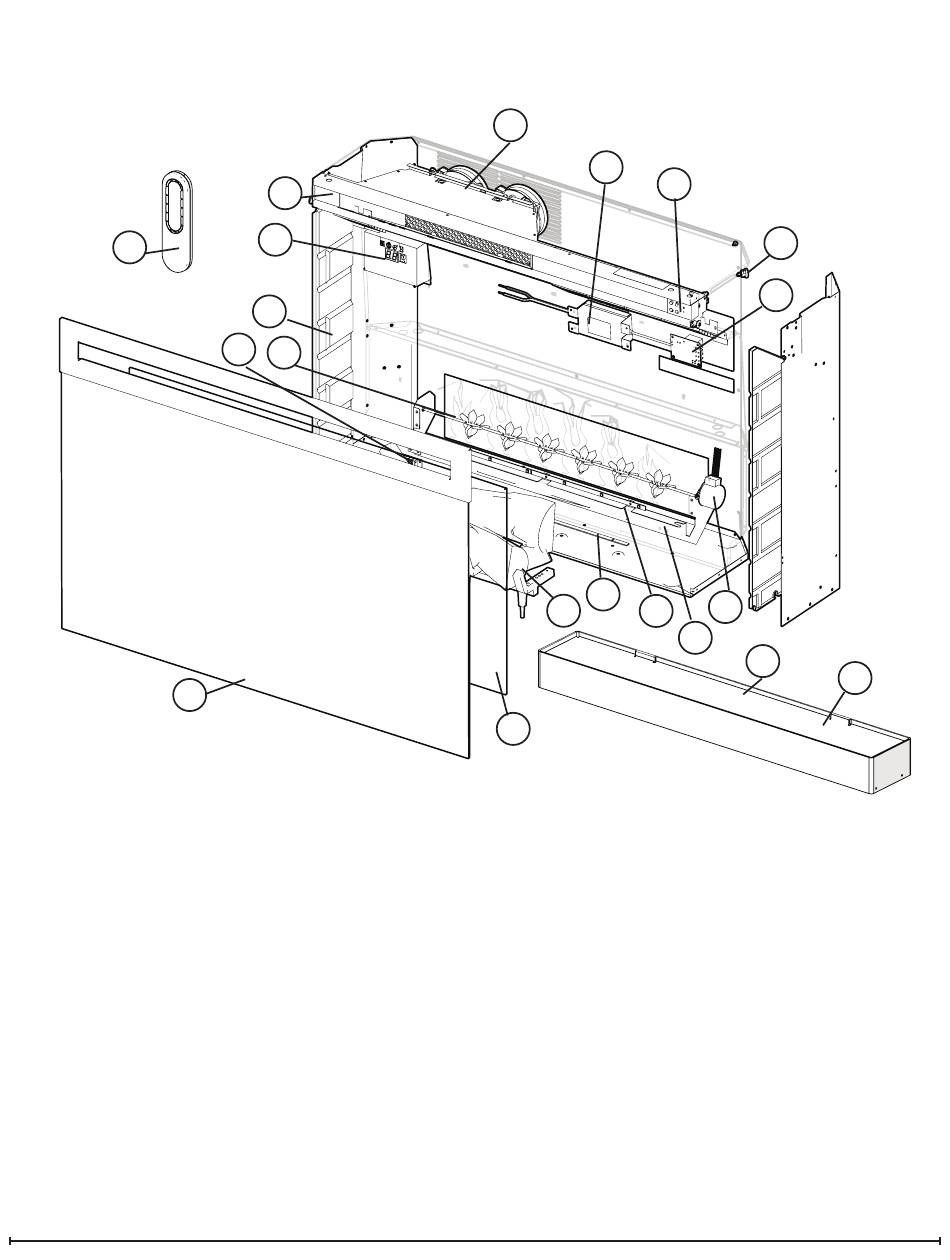

Exploded Parts Diagram - PF3033 Mod B-C

4
13
Replacement Parts - PF3033 Mod B-C:
1. Flicker Motor . . . . . . . . . . . . . . . . . . . . . . . . . . 2000480100RP
2. Heater Assembly (with cutouts) . . . . . . . . . . . 2203650100RP
3. Cord Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4100190300RP
4. Remote Control . . . . . . . . . . . . . . . . . . . . . . . 3001250100RP
5. Floating Display™ Assembly/Main Control Board 3001530100RP
6. gWave Assembly . . . . . . . . . . . . . . . . . . . . 3001620100RP
TM
7. Relay Board . . . . . . . . . . . . . . . . . . . . . . . . . . 3001540100RP
8. Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . 2100250300RP
9. Log set Junction Board (MOD B only) . . . . . . 3001600100RP
10. Top Light Assembly . . . . . . . . . . . . . . . . . . . . 3001290100RP
11. Log set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0441540200RP
10
5
15
9
16
2
8
19
11 18
14
12. Media Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . 0441580200RP
13. Front Glass . . . . . . . . . . . . . . . . . . . . . . . . . . 1026770600RP
14. Partially Reflective Glass . . . . . . . . . . . . . . . . 5902750400RP
15. Brick Panel Set . . . . . . . . . . . . . . . . . . . . . . . . 0441600300RP
16. Flicker Assembly . . . . . . . . . . . . . . . . . . . . . . 5902830200RP
17. Media LED Light Assembly . . . . . . . . . . . . . . 3001330600RP
18. Ember LED Light Assembly . . . . . . . . . . . . . . 3001300200RP
19. Flame LED Light Assembly . . . . . . . . . . . . . . 3001310300RP
20. Flame Bed LED Assembly . . . . . . . . . . . . . . . 3001330400RP
21. Small Acrylic Media . . . . . . . . . . . . . . . . . . . . 1400150300RP
22. Large Acrylic Media (Ice Chunks) (2 req'd) . . 1400130200RP
6
3
7
1
20
17
12
9
