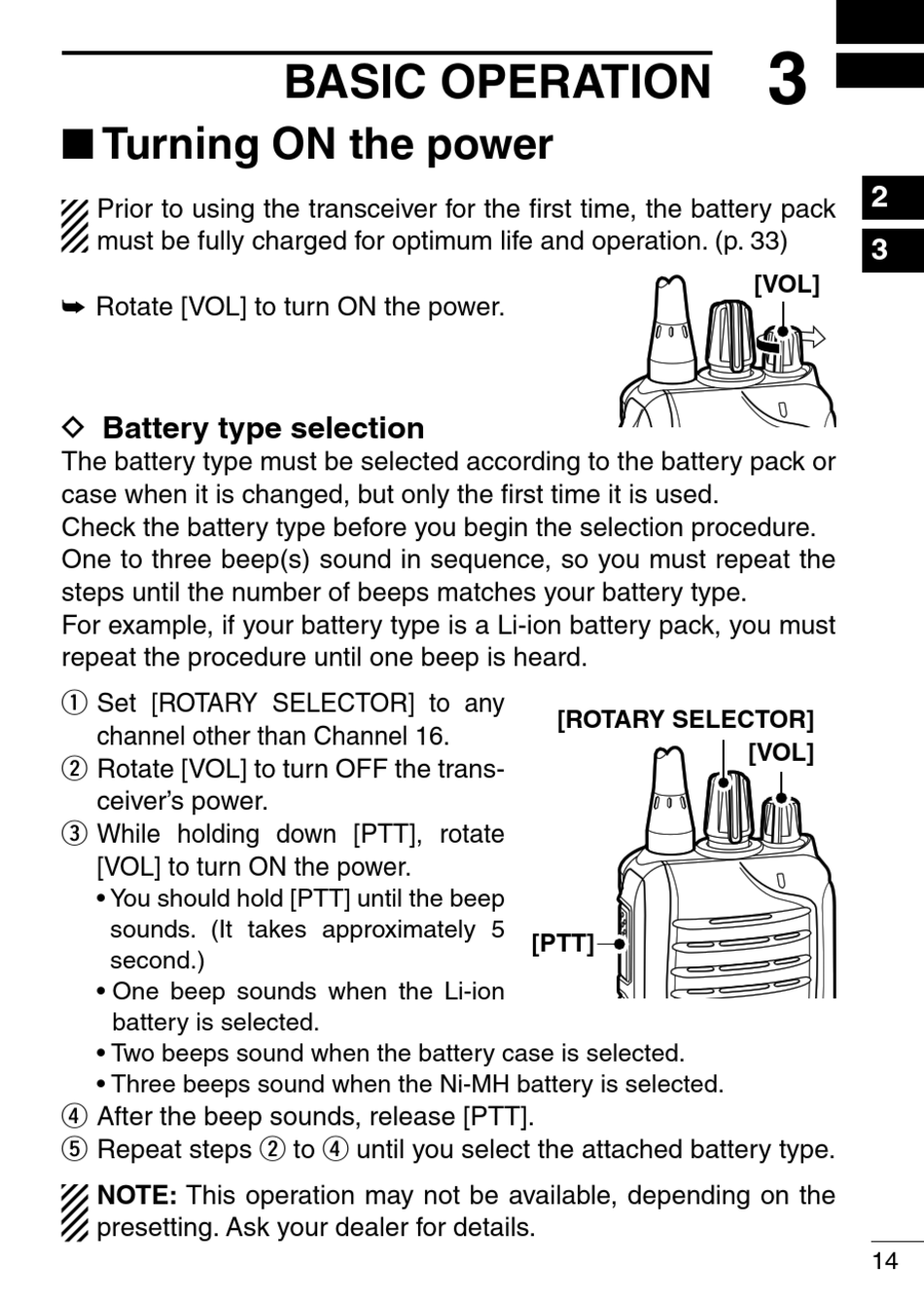

■ Turning ON the power

Prior to using the transceiver for the first time, the battery pack
must be fully charged for optimum life and operation. (p. 33)
➥ Rotate [VOL] to turn ON the power.
D Battery type selection
The battery type must be selected according to the battery pack or
case when it is changed, but only the first time it is used.
Check the battery type before you begin the selection procedure.
One to three beep(s) sound in sequence, so you must repeat the
steps until the number of beeps matches your battery type.
For example, if your battery type is a Li-ion battery pack, you must
repeat the procedure until one beep is heard.
q Set [ROTARY SELECTOR] to any
channel other than Channel 16.
w Rotate [VOL] to turn OFF the trans-
ceiver's power.
e While holding down [PTT], rotate
[VOL] to turn ON the power.
• You should hold [PTT] until the beep
sounds. (It takes approximately 5
second.)
• One beep sounds when the Li-ion
battery is selected.
• Two beeps sound when the battery case is selected.
• Three beeps sound when the Ni-MH battery is selected.
r After the beep sounds, release [PTT].
t Repeat steps w to r until you select the attached battery type.
NOTE: This operation may not be available, depending on the
presetting. Ask your dealer for details.
