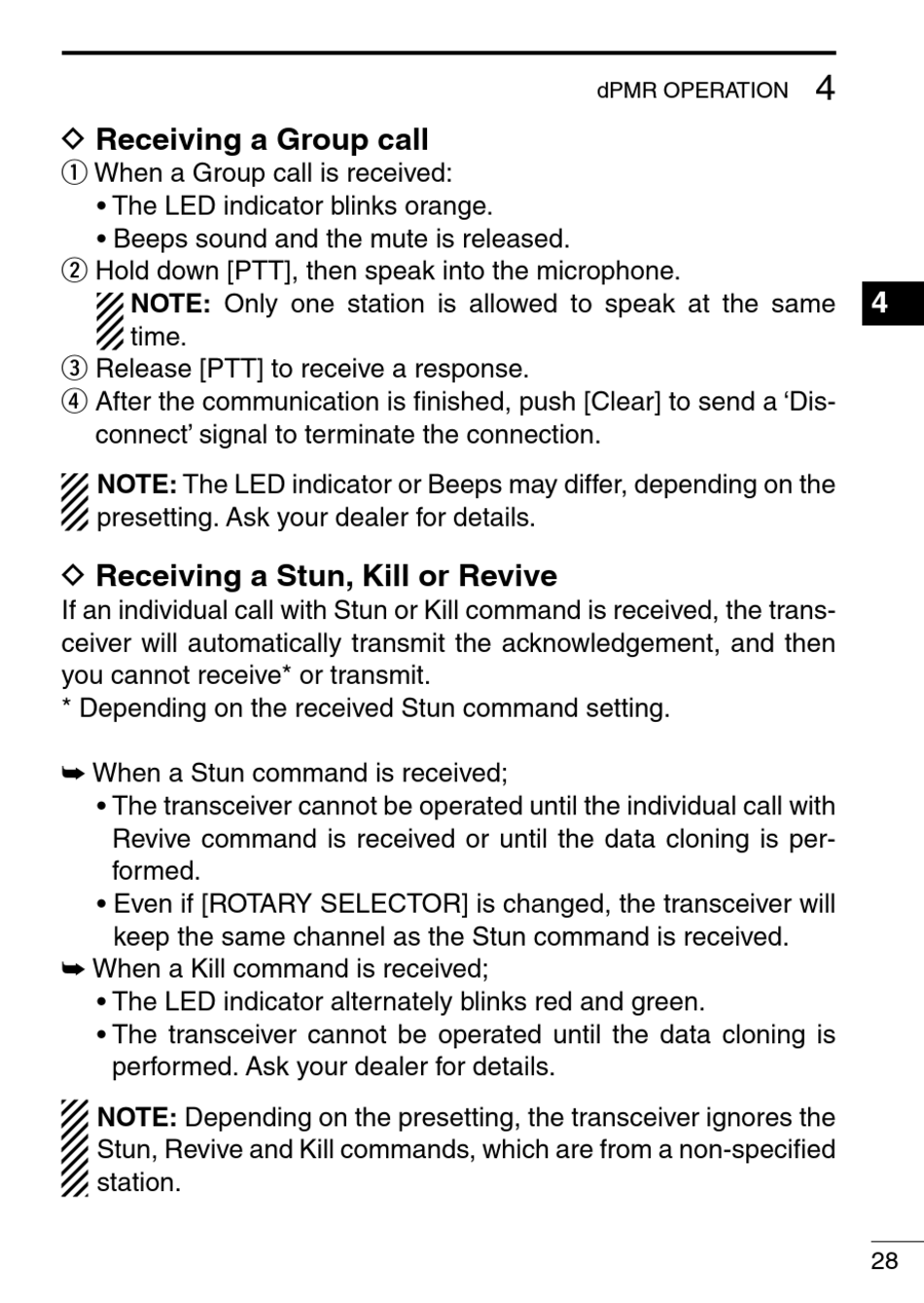

Icom iDAS IC-F3103D Instruction Manual page 35

D Receiving a Group call
q When a Group call is received:
• The LED indicator blinks orange.
• Beeps sound and the mute is released.
w Hold down [PTT], then speak into the microphone.
NOTE: Only one station is allowed to speak at the same
time.
e Release [PTT] to receive a response.
r After the communication is finished, push [Clear] to send a 'Dis-
connect' signal to terminate the connection.
NOTE: The LED indicator or Beeps may differ, depending on the
presetting. Ask your dealer for details.
D Receiving a Stun, Kill or Revive
If an individual call with Stun or Kill command is received, the trans-
ceiver will automatically transmit the acknowledgement, and then
you cannot receive* or transmit.
* Depending on the received Stun command setting.
➥ When a Stun command is received;
• The transceiver cannot be operated until the individual call with
Revive command is received or until the data cloning is per-
formed.
• Even if [ROTARY SELECTOR] is changed, the transceiver will
keep the same channel as the Stun command is received.
➥ When a Kill command is received;
• The LED indicator alternately blinks red and green.
• The transceiver cannot be operated until the data cloning is
performed. Ask your dealer for details.
NOTE: Depending on the presetting, the transceiver ignores the
Stun, Revive and Kill commands, which are from a non-specified
station.
dPMR OPERATION
