After-sales service products ............12 Additional information on products, accessories, replacement Before using the oven for the first time........13 parts and services can be found at www.bosch-home.com and Setting the time ................13 in the online shop www.bosch-eshop.com Heating up the oven................ 13 Cleaning the accessories...............
: Important safety information Read these instructions carefully. Only then Do not use inappropriate child safety will you be able to operate your appliance shields or hob guards. These can cause safely and correctly. Retain the instruction accidents. manual and installation instructions for This appliance may be used by children future use or for subsequent owners.
Page 5
flames carefully using a lid, fire blanket or content. Open the appliance door with something similar. care. The hotplates become very hot. Never The hotplates and surrounding area Risk of fire! Risk of burns! ■ ■ place combustible items on the hob. (particularly the hob surround, if fitted) Never place objects on the hob.
Page 6
Faults or damage to the appliance are Risk of electric shock! ■ dangerous. Never switch on a faulty Incorrect repairs are dangerous. Repairs ■ appliance. Unplug the appliance from the may only be carried out by one of our mains or switch off the circuit breaker in trained after-sales engineers.
Causes of damage steam. The temperature change can cause damage to the enamel. Caution! Moist food: do not store moist food in the cooking ■ Only use the burners when cookware has been placed on ■ compartment when it is closed for prolonged periods This will top.
Moving the appliance by the gas line or door Setting up the appliance handle Do not move the appliance while holding the gas line; the gas pipe could be damaged. There is a risk of a gas leak! Do not move the appliance while holding it by the door handle.

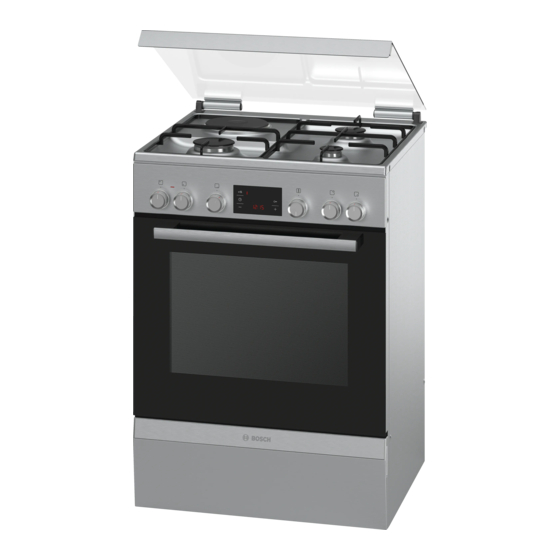

Your new appliance In this section you will find information on the appliance, the operating modes and the accessories. General information Cooking area The design depends on the respective appliance model. Here is an overview of the control panel. The design depends on the respective appliance model.
Control panel Details may vary depending on the appliance model. While the oven is heating up, the temperature symbol lights up in the display. If heating is interrupted, the symbol goes out. Function control knob For some settings, it does not light up. The function control knob is used to select the type of heating.
The cooking compartment Cooling fan The cooling fan switches on and off as required. The hot air The oven light is located in the cooking compartment. A cooling escapes above the door. fan protects the oven from overheating. So that the cooking compartment cools down more quickly Light after operation, the cooling fan continues to run for a certain period afterwards.
Optional accessories HEZ number Function Pizza tray HEZ317000 Particularly good for pizza, frozen meals and round tarts. You can use the pizza tray instead of the universal pan. Slide the tray in above the wire rack and proceed according to the instructions in the tables.
Before using the oven for the first time Heating up the oven In this section, you can find out what you must do before using your oven to prepare food for the first time. First read the To remove the new cooker smell, heat up the oven when it is section on Safety information.
Example Food Hotplate Heat setting Chocolate, butter, margarine Economy burner Small flame Melting Stock, tinned vegetables Standard burner Small flame Warming Electric hotplate** Soups Economy burner Small flame Heating and keeping warm Electric hotplate** Fish Standard burner Between large and small flame Steaming* Electric hotplate** Potatoes and other vegetables,...
Programming the oven There are different ways to programme the oven. Programming The oven heats up. the type of heating, temperature or grill power. The oven can be Switching off the oven programmed with the cooking time (duration) and the end time for each dish.
Cooking time End time The oven allows you to set the cooking time for each type of The oven allows you to set the time when you want the food food. The oven switches off automatically when the cooking ready. The oven switches on automatically and switches off at time has finished.
Set the time with the buttons Viewing the time settings If several time functions are programmed, the corresponding The programmed time is displayed after a few seconds. symbols light up on the display panel. The symbol for the time function in the foreground is in brackets. Changing the time No other time function can be programmed.
Care and cleaning With attentive care and cleaning, your hob and oven will retain Zone Cleaning agent its looks and remain in good working order for a long time. We Upper glass cover* Glass cleaner: will explain here how you should care for and clean them Clean with a soft cloth.
Zone Cleaning agent Zone Cleaning agent Glass hob* Care: Protective/care products for glass Accessories Hot soapy water: Cleaning: Cleaning agents for glass. Soak and then clean with a dish cloth or (depending on Follow the cleaning instructions on the a brush. appliance model) packaging.
Do not use any of the following to clean the glass cover Undiluted cleaning agents ■ Abrasive cleaners or cleaning agents with a high alcohol ■ content Aggressive cleaning agents, such as oven cleaner or stain ■ remover High-pressure cleaners or steam jet cleaners ■...
Removing and installing the door panels Detaching the door Open the oven door fully. To facilitate cleaning, you can remove the glass panels from the oven door. Fold up the two locking levers on the left and right (figure A). Close the oven door as far as the limit stop.
Troubleshooting Malfunctions often have simple explanations. Refer to the table Error messages before calling the after-sales service as you may be able to When the display panel shows an error message with , press “ remedy the fault yourself. button. The message will disappear. The set time function will be deleted.
After-sales service Our after-sales service is there for you if your appliance needs After-sales service to be repaired. We will always find the right solution in order to avoid unnecessary visits from a service technician. E number and FD number Please note that there will be a fee for a visit by a service technician in the event of a malfunction, even during the When calling us, please give the product number (E no.) and...
Tested for you in our cooking studio Here you will find a selection of dishes and the ideal settings for Universal pan: level 3 ■ them. We will show you which type of heating and which Baking tray: level 1 ■...
Page 25
Cakes on trays Accessories Level Type of Temperature Cooking time heating in °C in minutes Sponge mixture or yeast dough with dry Baking tray 170-190 20-30 topping Universal pan + baking 150-170 35-45 tray Sponge mixture or yeast dough with Universal pan 160-180 40-50...
Baking tips You wish to bake according to your own Use similar items in the baking tables as a guide. recipe. How to establish whether sponge cake Approximately 10 minutes before the end of the baking time specified in the recipe, stick is baked through.
Page 27
Meat Weight Accessories and Level Type of Temperature Cooking time ovenware heating in °C, grill set- in minutes ting Beef Pot-roasted beef 1.0 kg Covered 200-220 1.5 kg 190-210 2.0 kg 180-200 Fillet of beef, medium 1.0 kg Uncovered 210-230 1.5 kg 200-220 Sirloin, medium...
upwards. Placing half a potato or a small ovenproof container Fish in the belly of the fish will make it more stable. Turn the pieces of fish after of the time. If you are grilling directly on the wire rack, the universal pan Whole fish does not have to be turned.
Preprepared products The cooking result greatly depends on the quality of the food. Pre-browning and irregularities can sometimes even be found Observe the instructions on the packaging. on the raw product. If you line the accessories with greaseproof paper, make sure that the paper is suitable for these temperatures.
Special dishes Preheat the cooking compartment as indicated. Place the cups or jars on the cooking compartment floor and At low temperatures, 3D hot air is equally useful for incubate as indicated. producing creamy yoghurt as it is for proving light yeast dough. First, remove accessories, hook-in racks or telescopic shelves Proving dough from the cooking compartment.
Preserving Seal the jars with the clips. Place no more than six jars in the cooking compartment. For preserving, the jars and rubber seals must be clean and intact. If possible, use jars of the same size. The information in Making settings the table is for round, one-litre jars.
Test dishes These tables have been produced for test institutes to facilitate the inspection and testing of the various appliances. In accordance with EN 50304/EN 60350 (2009) and IEC 60350. Baking Baking on 2 levels: Always insert the universal pan above the baking tray. Baking on 3 levels: Insert the universal pan in the middle.
Page 36
Robert Bosch Hausgeräte GmbH Carl-Wery-Straße 34 81739 München Germany www.bosch-home.com *9001174841* 291295 9001174841...
