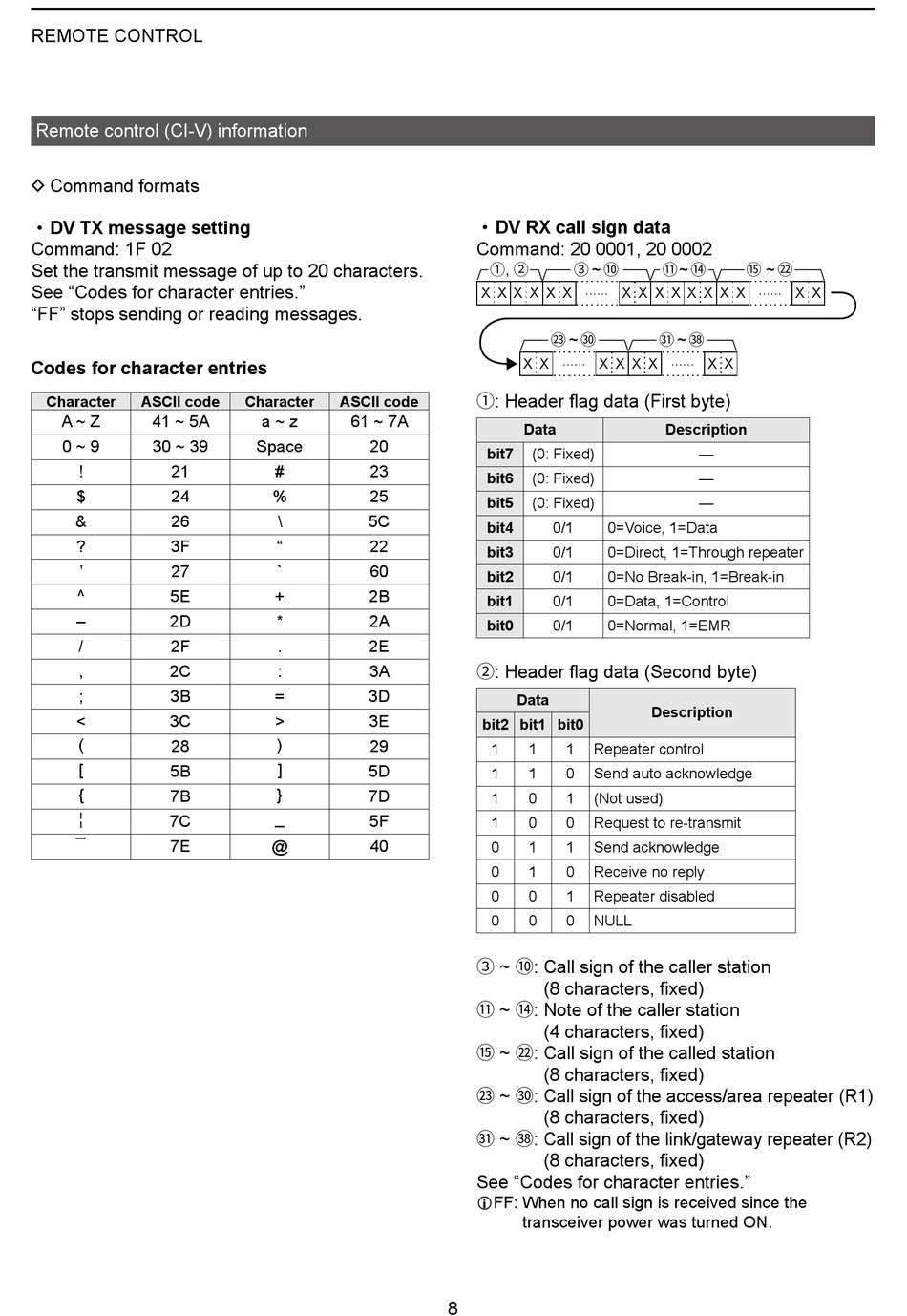

REMOTE CONTROL
Remote control (CI-V) information
D Command formats

• DV TX message setting

Command: 1F 02
Set the transmit message of up to 20 characters�
See "Codes for character entries�"
"FF" stops sending or reading messages�
Codes for character entries
Character ASCII code
A ~ Z 41 ~ 5A
0 ~ 9 30 ~ 39
! 21
$ 24
& 26
? 3F
' 27
^ 5E
– 2D
/ 2F
, 2C
; 3B
< 3C
(
28
[
5B
{
7B
¦
7C
¯ 7E
Character ASCII code
a ~ z 61 ~ 7A
Space 20
# 23
% 25
\ 5C
" 22
` 60
+ 2B
* 2A
� 2E
: 3A
= 3D
> 3E
)
29
]
5D
}
7D
_
5F
@ 40

• DV RX call sign data

Command: 20 0001, 20 0002
3 ~ 10
1, 2
X X X X X X ∙∙∙∙∙∙
23 ~ 30
X X X X
∙∙∙∙∙∙
1: Header flag data (First byte)
Data
bit7 (0: Fixed)
bit6 (0: Fixed)
bit5
(0: Fixed)
bit4 0/1 0=Voice, 1=Data
bit3 0/1 0=Direct, 1=Through repeater
bit2
0/1 0=No Break-in, 1=Break-in
bit1 0/1 0=Data, 1=Control
bit0 0/1 0=Normal, 1=EMR
2: Header flag data (Second byte)
Data
bit2 bit1 bit0
1 1 1 Repeater control
1 1 0 Send auto acknowledge
1 0 1 (Not used)
1 0 0 Request to re-transmit
0 1 1 Send acknowledge
0 1 0 Receive no reply
0 0 1 Repeater disabled
0 0 0 NULL
3 ~ 10: Call sign of the caller station
(8 characters, fixed)
11 ~ 14: Note of the caller station
(4 characters, fixed)
15 ~ 22: Call sign of the called station
(8 characters, fixed)
23 ~ 30: Call sign of the access/area repeater (R1)
(8 characters, fixed)
31 ~ 38: Call sign of the link/gateway repeater (R2)
(8 characters, fixed)
See "Codes for character entries�"
LFF: When no call sign is received since the
transceiver power was turned ON�
8
11 ~ 14 15 ~ 22
X X X X X X X X ∙∙∙∙∙∙
31 ~ 38
X X X X
∙∙∙∙∙∙
Description
—
—
—
Description
X X
