- Page 1 HP OAP Cards User Guide Part number: 5998-1600 Document version: 5PW100-20110316...
- Page 2 The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
- Page 3 HP networking Web site at www.hp.com/networking/warranty. The customer warranty support and services information are available on the HP networking Web site at www.hp.com/networking/support. Additionally, your HP-authorized network reseller can provide you with assistance, both with services that...
- Page 4 Documentation For the latest documentation, visit the HP website, www.hp.com, and select the Support & Troubleshooting link. Choose See support and troubleshooting information radio button • Enter product name/number OR choose the automatic product • name/number detection OR select a product category From the product page, choose Manuals link to see the documentation •...
-
Page 5: Table Of Contents
Contents Overview···········································································································1 Hardware of the OAP card ·············································································2 Appearance······································································································ 2 Front panel········································································································ 3 Appearance ····························································································· 3 Description of the LEDs ··········································································· 3 Management Ethernet port····································································· 4 Hardware specifications ················································································· 5 Installing an OAP card·····················································································6 Installing and removing an OAP card ··························································· 6 Connecting the management Ethernet port cable ······································10 Verifying the installation················································································10... -
Page 6: Overview
Overview The Open Application Platform (OAP) cards are developed based on the Open Application Architecture (OAA) by HP. An OAP card has an independent CPU and memory card (CF card), and it can load various service software. After you install an OAP card in a... -
Page 7: Hardware Of The Oap Card

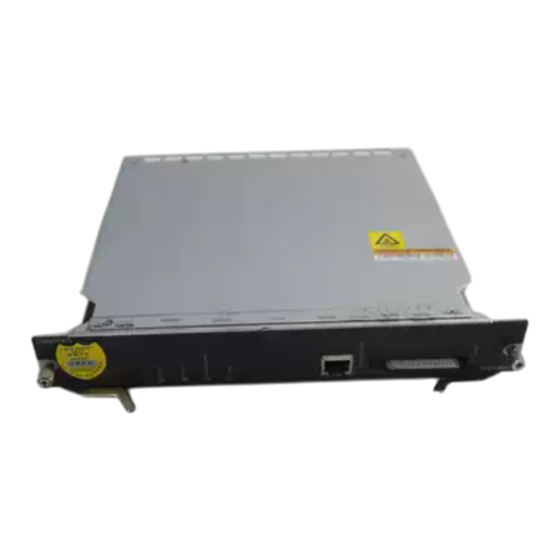

Hardware of the OAP card The firewall card and access controller module are similar in hardware structure and appearance, except that the product model marked on the front panel and the loaded software of the cards are different. The following hardware introduction is made on a firewall card. Appearance Figure 1 OAP card appearance (1) Ejector lever... -
Page 8: Front Panel
Front panel Appearance Figure 2 Front panel of an OAP card (1) CF card interface (2) Management Ethernet port (3) CF card status LED (CFS) (4) Management Ethernet port status LED (Management) (5) System status LED (RUN) (6) PWR LED Description of the LEDs The front panel of an OAP card provides four LEDs, including PWR, RUN, CFS, and Management. -
Page 9: Management Ethernet Port
Color Status Description Slowly blinking (1.5 The system works properly. Fast blinking The system is starting up/loading (6 Hz) software. System The system works abnormally or the status LED Green system is reset. (RUN) When the system is reset, the RUN LED is off;... -
Page 10: Hardware Specifications
switching chip. Typically, a management Ethernet port is used to connect a PC for loading system programs or debugging, or connect the remote network management station implementing remote system management. Table 3 Management Ethernet port specifications Item Specification Connector type RJ-45 Transmission rate 10/100/1000 Mbps, half/full duplex... -
Page 11: Installing An Oap Card
Installing an OAP card Installing and removing an OAP card CAUTION: The installation tools are not provided with the HP switches and OAP cards. This section describes the installation and removal of a firewall card on an A5800-48G-PoE+ Switch with 2 Interface Slots (JC101A). The installation and removal of other OAP card models are similar. - Page 12 Figure 3 Remove the blank panel (1) Rotation direction of the Phillips screwdriver (2) Blank panel of the OAP card slot (3) Phillips screwdriver Take the OAP card out of the package. Then, you can select to insert Step3 the OAP card as shown in Figure 4 with the ejector levels at the bottom, or reversely insert the OAP card as shown in...
- Page 13 Figure 5 Reversely insert an OAP card Push the OAP card slowly along the guide rails (see callout 3 in Figure Step4 6) and then push the ejector levers inward to lock the OAP card in position (see callout 4 in Figure Figure 6 Install the OAP card to the switch (1) OAP card...
- Page 14 Wear an ESD-preventive wrist strap, and make sure the wrist strap Step1 makes good skin contact and is properly grounded. Loosen the captive screws on the OAP card with the Philips screwdriver Step2 until all spring pressure is released. Hold each ejector lever with a hand and pull the ejector levers outward Step3 (see callout 4 in Figure...
-
Page 15: Connecting The Management Ethernet Port Cable
CAUTION: When removing the OAP card, note the following guidelines: Do not touch the components on the surface of the OAP card. Do not apply excessive force while removing the OAP card. If you do not install a new OAP card in the slot, install a blank panel to prevent dust from entering the switch and ensure normal ventilation in the switch.
