Page 1: Gps Receiver

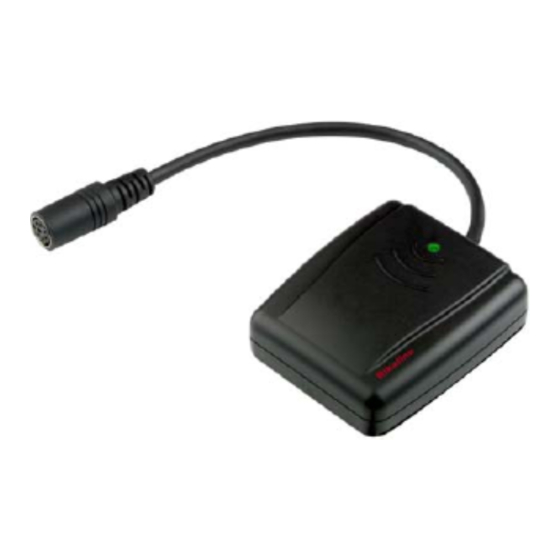

Rikaline GPS-6010-X5 【High Sensitivity】 GPS Receiver User’s Guide July. 12, 2003 Rikaline International Corp. 10F, 64, Kang-Ding Road, Taipei 108, Taiwan, R.O.C. Phone: +886-2-2370-4688 Fax: +886-2-2370-4686 E-Mail: info@rikaline.com.tw Web: www.rikaline.com.tw All Right Reserved... -
Page 2: Table Of Contents
High Sensitivity ……….………………………………………………………………………………….. 0. Quick USe 0.1 Check GPS Package 0.2 Check Connector 0.3 Connect GPS-6010-X5 to your machine 0.4 Turn on your machine 1. Introduction ……………………………………………………………………………………….. 1.1 Overview …………………………………………………………………………………….. 1.2 Features …………………………………………………………………………………….. 1.3 Technical Specifications 2. Operational Characteristics 2.1 Initialization …………………………………………………………………………………. -
Page 3: Quick Use
2. A-6013 USB Connector, Please install USB driver first. 3. When you connect your PDA to GPS-6010-X5, you need an optional cable. Check the e mark (FCC) for safety and ensure the cigarette adapter with correct model number to avoid damaging your PDA. -
Page 4: Introduction
RS-232 or TTL and saves critical satellite data by built–in backup memory. With low power consumption, the GPS-6010-X5 tracks up to 12 satellites at a time, re-acquires satellite signals in 100 ms and updates position data every second. Trickle-Power allows the unit operates a fraction of the time and Push-to-Fix permits user to have a quick position fix even though the receiver usually stays off. - Page 5 4) SiRF protocol. Rikaline International Corp. Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 GPS-6010-X5 Operating Manual 5-25 meter CEP with SA off 0.1 meters/second, with SA off microsecond synchronized GPS time 1 to 5 meter, typical 0.05 meters/second, typical...
-
Page 6: Operational Characteristics
2. Operational characteristics 2.1 Initialization As soon as the initial self-test is complete, the GPS-6010-X5 begins the process of satellite acquisition and tracking automatically. Under normal circumstances, it takes approximately 45 seconds to achieve a position fix, 38 seconds if ephemeris data is known. After a position fix has been calculated, information about valid position, velocity and time is transmitted over the output channel. -
Page 7: Hardware Interface
PC, PDA or other devices. The one-piece cigarette adapter allows you to connect GPS-6010-X5 to your PDAs. Optional color, input voltage and output connector are listed and described below: 3.3 Connector... -
Page 8: Accessories
The function definition of the A Type USB connector is as follows: Remarks: A-6013-C is for COM+PS-2 converting to USB If you have an old GPS receiver with standard COM + PS-2 male connector, you may choose an A-6013-C. Then you can use your old GPS receiver with USB version PC. - Page 9 3.4.4 A-6015 Mounting Bracket For using GPS-6010-X5 on a boat or somewhere no metal to facilitate the magnets, you need a mounting bracket to fix the GPS receiver. Simply fasten 3 screws (3 screws for metal and 3 for wood are Enclosed) through the holes of the bracket when using it as a GPS holder.
-
Page 10: Usb Driver
COM Port setting. 5. Warranty The GPS-6010-X5 is warranted to be free from defects in material and functions for one year from the date of purchase. Any failure of this product within this period under normal conditions will be replaced at no charge to the customers. -
Page 11: Appendix A Software Inferface
Version 2.1, RTCM Special Committee No.104). A.1 NMEA Transmitted Messages The GPS-6010-X5 supported by SiRF Technology Inc. also outputs data in NMEA-0183 format as defined by the National Marine Electronics Association (NMEA), Standard. The default communication parameters for NMEA output are 4800 baud, 8 data bits, stop bit, and no parity. - Page 12 Table A-8 contains the values for the following example: $GPGSV,2,1,07,07,79,048,42,02,51,062,43,26,36,256,42,27,27,138,42*71 $GPGSV,2,2,07,09,23,313,42,04,19,159,41,15,12,041,42*41 Rikaline International Corp. Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 GPS-6010-X5 Operating Manual Units GLL protocol header ddmm.mmmm N=north or S=south dddmm.mmmm E=east or W=west hhmmss.sss...
- Page 13 Reference Course Rikaline International Corp. Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 GPS-6010-X5 Operating Manual Units GSV protocol header Range 1 to 3 Range 1 to 3 Range 1 to 12 Channel 1 (Range 1 to 32)
-
Page 14: Rtcm Received Data
The default communication parameters for DGPS Input are 9600 baud, 8 data bits, stop bit, and no parity. Position accuracy of less than 5 meters can be achieved with the GPS-6010-X5 by using Differential GPS (DGPS) real-time pseudo-range correction data in RTCM SC-104 format, with message types 1, 5, or 9. As using DGPS receiver with different communication parameters, GPS-6010-X5 may decode the data correctly to generate accurate messages and save them in battery-back SRAM for later computing. -
Page 15: Appendix B Earth Datums And Output Setting
GPS receiver. If your software uses different sentence, please choose the sentences you need. After above actions, the new setting will be kept in SRAM. If no power supplied to GPS-6010-X5 for more than 30 days, user must re-set again when power on. -
Page 16: Appendix C Products Information
High Sensitivity Appendix C C.1 Product Options C.1.1 OutPut Level (or Data) GPS-6010-X5: RS-232 & TTL (Standard) with 2-meter cable and PS-2 female Connector. C.1.2 Color Option BK Black (Standard) Other Color: by demand C.2 Accessories C.2.1 Cables A-6011 Com Port connector (For use with standard RS-232 port) -
Page 17: Products Combination
A-2007 A-2008 C.3 Products Combination C.3.1 Standard package GPS-6010-X5 (GPS Receiver) + Documents CD + Warranty Card + quick installation reference. C.3.2 Other Combination for GPS Application C.3.2.1 Navigation GPS-6010-X5 + A-6011 Notebook Navigation (COM version) GPS-6010-X5 + A-6013 Notebook Navigation (USB version) GPS-6010-X5 + A-6017-?? PDA Navigation C.3.2.2 Other Popular GPS Application...
