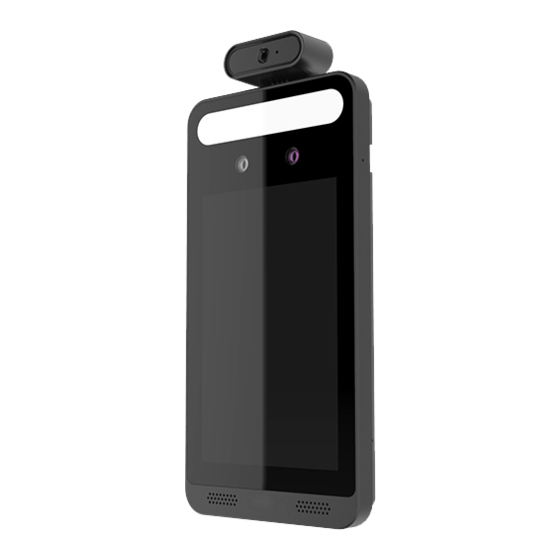

- Page 1 2MP HD Face Recognition, Temperature Check and Face Mask Detection Terminal WIP2FRTMTP Quick Start Guide Please read these instructions carefully before operating the unit and keep for further reference.
- Page 2 Intro Section Please read this instruction carefully before operating the product and keep it for further reference. All examples and pictures used here are for reference only. The contents of this manual are subject to change without notice. CAUTION: • Please use our product according to the following safety instructions and warnings.
-
Page 3: Table Of Contents
Contents 1.0 Introduction ......................4 1.1 Product Features ...................4 1.2 Product Dimensions ..................4 1.3 Package Contents ..................4 1.4 Specification ....................5 2.0 Cable Connection ....................6 3.0 Overview ......................7 4.0 Installation ......................8 4.1 Ambient Illumination Requirement ..............8 4.2 Installation ....................8 4.3 Pole Mounting ....................9 4.4 Height Requirement ..................10 5.0 Network Connection ...................11... -
Page 4: Introduction
The system is built to our usual high standards, accurate and extremely flexible, and can be networked or operated in standalone mode. The WIP2FRTMTP is the perfect system to enable any premises a safe and exceptionally secure access. -
Page 5: Specification
Quick Start Guide 2MP HD Face Recognition, Temperature Check and Face Mask Detection Terminal 1.4 Specification Embedded Linux Performance Storage 8GB DDR3, 16GB EMMC Display Screen 8” LCD touch screen, Resolution: 1280 x 800, Contrast: 500:1 Screen Brightness 500 Lux Control Interface Temperature Measuring Range 32~43°C... -
Page 6: Cable Connection
2.0 Cable Connection 2CH alarm output Lock interface RS485 2CH alarm input Wiegand interface Exit Button Connector Note: * The wiegand terminal here is a wiegand input terminal. If you want to connect to an access controller, you shall set the Wiegand direction to “Output”. * The RS 485 interface of this device supports security module access. -
Page 7: Overview
3.0 Overview IR Temperature White Fill Measurement Light Module Infrared Light Microphone Cameras Anti-Tamper Button Micro SD Card Slot Display Screen Reset 18-Pin Interface USB Port Power Interface Speaker Front Left Right Back... -
Page 8: Installation
4.0 Installation 4.1 Ambient Illumination Requirement Make sure faces can be captured clearly. Avoid direct sunlight and backlight . The device should be at least 2 meters away from the light, and at least 3 meters away from the window or door. Direct/indirect 30°... -
Page 9: Pole Mounting
Quick Start Guide 2MP HD Face Recognition, Temperature Check and Face Mask Detection Terminal 4.3 Pole Mounting Note: Pole mounting bracket is not supplied with the device by default. Package Contents Drill Template Rubber Plug Screw (KM3*9) x4 L-Wrench Bracket Installation Ø33.5 32.0... -
Page 10: Height Requirement
Quick Start Guide 2MP HD Face Recognition, Temperature Check and Face Mask Detection Terminal 4.4 Height Requirement The recommended installation height (H) is from 1.30m to 1.45m which can cover human height of 1.4m ~1.9m in the detection area. It can be adjusted according to the actual scene. -
Page 11: Network Connection
5.0 Network Connection Make sure that the device and the PC are well connected via LAN. 2. Find the IP-Tool from the CD and then install it in the computer. After that, run the IP Tool as shown below. 3. Modify the IP address. The default IP address of this camera is 192.168.226.201. Click the information of the camera listed in the above table to show the network information on the right hand. - Page 12 Sales +44(0)1707 330541 Enquiries sales@genieproducts.co.uk Website www.genieproducts.co.uk...
