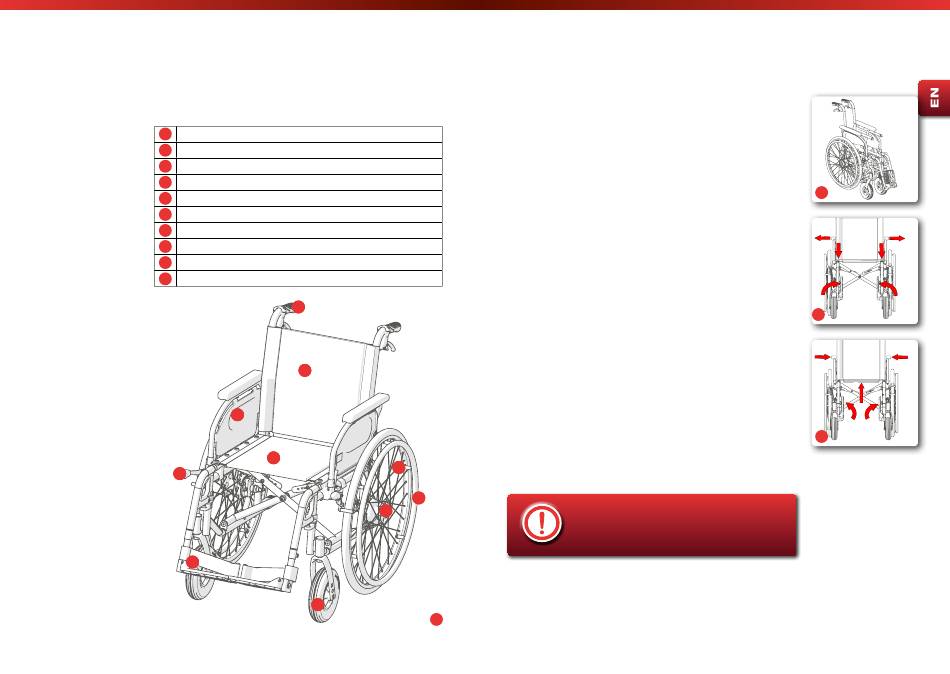

3.4. Overview

(see Fig. 2)
Push handle
A
Back cushion
B
Castor
C
Sideguard
D
Seat pad
E
Drive wheel
F
Quick-release axle
G
Parking brake
H
Handrims
I
Legrest with heel strap
J
H H H
J J J
52
| Standard wheelchair
A A A
B B B
D D D
E E E
F F F
G G G
L L C
Standard wheelchair |

4. Assembly/Adjustments

Your new B+B wheelchair will be delivered in a B+B original cardboard
box, assembled and folded.
In order to avoid transport damage, detachable attachments are
delivered separately with the product.
Refer to the technical data to see which options are possible on your
wheelchair (see Chapter 7).

4.1. Folding and unfolding

Unfolding
• Position the folding wheelchair next to you. (Fig. 3)
• Tip the wheelchair towards you until the weight is off one of the
drive wheels.
• Push the seat tubes apart and push them down with the flat of
your hand, until they lock into place in the bracket on the frame
(Fig. 4).
• The seat pad must be completely unfolded.
• Apply the left and right parking brakes on the drive wheels.
• Fit the legrests.
• You can now sit down
Folding
• Position the folding wheelchair next to you.
• Flip the footplates up (Fig. 5)
• Remove the seat cushion, take hold of the front and rear of the seat
pad and pull it up,
I I I
When folding and unfolding, watch your fingers
as there is a risk of pinching
