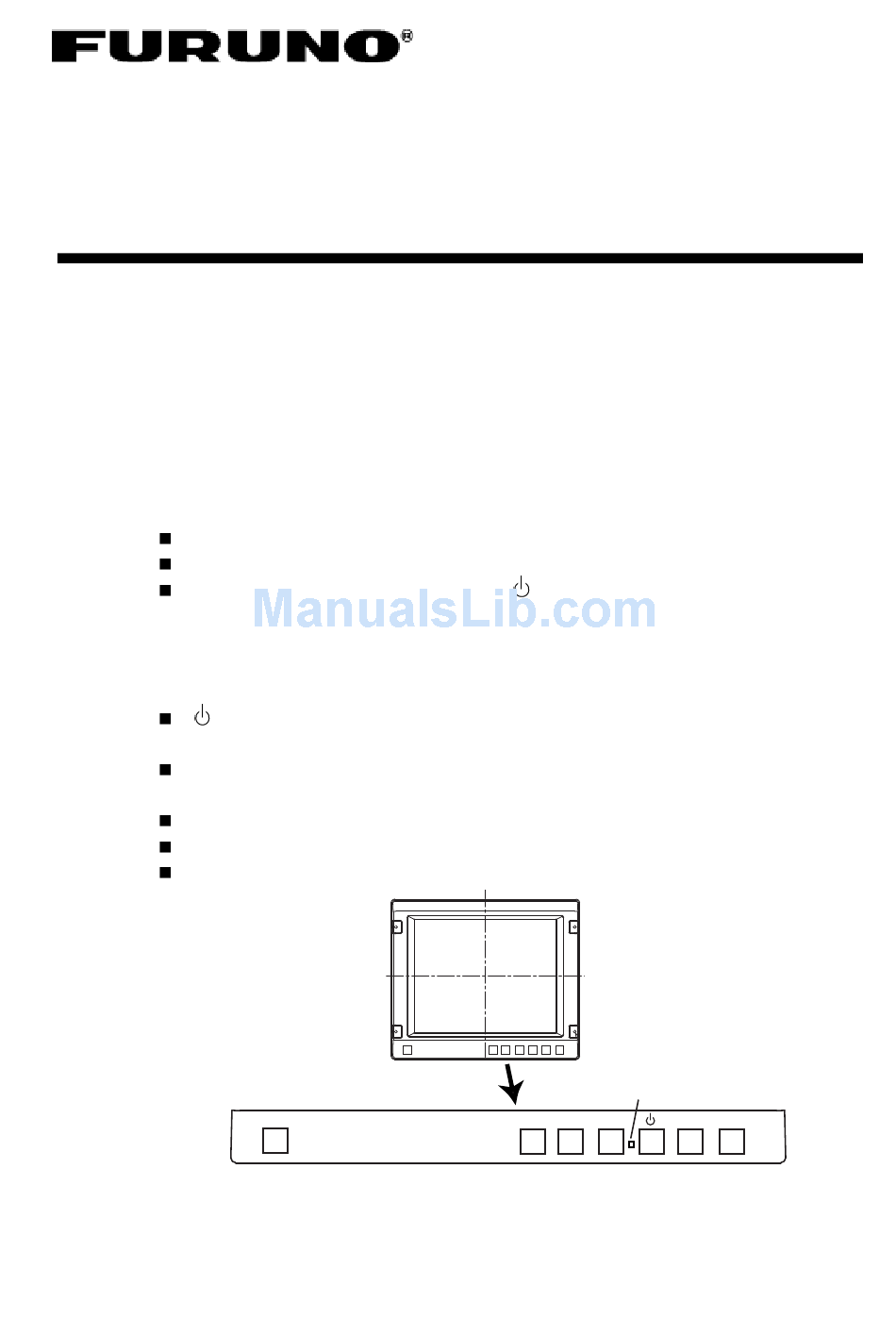

MONITOR UNIT MU-201CE/MU-231CE
OPERATOR'S MANUAL
This manual describes only the key operations of the monitor unit MU-210CE/MU-231CE.
For other details, refer to the installation manual and operator's manual of the ECDIS/radar.
1. Overview
When the monitor unit MU-201CE or MU-231CE is connected to a radar/ECDIS
with an RS-232C cable, the keys on the panel are locked, so independent
operation of the keys is not possible. Brilliance is controlled from ECDIS/radar.
Key function under lock condition
Simultaneous pressing of Lock and Menu keys: Opens/closes the menu.
Simultaneous pressing of Lock and Input keys: Choose an input signal.
Simultaneous pressing of Lock and
turn it off, press more than five seconds.
The keys are unlocked with menu operation. See "Keypad lock" on page 6. The
key functions under unlocked condition are as follows.
key:
+ and -: Adjusts the screen brilliance when no menu displayed. With menu
Input:
Menu:
Enter:
LED lamp: lights when the monitor unit is turned on.
Turns the power on or off. To turn the power off, press it more than
five seconds.
displayed, these choose an item from the menu.
Chooses input signal to display (when no menu is displayed).
Opens or closes menu.
Confirms menu setting.
Lock
keys: Turns the power on or off. To
Menu Enter
Input
Operation Panel
1
LED
-
+
Advertisement
Table of Contents
Related Manuals for Furuno MU-201CE
Summary of Contents for Furuno MU-201CE
- Page 1 For other details, refer to the installation manual and operator’s manual of the ECDIS/radar. 1. Overview When the monitor unit MU-201CE or MU-231CE is connected to a radar/ECDIS with an RS-232C cable, the keys on the panel are locked, so independent operation of the keys is not possible.
-
Page 2: Menu Operation
2. Menu Operation 1. Press the Menu key to open the main menu. The chosen menu item is circumscribed with a blue rectangle and its sub-menu is displayed below the main menu. 2. Press the + or – key to choose a menu and press the Enter key. 3. -
Page 3: Menu Functions
3. Menu Functions This section of the manual describes each function of each menu in detail. Each paragraph represents a given menu. On the left, an image shows all items that can appear in that menu, while on the right an item by item description is given, in the same order as shown at the screen. - Page 4 Main window image settings After installation or execution of Factory defaults (page 6), set the brightness, contrast, and red/green/blue temperatures as follows. MU-201CE Brightness Contrast Red temp Green temp 67% Blue temp Backlight Adjust the intensity of the backlight of the display.
- Page 5 General monitor settings Freeze frame This function, when activated, freezes the image on the screen, disregarding the input signal until deactivated. Source information This setting allows the user to disable the source information that appears on the upper left hand corner each time a source is detected or Input key is pressed.
- Page 6 User preferences Keypad lock Set whether the keypad is locked or not. When locked, the keypad does not answer to user commands, unless the LOCK key is pressed together with a desired key. If the monitor is connected to radar/ECDIS with an RS-232C cable, Off returns to On after turning the power off and then on.
- Page 7 Input selection Source Choose the input source for the main screen. As soon as a change is made here, the corresponding input will be selected and activated for display on the main screen. To change the active source for the PIP window, use the PIP menu. Source enable items These menu items allow the user to disable some sources.
- Page 8 Main screen acquisition settings This menu is available when PIP is set to ON. (See next page.) Mode selection Choose a memory slot in which to store display parameters for a given input signal. Once stored in a memory slot, the settings for the current input signal can be modified at will, and they will be reapplied when the same source is detected again.
