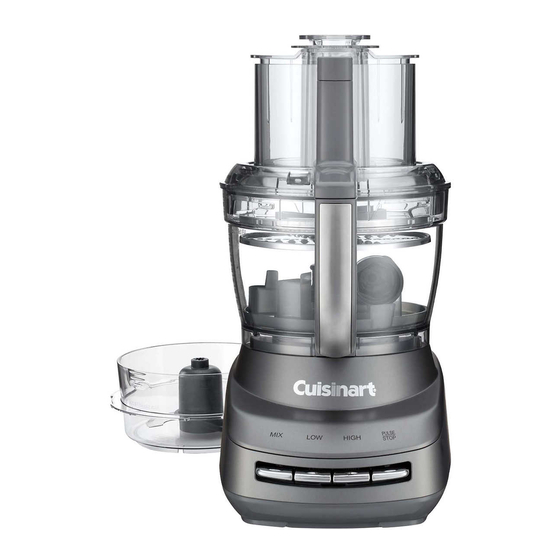

Cuisinart CORE CUSTOM Quick Reference Operation Manual

QUICK REFERENCE OPERATION GUIDE
1.
With the work bowl on the base, use the
handle to turn the bowl clockwise to lock it
into position.
3.
Using the metal chopping/mixing/
dough blade: Carefully place the blade
onto the stem adapter. Holding top of
stem adapter, lift and place over the work bowl
accessory adapter. Blade should rest on the bottom
of the work bowl.
5.
Place work bowl cover onto work bowl, with
the feed tube just to the right of center.
Turn clockwise to lock onto work bowl.
Align pusher with the feed tube opening on the work
bowl cover and slide down to
the bottom. Plug in the housing
base. The machine is now ready
for use.
2.
Carefully lift and remove the storage hub
from the work bowl.
4.
Using the adjustable slicing and
reversible shredding discs: Insert the
stem adapter without the metal blade.
Choose the desired disc and carefully place disc over
stem adapter, with the side being used facing up.
6.
Add ingredients to the work bowl, either
through the feed tube or directly into the
bowl. Press the Mix, Low, High or Pulse
paddle. The function will illuminate and the motor
will start. Press the Stop paddle when finished.
