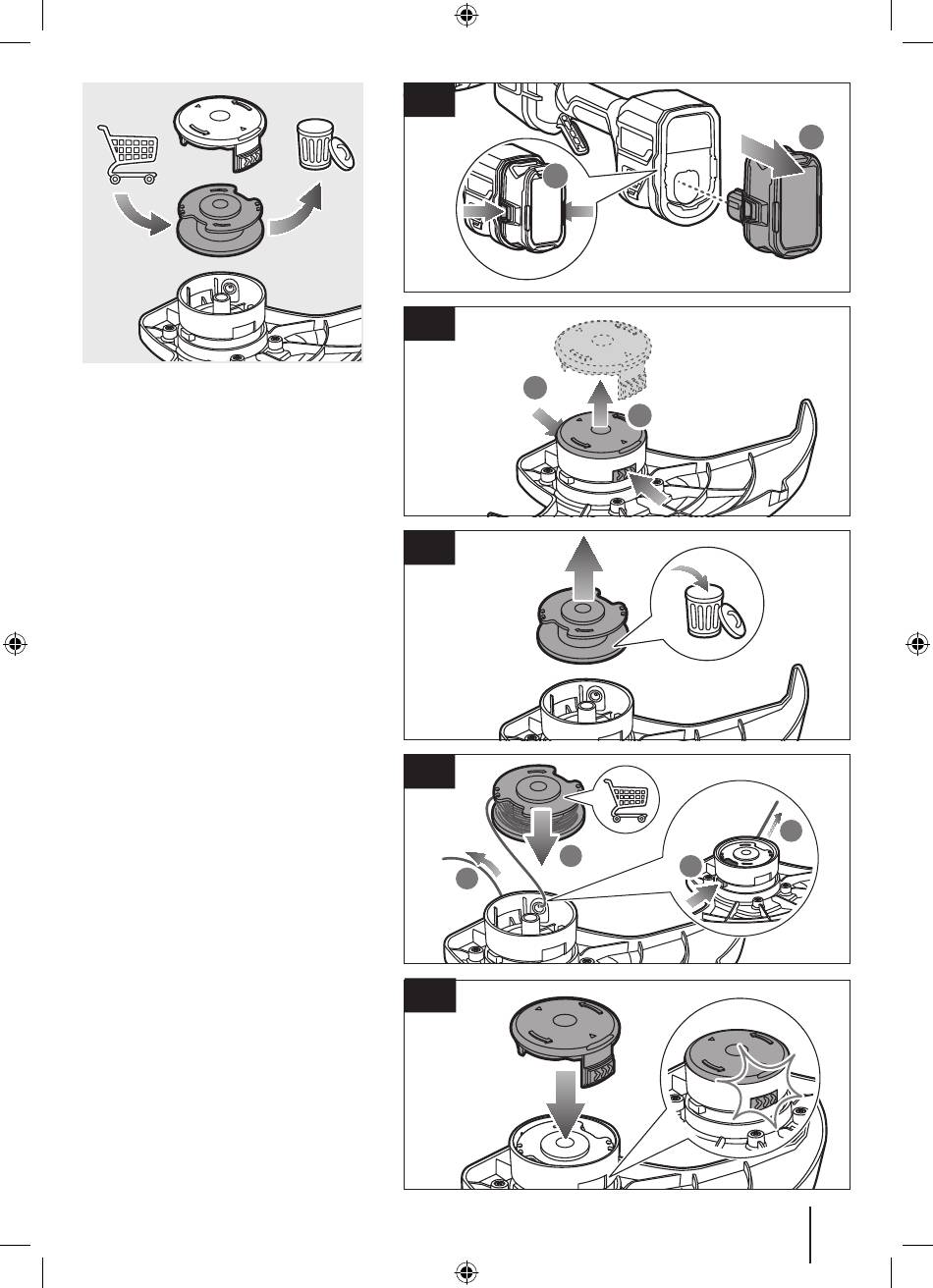

REPLACING THE SPOOL

1. Remove the battery pack.
2. Push the slider on the side of the spool
retainer, and remove the spool cover.
3. Remove the spool.
4. Thread the line of the new spool through
the eyelet. Install the new spool with the
line and slot aligned with the eyelet in the
string head. Push the slider, and pull the
line extending from the string head.
5. Install the spool cover until the spool
cover latch clicks into place.
1
1
2
1
3
4
2
1
5
2
2
4
3
Maintenance
