Ryobi RHTR1 Manual

RHTR1
WARNING: Wear full eye and hearing protection while operating the product. If
working in an area where there is a risk of falling objects, head protection must
be worn.
■ Wear heavy, long trousers, boots, and gloves. Do not wear loose-fitting clothing,
short trousers, jewellery of any kind, or use with bare feet. Make sure that the
cutting attachment is properly installed and securely fastened.
■ Never operate the product unless all guards, deflectors, and handles are
properly and securely attached.
■ Consider the environment in which you are working. Keep the working area free
from wires, sticks, stones, and debris, which if struck by the cutter, can become
thrown objects.
■ Never modify the product in any way. This may increase the risk of injury to
yourself or others.
4
Turn the product sideways.
WARNING: Do not use the product with the hedge trimmer blade. Remove the
battery pack before installing the grass shear to the product.
2
There is a rubber socket port cover on the base of the grass shear. Open the rubber
socket port cover.
WARNING: When installing the grass shear to the product, make sure to align the
barrel plug on the product to the barrel connector on the grass shear.
1
1
2

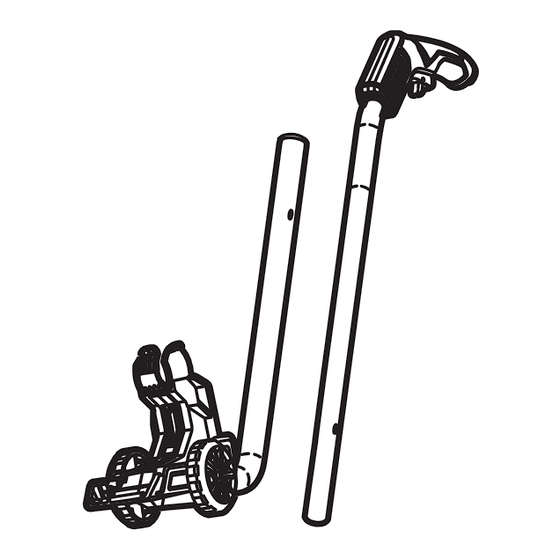

Attach the upper handle to the bottom handle. Install the bolt and nut to secure the
upper handle to the bottom handle.
WARNING: This port is not a power
inlet port. Do not connect any power
supply to the port.
5
Install the battery pack. Make sure that the latches on the battery pack click into
place.
1
2
2
3
4
Pull the barrel plug to extend it.
6
