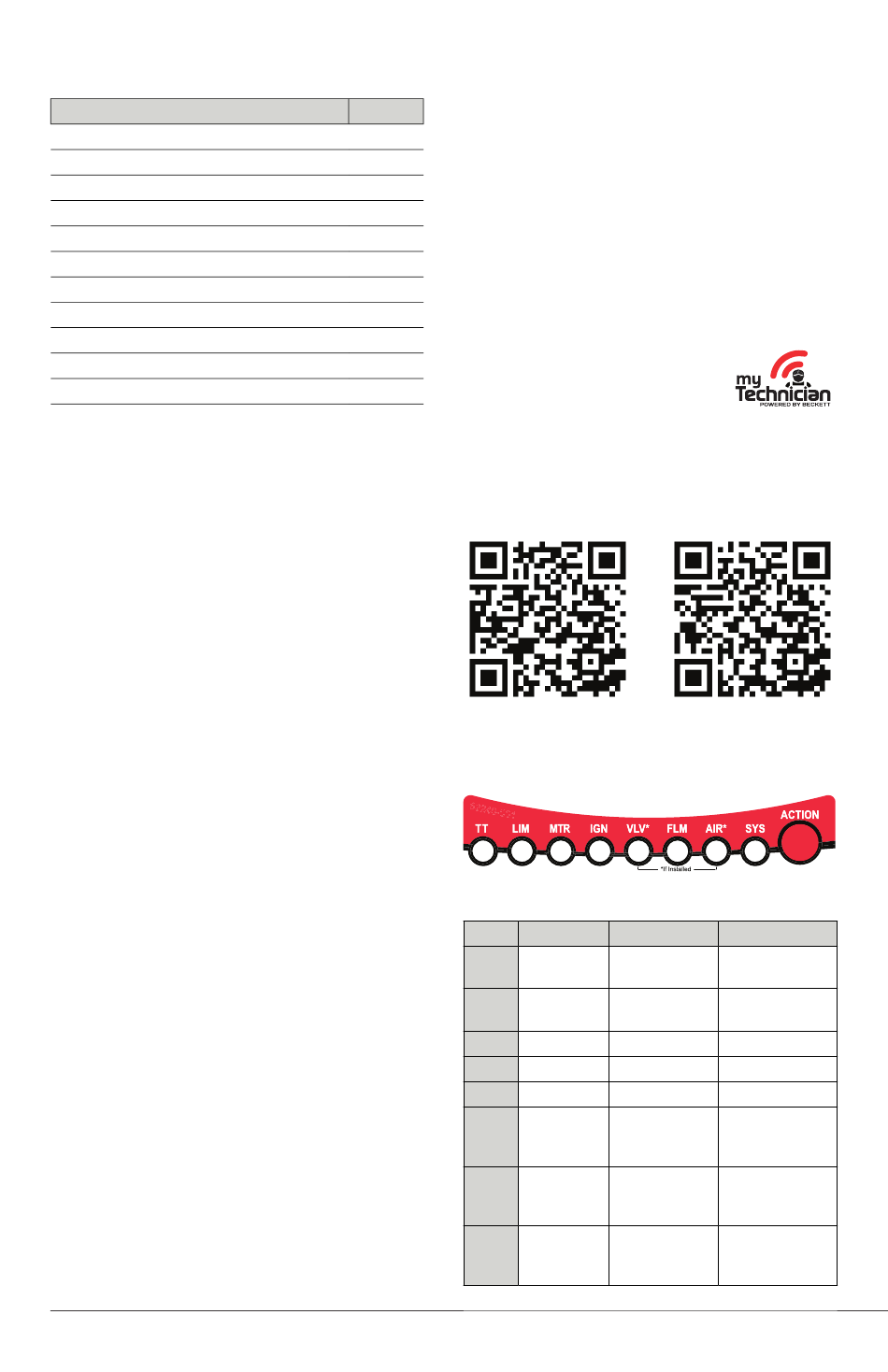

Note: All features in this document apply to both
the 7565 and the 7585 unless otherwise noted.
Features
◦
Diagnostics and programming through the
myTechnician™ app
◦
Last 50 cycles and last 15 faults
◦
Compatible with burners running #2 Fuel
oil, up to 100% biodiesel, and up to 100%
renewable diesel.
◦
Interrupted or Intermittent Duty Ignition
◦
Limited Recycle
◦
Limited Reset
◦
8 Status Lights
◦
Valve-On Delay (also known as "Pre-Purge")
◦
Motor-Off Delay (also known as "Post-Purge")
◦
Blocked Vent and/or Combustion Air Inputs
◦
Technician Pump Priming Mode
◦
Disable Function
◦
Water Resistant Case
◦
Encapsulated electronics (7585 only)
◦
Thermostat "C" terminal (for enhanced
compatibility)
Definitions
◦
Intermittent - ignition remains on during the
entire cycle
◦
Interrupted - ignition turns off after flame is proven
◦
Recycle - if flame is lost after Trial for Ignition
(TFI), then burner resets for 60 seconds and
retries automatically if it has not exceeded the
allowable number of retries.
◦
Relight - if flame is lost after Trial for Ignition
(TFI), then ignition automatically turns back on
2
◦
Blocked Vent (BV) - The control will not start a
heat cycle unless the switch is closed. The control
will Recycle if the switch opens after a successful
Page
ignition trial period. It must be closed during burner
2
cycles. Use this setting with a blocked vent switch.
2
◦
Combustion Air Proving (CAP) - The control will
2
not start a heat cycle unless the switch is open.
4
The control will Recycle if the switch does not
6
close after the motor is turned on and remain
7
closed throughout the rest of the heat cycle. Use
9
this setting with a power venter.
10
10
11
myTechnician™
11
For displaying status information, programming
control timings, and viewing the history log, the 7565
and 7585 are compatible with the myTechnician ™
app available from your device's app store.
myTechnician App
for Android Devices
Table 1 - Status Lights
TT
LIM
MTR
IGN
VLV * On = Running On = Fault
FLM
AIR * On = All
SYS
Asterisk = If installed
myTechnician App
for Apple Devices
Green
Red
On = TT
n/a
Closed
On = Limit
n/a
closed
On = Running On = Fault
On = Running On = Fault
On = Flame
On = no flame
Present
detected
On = Blocked
installed
flue
switches ok
On = Power
On = Hard
Lockout Flashing
= Soft Lockout
Yellow
n/a
n/a
n/a
n/a
n/a
On = Flame out of
sequence or cad
cell shorted
On = Inlet air fault
On = Pump prime
Flashing = Recycle
