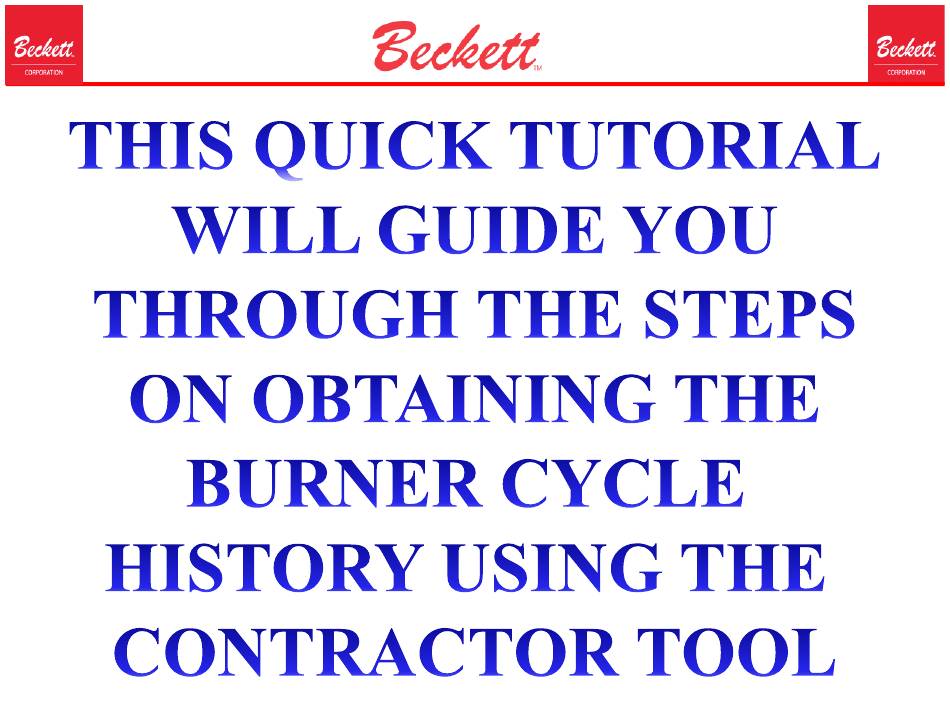

- Page 2 • The Contractors Tool cord set plugs into the GeniSys communication port for programming, diagnostics and service history. • Let’s check service history.
- Page 3 COM port 1 Begin by plugging in the Contractors Tool...
- Page 4 STANDBY 8:15 > 50 KOHM 115 V FROM THIS SCREEN PRESS THE NEXT BUTTON...
-
Page 5: View History
VIEW HISTORY PRESS THE SEL/YES KEY... - Page 6 LAST CYCLES HISTORY PRESS THE SEL/YES KEY...
- Page 7 1 CYCLES AGO 8:23 RUN TIME PRESS THE NEXT KEY...
- Page 8 1 CYCLE AGO 0:01 TO LIGHT PRESS THE NEXT KEY...
- Page 9 1 CYCLE AGO 500 OHMS MAX PRESS THE NEXT KEY...
- Page 10 1 CYCLE AGO 420 OHMS AVG PRESS THE NEXT KEY...
- Page 11 1 CYCLE AGO AVG VOLTS 115V PRESS THE NEXT KEY...
- Page 12 1 CYCLE AGO HEAT CALL END PRESS THE NEXT KEY...
- Page 13 1 CYCLE AGO 1:12 OFF TIME PRESS THE NEXT KEY...
- Page 14 1 CYCLES AGO 8:23 RUN TIME PRESS THE SEL/YES KEY TO ADVANCE TO THE DATA FOR CYCLE NUMBER 2...
- Page 15 • The heat cycle can end in the following ways: HEAT CALL END (call for heat was satisfied) PUMP PRIME (control was sent to the pump prime mode) MANUAL SHUTDOWN (control button was held) LOW VOLTAGE (control shut down because measured voltage during run was < 78 V) RECYCLE (Losing the flame during the run cycle) •...
