5004258
09/08
18-2-675
5th Edition
INSTRUCTION MANUAL

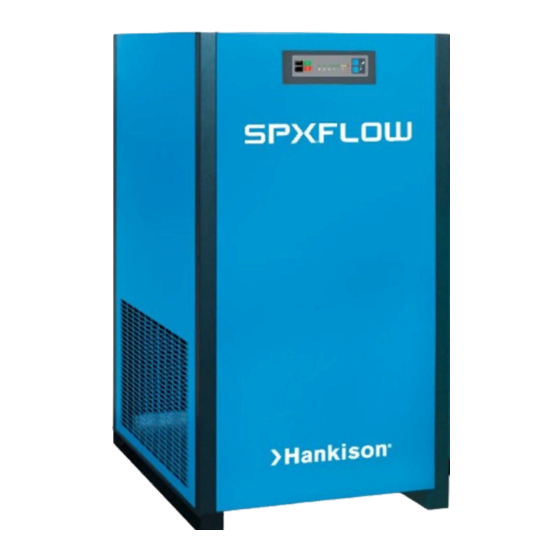

HPET Series with ColdWave™ Technology
Models:
HPET - 4, HPET - 6, HPET - 7.5,
HPET - 10
CONTENTS
GENERAL SAFETY INFORMATION .............................. 2
RECEIVING, MOVING, AND UNPACKING .................... 2
1.0 INSTALLATION ........................................................ 3
2.0 OPERATION ............................................................ 5
3.0 MAINTENANCE ....................................................... 6
SIZING ............................................................................ 7
ENGINEERING DATA .................................................... 8
P&I DIAGRAM ................................................................ 9
WIRING DIAGRAMS ............................................... 10-12
DIMENSIONS / WEIGHTS ........................................... 13
TROUBLESHOOTING GUIDE ..................................... 14
PARTS LIST ................................................................. 15
WARRANTY ................................................................. 16
SERVICE DEPARTMENT: (724) 746-1100
HIGH PRESSURE
REFRIGERATED
TYPE
COMPRESSED
AIR DRYERS
Advertisement
Table of Contents
Related Manuals for HANKISON HPET Series
Summary of Contents for HANKISON HPET Series
-
Page 1: Table Of Contents
5004258 09/08 18-2-675 5th Edition INSTRUCTION MANUAL HPET Series with ColdWave™ Technology Models: HPET - 4, HPET - 6, HPET - 7.5, HPET - 10 HIGH PRESSURE CONTENTS GENERAL SAFETY INFORMATION ......2 REFRIGERATED RECEIVING, MOVING, AND UNPACKING ....2 1.0 INSTALLATION ............ -
Page 2: General Safety Information
RECEIVING, MOVING, AND UNPACKING GENERAL SAFETY INFORMATION A. RECEIVING PRESSURIZED DEVICES: This shipment has been thoroughly checked, packed and This equipment is a pressure containing inspected before leaving our plant. It was received in device. good condition by the carrier and was so acknowledged. • Do not exceed maximum operating pressure as shown on equipment Check for Visible Loss or Damage. If this shipment shows serial number tag. evidence of loss or damage at time of delivery to you, in- sist that a notation of this loss or damage be made on the • Make sure equipment is depressurized before working delivery receipt by the carrier’s agent. on or disassembling it for service. -
Page 3: Installation
IMPORTANT: READ PRIOR TO STARTING THIS EQUIPMENT 1.0 INSTALLATION 1.1 Location For typical placement in a compressed air system, see drawing. B. Air compressor intake – Locate air compressor so that Aftercooler Dryer contaminants potentially harmful to the dryer (e.g. ammo- nia) are not drawn into the air system. Compressor Oil Removal Separator C. Free Air Flow - Allow a minimum of 36 inches (914 mm) Filter clearance for free air flow. Service - To facilitate maintenance leave 36 inches (914 mm) of clearance in front of dryer. D. Standard units are designed to operate in ambients: Air-cooled: 40 to 110°F (4 to 43°C). - Page 4 1.2 Mounting B. For manual draining, convenient dryer depressurization, and drain valve maintenance, a three-way valve assembly Mount the dryer on a level solid surface. Holes are provided in is installed between the drain port on the moisture separa- the dryer base to permanently mount the dryer to the floor. tor and the drain valve. On all models, the three-way valve is mounted to the base pan. Review the following 1.3 Piping Connections for proper drain function: A. Air Inlet - Connect compressed air line from air source • Automatic Draining - Valve handle should be positioned to air inlet. (Reference markings on dryer or see callout parallel to the valve body (as shown), with the arrow...
-
Page 5: Operation
2.0 OPERATION If water is present downstream of the dryer, always verify that any condensate drains installed upstream of 2.1 Minimum/Maximum Operating Conditions the dryer are draining properly before attempting to readjust Maximum inlet air pressure: 725 psig (50 barg) the LED setting. B. Minimum inlet air pressure: 15 psig (1.0 barg) 1. For minimum inlet air pressures that fall between column values, the setting for the lower pressure is recommended. C. Maximum inlet air temperature: 120°F (49°C) (i.e. select the 300 psi column values for 324 psi inlet pres- D. Maximum ambient temperature: sure listed in Table 1.) Air-cooled models: 110°F (43°C) 2. Where the dryer is consistently operating at less than max- Water-cooled models: 130°F (54°C) imum capacity, it may be possible to increase the LED set E. Minimum ambient temperature: 40°F (4°C) point to minimize air loss. Discretionary adjustments to the dryer should only be made on a hot, humid day when the maximum expected air load is flowing through the dryer. -
Page 6: Maintenance
3.0 MAINTENANCE 2.4 Timer Drain Programming Mode Dew Point Drain Interval 3.1 Condenser Coil Temperature Selector Indicator A. Air-cooled - clean off accumulated dust and dirt monthly or as necessary in dirty environments. Condensate Draining (Flashes in B. Water-cooled - clean strainer monthly, more often if programming mode) required. Shut off water, remove small plug to relieve pres- sure, then remove large plug to remove strainer. Clean (LED illuminated Drain Interval indicates drain... -
Page 7: Sizing
SIZING Procedure for Separator / Filter Element Replacement THIS FILTER IS A PRESSURE CONTAINING Determining dryer capacity at actual operating conditions DEVICE. DEPRESSURIZE BEFORE SERVICING. To determine the maximum inlet flow capacity of a dryer at vari- 1. Isolate dryer (close inlet and outlet valves if installed) or ous operating conditions, multiply the rated capacity from Table shut off air supply. 1 by the multipliers shown in Table 2. 2. Remove front panel and depressurize filter by slowly open- Example: How many scfm can an air-cooled model 4 handle ing manual drain by-pass valve. -
Page 8: Engineering Data
ENGINEERING DATA Models Air System Data Maximum / Minimum Inlet Air Pressure (compressed air at inlet to dryer) 725 psig (50 barg) / 15 psig (1.0 barg) Maximum / Minimum Inlet Air Temperature (compressed air at inlet to dryer) 120°F (49°C) / 40°F (4°C) Maximum / Minimum Ambient Temperature Air-cooled: 110°F (43°C) / 40°F (4°C), Water-cooled: 130°F (54°C) / 40°F (4°C) Outlet Air Temperature (nominal at rated conditions) -
Page 9: P&I Diagram
P&I DIAGRAM Models 4, 6, 7.5 and 10... -
Page 10: Wiring Diagrams
WIRING DIAGRAM Models 4, 6, 7.5 and 10 (230-400-460V/3/50-60 Hz) (Page 1 of 2) - Page 11 WIRING DIAGRAM Models 4, 6, 7.5 and 10 (230-400-460V/3/50-60 Hz) (Page 2 of 2)
- Page 12 WIRING DIAGRAM Models 4, 6, 7.5 and 10 (575-460/3/60 Transformer Pack) 575V VOLTAGE OPTION TRANSFORMER 1 TRANSFORMER 2 CUSTOMER CONNECTION CONNECTION 460/3/60 575/3/60 575V 460V 575V - 460V TRANSFORMER BANK...
-
Page 13: Dimensions / Weights
DIMENSIONS / WEIGHTS MoDEl DIM “X” – COOLING WATER I/O CONNECTIONS 3/4-14 NPT (FEMALE) 1-14 NPT (FEMALE) 1.1/4-11.5 NPT (FEMALE) DIM “Y” – AIR I/O CONNECTIONS 3"-8 NPT (MALE) / Rc 3"-11 BSPT (MALE) WEIGHT, lbs (kg) 889 (404) 939 (427) 1204 (547) 1329 (604) NoTE: Dimensions and Weights are for reference only. -
Page 14: Troubleshooting Guide
TROUBLESHOOTING GUIDE SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION A) Water downstream of dryer 1. Residual free moisture remaining in Blow out system with dry air. downstream pipelines. 2. Air bypass system is open. Check valve positions. 3. Inlet and Outlet connections are reversed. Check for correct connection. 4. Temperatures surrounding air lines Insulate or heat trace air lines exposed to low downstream of dryer have dropped below ambients or dry air to lower dew point. -
Page 15: Parts List
PARTS LIST PARTS DESCRIPTION Compressor 4006286 3210944 3210945 3221271 Fan Motor 3233147 4010923 4010925 4010925 Fan Blade 3219400 3094035 3210272 3210272 Crankcase Heater 4010508 4010508 3223269 3223269 Low Refrigerant Pressure Switch 3230768 3230768 3230768 3230768 High Refrigerant Pressure Switch (AC) 3230770 3230770 3230770... -
Page 16: Warranty
CAnonSbUrG, PA 15317-1700 U.S.A. TEL | 724 | 745 | 1555 FAX | 724 | 745 | 6040 Email: hankison.service@spx.com www.hankisonintl.com © 2008 SPX Corporation. All rights reserved. Improvements and research are continuous at Hankison. Specifications may change without notice.
