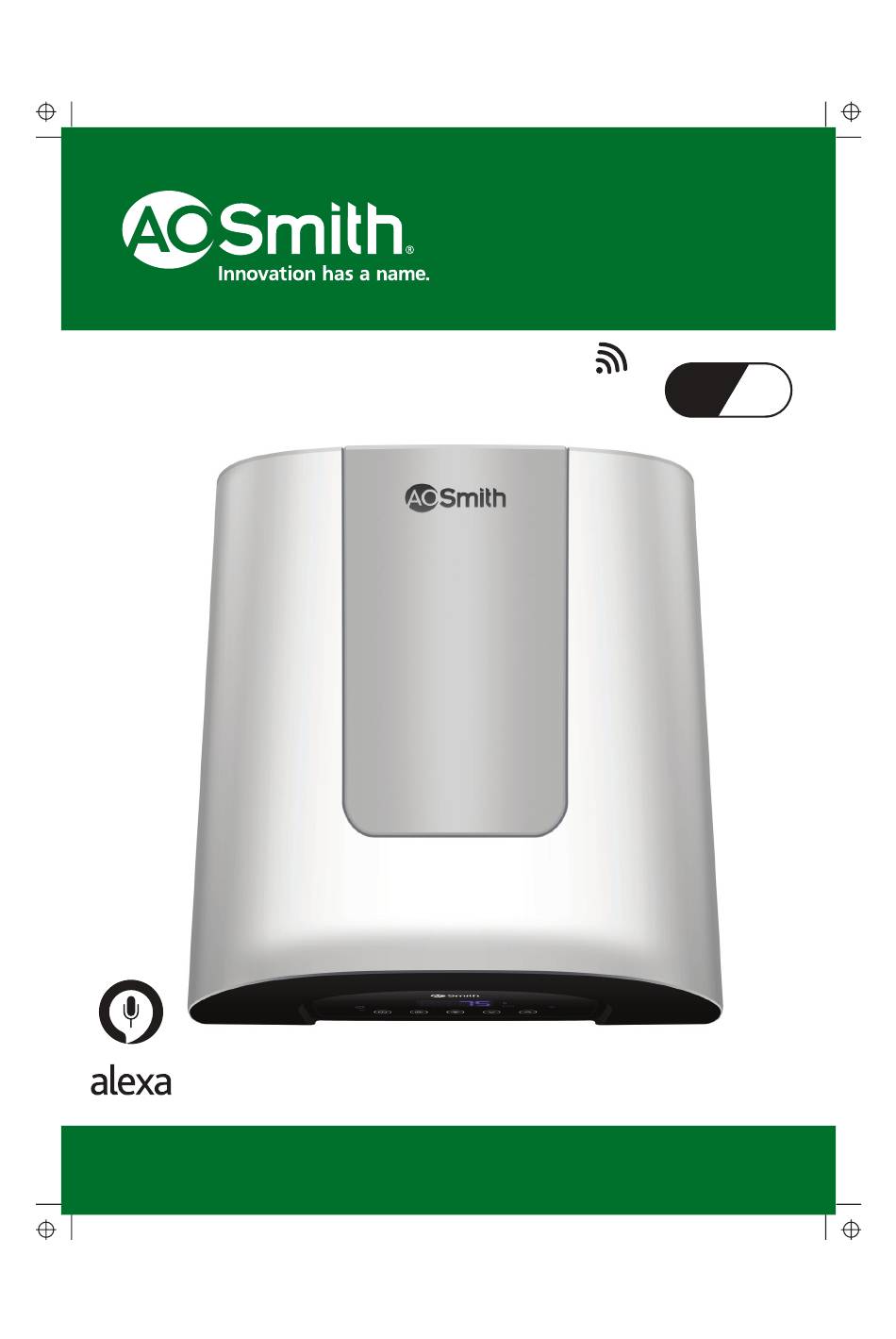

- Page 1 Water Heater HeatBot®-Wi-Fi 15 and 25 Litres Built to be Smart. Built to be Beautiful. E n a b l e d ® H e a t B o t ® WORKS WITH W i - F i User Manual...
-
Page 3: Table Of Contents
Contents General Information ............... 1 Safety Instructions . -
Page 5: General Information
General Information On Receipt It is our policy to promote safe delivery of all orders. This product shipment has been thoroughly checked, packed and quality certified before leaving our factory. Visible Loss or Damage If any of the goods called for on the bill of lading or express receipt are damaged or the quantity is short, do not accept them until the freight or express delivery agent makes an appropriate notation on your freight bill or receipt. -
Page 6: Safety Instructions
Safety Instructions Your safety and the safety of your loved ones is paramount. There are several safety related messages in this manual, which have been provided during various steps such as the installation, operation and maintenance of your HeatBot®-Wi-Fi Water Heater. These messages point out potential hazards and also educate on how to reduce any potential risks. -
Page 7: Specifications
Specifications Model name HeatBot®-Wi-Fi Volume [L] Power [W] 2000 Voltage/Frequency [V/Hz] 230~/50 Actual Stdg. Loss [kWh/24h/45°C diff.] 0.435 0.511 Reheating time for 35°C rise [in min.] Temperature range [°C] 25-75* Rated N/cm water Water head (metres) pressure Inlet/Outlet connections [inch] ½... - Page 8 Figure 2 With Service Cover Without Service Cover Bottom view Side view Part Description Part Description Cold water inlet Red Cap Hot water outlet Heating Element and Anode Multi-function Safety valve Thermal Cut-out Digital display Thermistor Service Cover Wall Mount Slot Blue Cap...
-
Page 9: Safety Precautions
Safety Precautions During Installation Do not install the Water Heater where there is Do not install the Water Heater where water direct sunlight or rain. It is has to be installed splashes on the Water Heater. indoor only. Figure 4 Figure 3 CAUTION CAUTION... - Page 10 Installation (contd...) • Use Mounting Template to mark holes (Step • Insert the Expansion Anchor into the hole (Step 1). • Use a drill bit with diameter of 10 mm to • Insert the Mounting screw over the drill 2 holes at least 80 mm deep in the wall Expansion Anchor and tighten the (Step 3).
-
Page 11: Plumbing Instructions
Plumbing instructions Figure 10 Installation Diagram Te on *Flexible tape Cold Hose Water Tap Water Tap **Multi-function Safety valve Te on tape Discharge Outlet *Flexible Hoses to be procured by the customer, not part of standard product. **Multi-function Safety valve comes included with the Water Heater. 1. -
Page 12: Operation
CAUTION • The Multi-function Safety valve should never be removed or blocked by any means to prevent it from dripping or releasing the excess pressure inside the heater. Failure to do so may result in damage to the Water Heater and injuries to the user. This will also make the warranty null and void. - Page 13 Connecting to Electrical Supply Figure 12 The power cord and plug are connected with this Water Heater. Find a separate socket for power plug and make sure the socket is in firm contact with the plug. Ensure that reliable earthing has been done. CAUTION •...
-
Page 14: Downloading And Installing Ao Smith Smart App
Downloading and Installing AO Smith Smart App You can download AO Smith Smart App from Google Play Store or Iphone App Store and install as per steps shown below. “AO Smith “AO Smith “Sign Up” 1. Search 2. Install 3. Click on 4. -
Page 15: Ao Smith Smart App
Connecting HeatBot®-Wi-Fi Water Heater to the Wi-Fi connection through your AO Smith Smart App Switch ON the Water Heater and follow the steps as shown below. ”Add ”Water ”Wi-Fi name” 9. Click on 10. Select 11. Enter the or enable the Heater (Wi-Fi)”... - Page 16 Figure 13 Wi-Fi LED indicator Press and hold for 3 sec 12. If Wi-Fi LED is blinking fast, check rapid 13. Now the Water Heater will be added and blinking option in App and click on ”Next”. configured with cloud.
- Page 17 AO Smith Smart App Overview Figure 14 Temperature Setting Increases or decreases the set temperature by scrolling over pattern or using + or - option. Set Temperature Displays the set temperature of the Heater. Current Temperature Displays the current temperature of the Heater. Working condition Indicates that the Heater is in Auto or Standby or Sleep mode.
- Page 18 Initial Power When the Water Heater power supply plug is connected, it is in initial power on state, i.e. the Water Heater is ready for heating the water. The LED display will perform the diagnosis function and all indicators will glow and then switch off. Power ON/OFF Press the Power button on the LED display or in App to switch on the Water Heater.
- Page 19 Auto mode This mode is normal Water Heater working mode and the Heating element will be ON when the water temperature is less than 5⁰C of set temperature. Timer mode: Timer mode is set, when the Water heater has to switch ON only on specified timings and other time it will be in Standby mode.
-
Page 20: Configuring Heatbot®-Wi-Fi Water Heater With Alexa
Configuring HeatBot®-Wi-Fi Water Heater with Alexa • Configure the HeatBot®-Wi-Fi Water heater in the ”AO Smith Smart App” • Change appropriate name for your devices which will be used in “AO Smith Smart” skills; 1. Download Amazon “Alexa” APP from Android ,iOS or Amazon APP market (Refer “Downloading and Installing AO Smith Smart App”... - Page 21 Draining the Water Heater Tank Whenever the Water Heater is not used for an extended period or if the product is below freezing temperature, you will need to unplug the unit and drain it. Figure 19 1. Switch OFF the electric supply to the Water Heater.
-
Page 22: Troubleshooting
Troubleshooting The Water Heater may not operate as desired if used incorrectly or there is a minor cause, even though the product has no fault. In these cases, check the following issues to solve simple problems without the help from the Customer Care Centre. If the problem does not solve after checking the following issues, call Customer Care Centre. -
Page 23: Circuit Diagram
Error Messages and Actions Error Code Reason Self-diagnostic / Action Temperature Sensor circuit short or open. Call Customer Care Centre. High Temperature error. Call Customer Care Centre. Dry Heating Error Call Customer Care Centre. Note: • The APP will display the Error codes with description and LED display panel will display only the Error codes. -
Page 24: O . Smith Advantage
A . O . Smith Advantage . . . Operate your Water Heater from anywhere with A. O. Smith Smart App Longer life in toughest water conditions with Blue Diamond® Glass Lined Tank Long lasting performance with glass coated incoloy heating element Control your Water Heater with Alexa voice integration Smart modes suited for specific hot water needs Double Protection for your family with Thermal cut-out and safety valve...
