Dimplex CEL50 Owner's Manual page 16

Fireplace Installation
• Plug in (you may run the power
cord out of the framed wall
opening to an existing outlet
or install an outlet on a nearby
wall stud within the wall).
• Hard wire the fireplace
(recommended). Follow the
hard wiring instructions on
page 9.
WARNING: Do not attempt
to wire your own new outlets or
circuits. To reduce the risk of fire,
electric shock or injury to persons,
always use a licensed electrician.
Ensure that the On/Off Switch
is set to the Off position (refer to
Operation section) and that the
circuit on which the fireplace is to

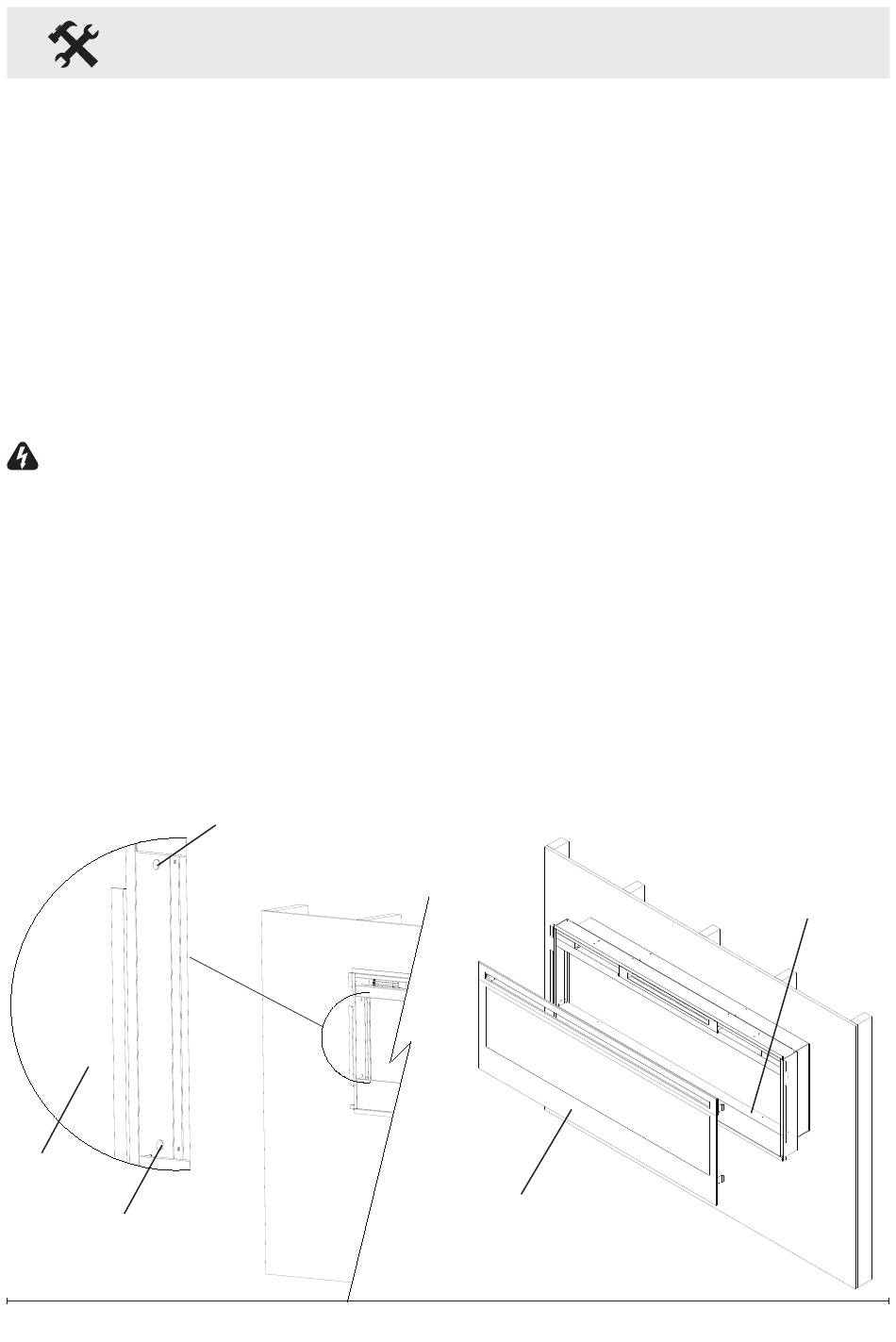

Figure 14
Wall
surface
Mounting hole
16
Mounting hole
be installed has the power cut off at
the service panel until installation is
complete.
3. Lift fireplace and insert into
opening. The fireplace's
mounting trim should be flush
against the wall (Figure 14).
4. Use bubble level (supplied) to
level the fireplace within the
framing. Adjust as required.
5. Drive four supplied mounting
screws through the four
mounting holes located on
the inside surface of the
fireplace chassis, into wall studs
(Figure 14).
6. Refer to Front Glass Installation
section, page 17 for final
installation procedures.
Figure 15
Front glass
assembly
Front tray
www.dimplex.com
