Flush Mounted Installation - 2X8 Framing - Dimplex CEL50 Owner's Manual

Fireplace Installation
Figure 12
Mounting
hole
electric shock or injury to persons,
always use a licensed electrician.
Ensure that the On/Off Switch
is set to the Off position (refer to
Operation section) and that the
circuit on which the fireplace is to
be installed has the power cut off at
the service panel until installation is
complete.
3. Lift fireplace and insert into
opening (Figure 11).
4. Use bubble level (supplied) to
level the fireplace within the
framing. Adjust as required.
5. Drive four supplied mounting
screws through the four
mounting holes located in each
corner of the fireplace chassis,
into wall studs (Figure 12).
6. Refer to Front Glass
Installation section, page 17 for
final installation procedures.

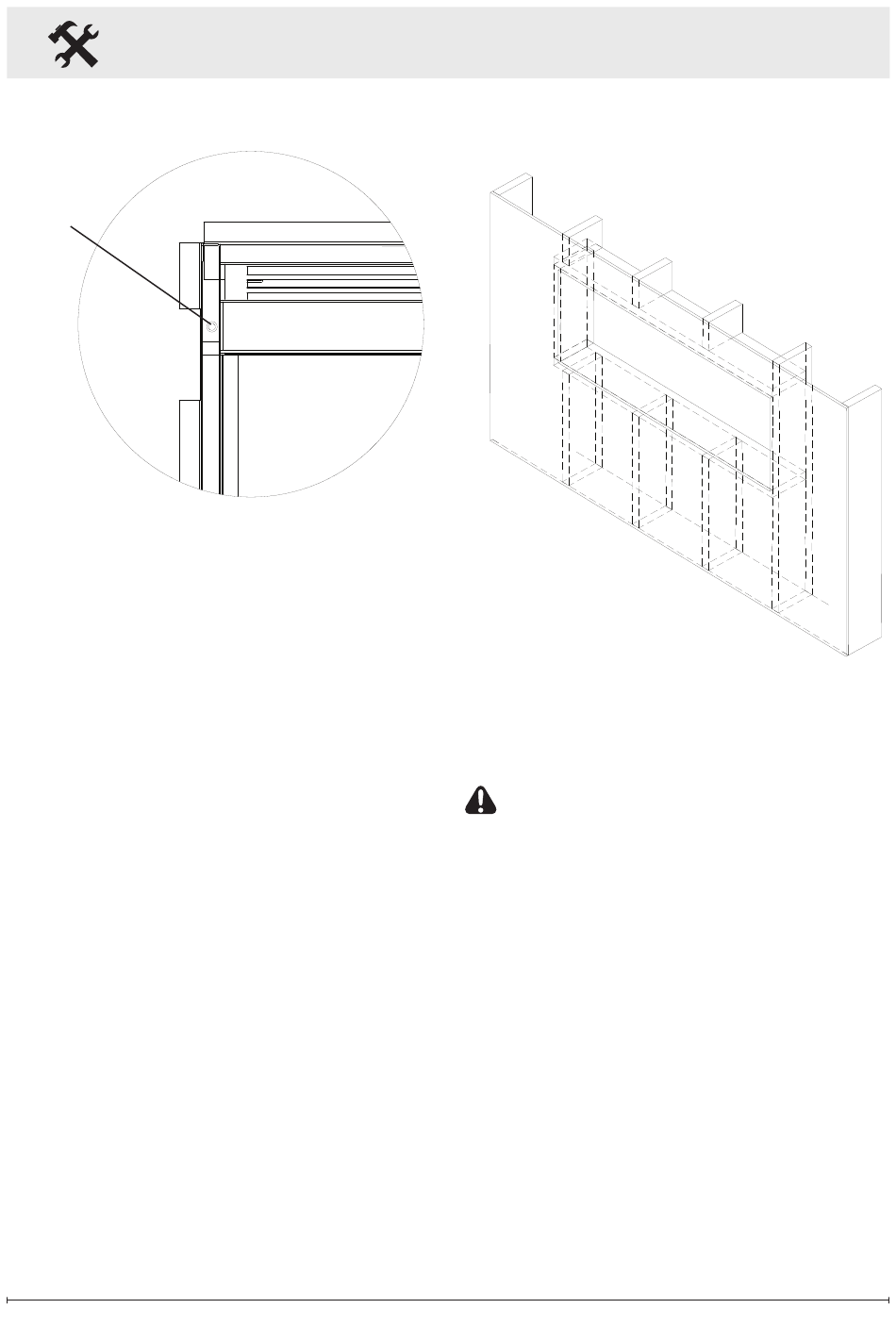

Figure 13
Flush Mounted Installation
- 2x8 Framing
CAUTION: Two people may
be required for various steps
of this procedure.
1. Prepare a wall with a framed
opening of 49" (124.5 cm)
wide x 18½" (47 cm) high
(Figure 13).
!
NOTE: The sizing has
allowed for 1/4" (6.4mm) around
the fireplace insert for ease of
installation. This fireplace does
not require any additional venting.
2. Choose your method of
supplying power to the unit:
2 x 8 Framing
15
