31
2. Grease the front caster.
3. Remove the 1/4-28 grease fitting and reinstall the 1/4-28
bolt.
4. Repeat the process for the other side of the machine.

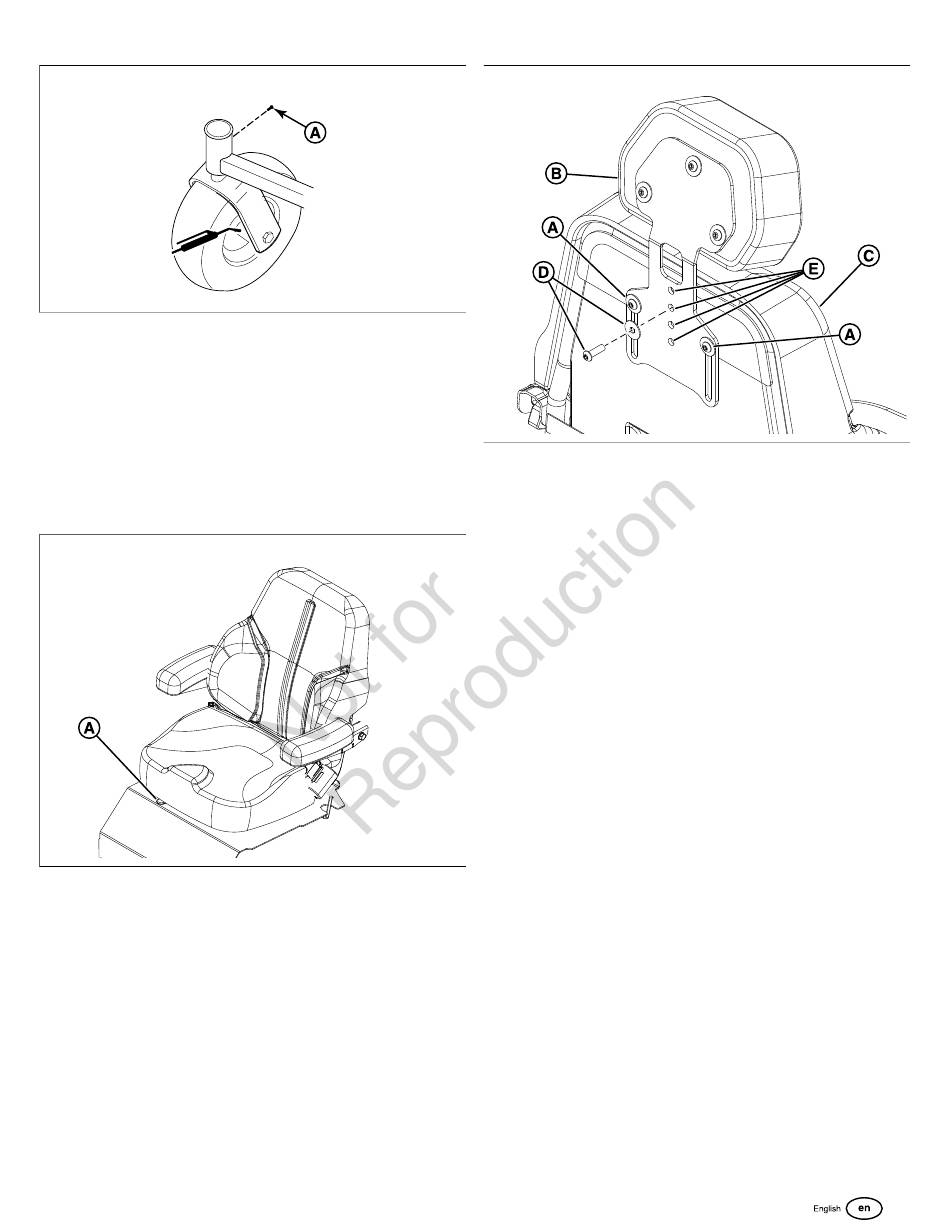

Seat Adjustment

The seat can be adjusted forward and back. Move the lever
(A, Figure 32), position the seat as desired, and release the
lever to lock the seat into position.
32

Adjusting the Height of the Head Rest

This unit is equipped with an adjustable head rest assembly
that can be positioned at four different heights.
1. Loosen the outer hardware (A, Figure 33) that secures
the head rest assembly (B) to the back of the seat (C).
33
2. Remove the center hardware (D).
3. Move the head rest assembly up and down until the
desired head rest height is achieved and the hole in the
seat align with one of the four (4) holes (E) in the head
rest assembly.
4. Install the center hardware into the head rest assembly
and the back of the seat.
5. Tighten the outer hardware.

Ground Speed Control Lever Adjustment

The control levers can be adjusted in three ways. The
alignment of the control levers, the placement of the levers
(how close the ends are to one another) and the height of the
levers can be adjusted.
To Adjust the Handle Alignment
Loosen the mount bolts (A, Figure 34) and pivot the lever(s)
(C) to align with each other.
27
