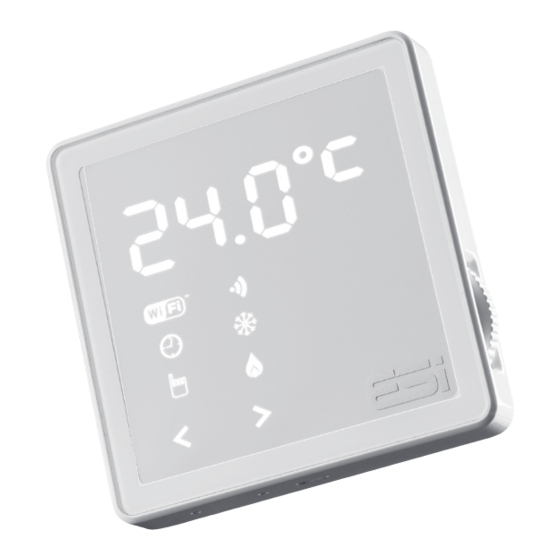

ESI 5 Series User Instructions
Wifi programmable room thermostat
Hide thumbs
Also See for 5 Series:
- User instructions (20 pages) ,
- Instructions for installing and using (20 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for ESI 5 Series
Summary of Contents for ESI 5 Series
- Page 1 ESRTP5WIFI 5 Series WiFi Programmable Room Thermostat User Instructions...
- Page 2 Thank you for choosing ESi Controls. All our products are tested in the UK so we are confident this product will reach you in perfect condition and give you many years of service. However, for additional peace of mind, we recommend you register your product online at www.esicontrols.co.uk/warranty for your...
-
Page 3: Table Of Contents
Contents User Instructions 1. Quick Operating Guides Display and Button Functions Quick Command Guide 2. Setting the Time and Date (tInE) 3. Operation Modes Auto Manual 3.1.1 Off / Frost Protection 3.1.2 All Day Mode (AL) Holiday Mode (HOLI) Boost (bOst) 4. - Page 4 Contents 6. WiFi Coupling (CoUP) Setting up the WiFi Connection Explanation of the WiFi Connection...
-
Page 5: User Instructions
User Instructions... -
Page 6: Quick Operating Guides
1. Quick operating guide Display and Button Functions Temperature, time and data display WiFi working status (for ESRTP5WIFI WiFi model only) RF working status (for ESRTP5RF RF model only) Auto operation mode Off / Frost protection mode Manual operation mode Flame symbol when system calling for heat Cancels and returns to the previous menu Either confirms and saves the setting, or moves you to... -
Page 7: Quick Command Guide
Quick Command Guide... -
Page 8: Setting The Time And Date (Tine)
2. Setting the time and date (tInE) N.B. When first powered or in the event of a power loss the time will be flashing and the time and date will need to be set. In the event there is no Wi-Fi present the Time and Date can be set by the following: Follow steps 2-6 to set the time on first setup. -
Page 9: Operation Modes
3. Operation modes Operation Modes: AUTO, MAN, OFF. Press in homescreen to choose operation mode. AUTO • In Auto mode, choose All Day mode. See section 3.2 for details. • In Auto mode, choose Holiday mode. See section 3.3 for details. •... -
Page 10: Manual
3.1.1 Permanent manual override of set temperature. 1. In Homescreen, press to select MAN. 2. Turn the dial to adjust temperature. 3. Press to confirm setting and return to homescreen Permanent set temperature range: 5°C - 35°C. 3.1.2 Turn the heating off permanently. 1. -
Page 11: Holiday Mode (Holi)
Holiday Mode (HOLI) 1. In homescreen, press to select Auto mode 2. Press and hold for 3 seconds until HOLI is displayed then release. 3. Turn the dial to adjust holiday days, press to confirm. 4. Turn the dial to adjust set temperature, press confirm and return to the homescreen. -
Page 12: Boost (Bost)
Boost (bOSt) 3.4. Permanent manual override of set temperature. 1. In homescreen, press to select Auto mode 2. Press and hold & for 3 seconds to enter Boost setting. bOSt will display. 3. Use the dial to set the number of hours for the boost to run. Then press to confirm. -
Page 13: Main Menu
4. Main menu In the homescreen, press and hold until the displays shows tInE then release to enter main menu. Use the dial to choose between tInE, ProG, CoPy, LiGH, tEcH, rF, CoUP and rESE. Press to enter desired setting. Press to return to Homescreen. -
Page 14: Resetting The Unit (Rese)
N.B. It is recommended to leave this setting in the default OFF mode as heat generated by the thermostat’s power supply and LED will affect temperature measurement. A deviation of up to 3.5°C may occur, which will be calibrated automatically by the unit within 30 minutes of first connecting the thermostat. -
Page 15: Pre-Set Temperatures
5. Program settings Factory Pre-Set Programme This unit has been designed to be a simple to use thermostat, requiring minimal user intervention with a pre-programmed heating profile. The pre-set heating times and temperatures will suit most people (See table below). Operation setting range: 5/2 day, 7 day, 24 Hour. -
Page 16: Day
Pre-Set Temperatures: 7 Day 5.1.2 In 7 day setting, the pre-set settings are the same as the 5/2 Day programme. Pre-Set Temperatures: 24 Hours 5.1.3 In 24hr setting, the pre-set settings are the same as Mon-Fri of the 5/2 Day programme. Setting the Operation Mode (5/2 day, 7 day, 24hr) (ProG) 1. -
Page 17: Day
5. Turn the dial to adjust temperature (increments of 0.5°c). Then press to save and return to program choice (P1-P6). 6. Repeat steps 3-5 for all time and temperature programs. Then press to return to step 2. Repeat steps 2-6 until all desired days have been programmed then press to return to previous menu or leave for 1 minute... -
Page 18: Hour
24 Hour 5.3.3 1. Choose 24 hour operation (See section 5.2 for details). Then press . 2. Turn the dial to choose the program (P1-P6). Then press to enter time setting. 3. Turn the dial to adjust the time (10 minutes increments). Then press to enter temperature setting. - Page 19 CoUP then press . symbol will flash and - - - - will be displayed. 2. The 3. Now use the ESi Controls Centro APP to establish the WiFi connection. 4. In the Centro APP, enter the Heating & Hot Water section then tap add new device.
- Page 20 WARNING: Interference with sealed parts renders the guarantee void. In the interests of continuous product improvement we reserve the right to alter designs, specifications and materials without prior notice and cannot accept liability for errors. We are continuously developing our products to bring you the very latest in energy saving technology and simplicity.
