5420M-48T-4YE Switch Features
•
2 Stacking/SFP-DD ports
•
1 Serial console port (RJ-45)
•
1 10/100/1000BASE-T out-of-band management port
•
2 USB Type-A ports for management or external flash
•
1 USB Micro-B console port

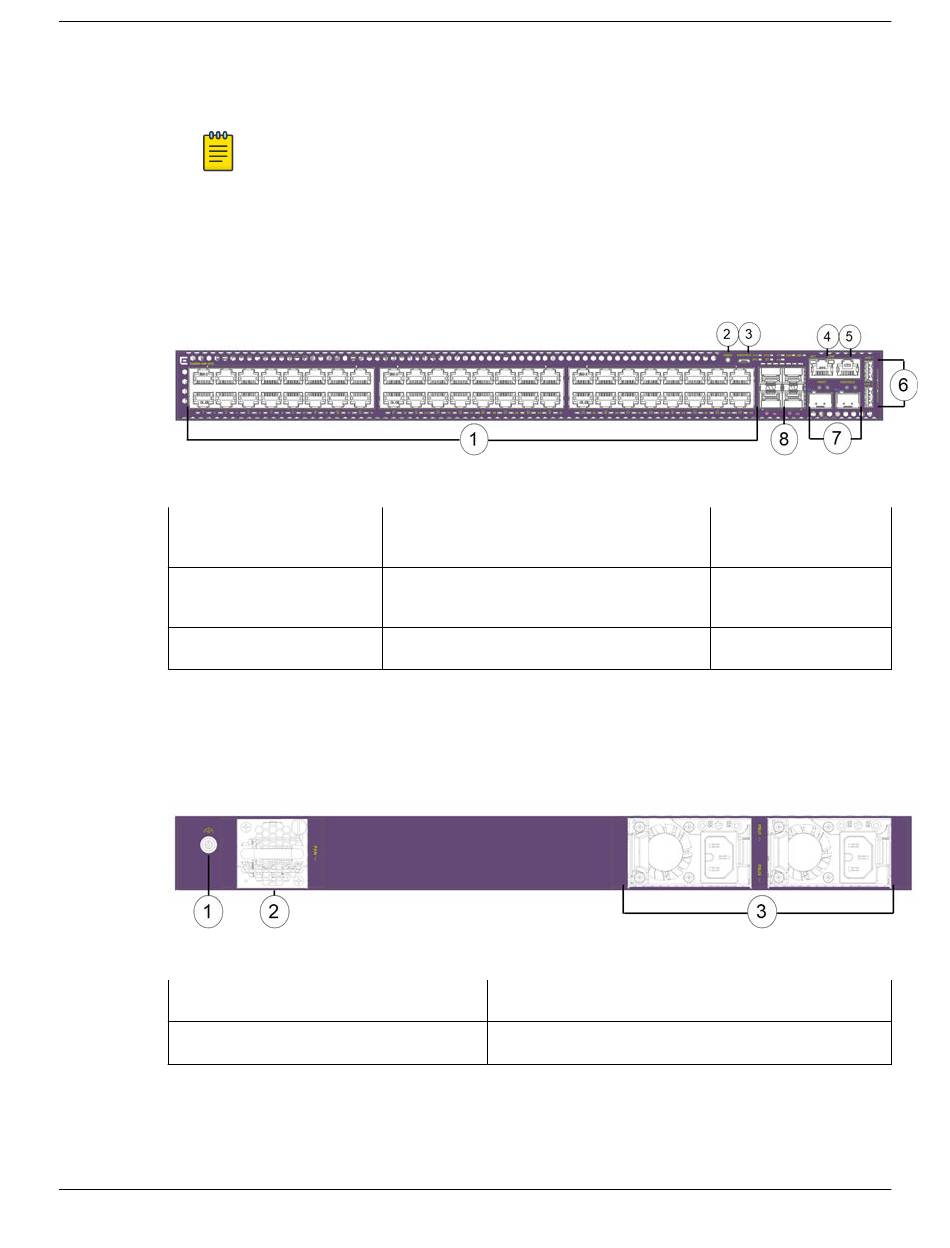

Figure 25: 5420M-48T-4YE Front Panel
1 = 10/100/1000BASE-T ports 4 = 10/100/1000BASE-T out-of-band
2 = Mode button
3 = USB Micro-B console port 6 = USB Type-A ports
The rear panel of the switch includes:
•
1 fan module
•
Grounding lug
•
2 power supply slots
Figure 26: 5420M-48T-4YE Rear Panel
1 = Grounding lug
2 = Fan module
28 ExtremeSwitching 5420 Series Hardware Installation Guide
Note
These ports can operate either as stacking ports, or as 10G Ethernet ports with SFP+
optics using the disable stacking-support command.
management port
5 = RJ-45 serial console port
ExtremeSwitching 5420 Series Overview
3 = Power supply slots
7 = SFP-DD stacking
ports
8 = 1/10/25G SFP28
ports
