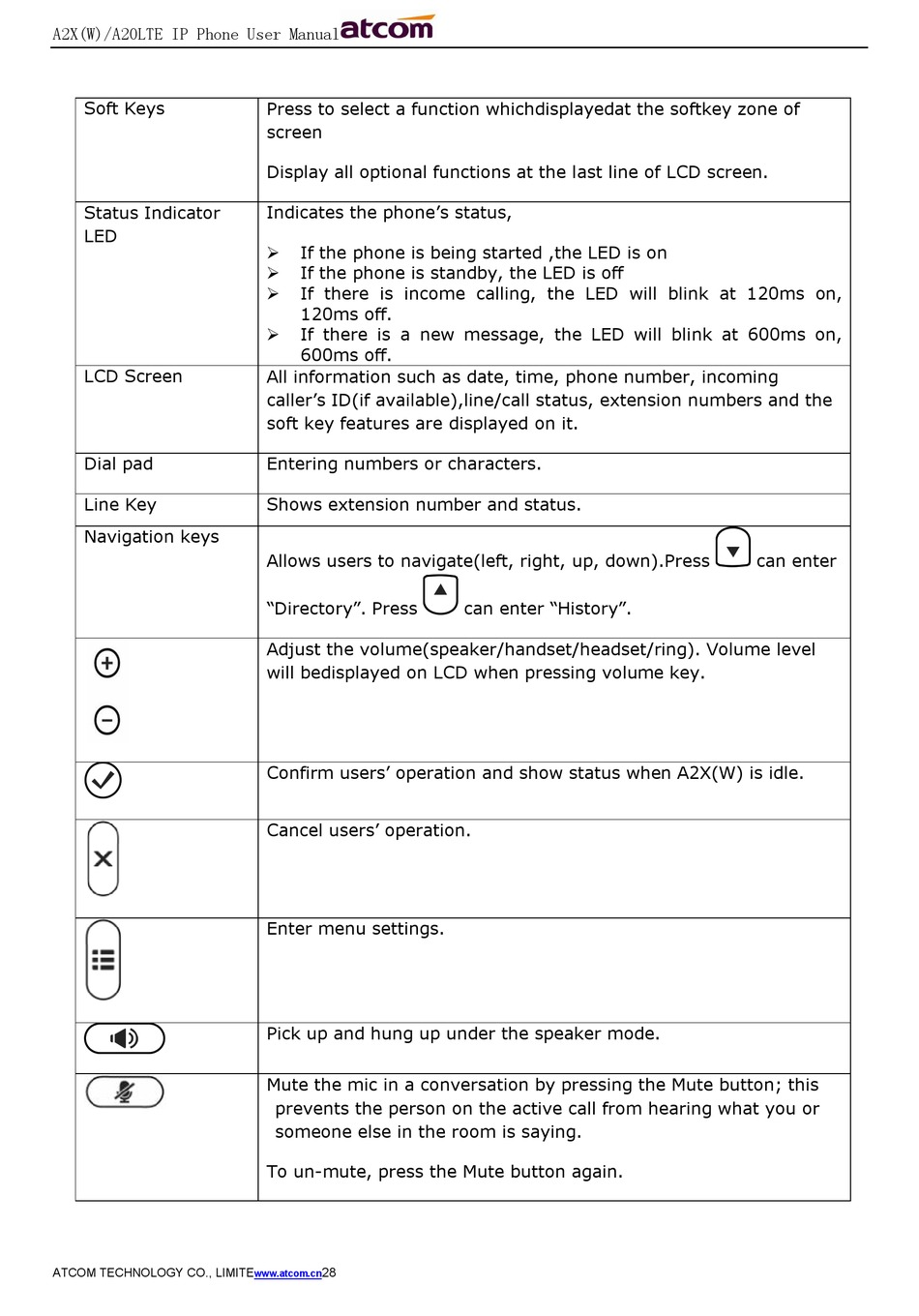

Soft Keys
Status Indicator
LED
LCD Screen
Dial pad
Line Key
Navigation keys
ATCOM TECHNOLOGY CO., LIMITE
Press to select a function whichdisplayedat the softkey zone of
screen
Display all optional functions at the last line of LCD screen.
Indicates the phone's status,
 If the phone is being started ,the LED is on
 If the phone is standby, the LED is off
 If there is income calling, the LED will blink at 120ms on,
120ms off.
 If there is a new message, the LED will blink at 600ms on,
600ms off.
All information such as date, time, phone number, incoming
caller's ID(if available),line/call status, extension numbers and the
soft key features are displayed on it.
Entering numbers or characters.
Shows extension number and status.
Allows users to navigate(left, right, up, down).Press
"Directory". Press
Adjust the volume(speaker/handset/headset/ring). Volume level
will bedisplayed on LCD when pressing volume key.
Confirm users' operation and show status when A2X(W) is idle.
Cancel users' operation.
Enter menu settings.
Pick up and hung up under the speaker mode.
Mute the mic in a conversation by pressing the Mute button; this
prevents the person on the active call from hearing what you or
someone else in the room is saying.
To un-mute, press the Mute button again.
