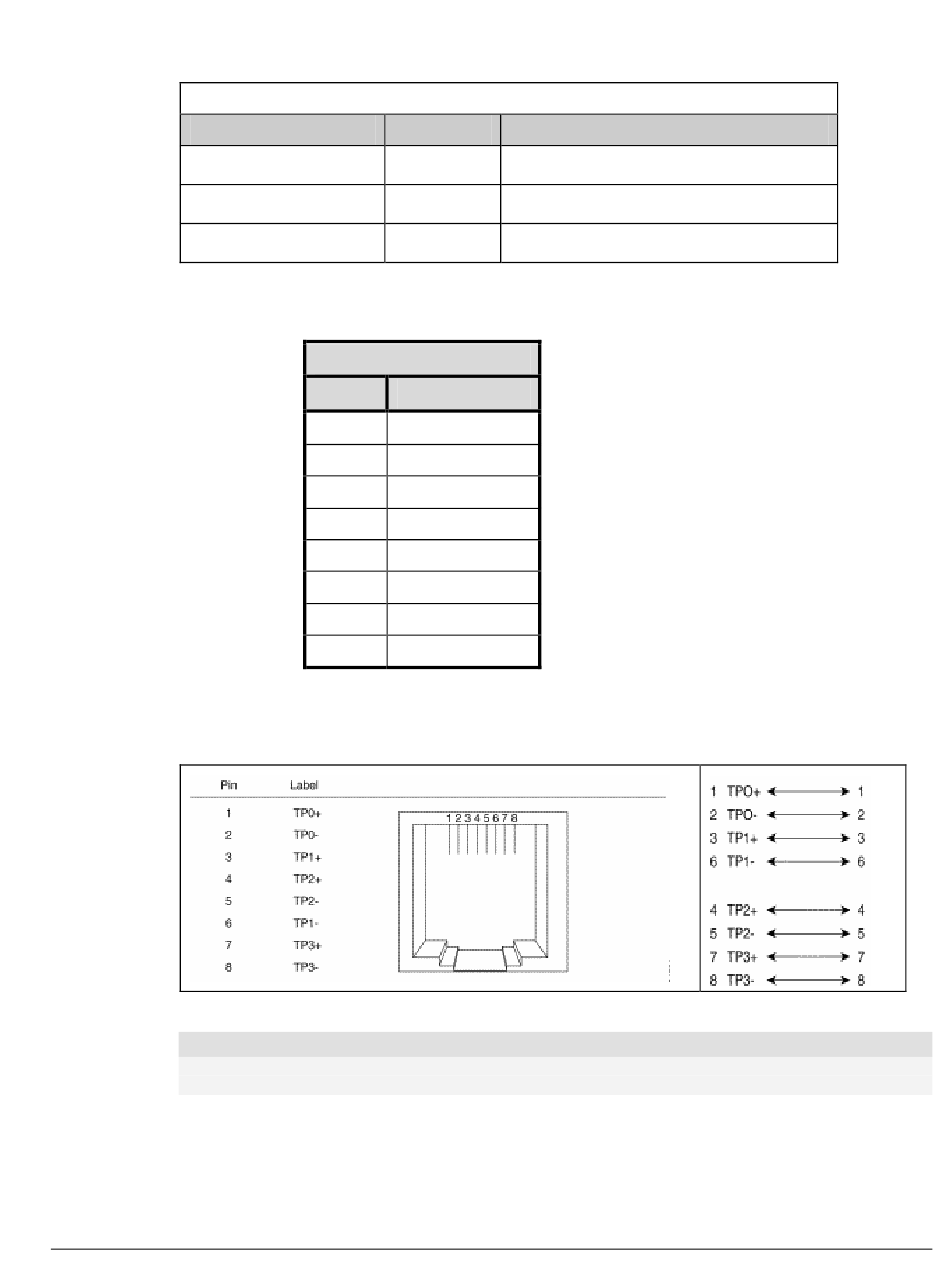

Table 4-1: WiN1010 data adapter LED Description
WiN1010 data adapter LED Description
Name
PWR
LAN
WLNK
Table 4-2: ODU I/F port pin-out
Cable Pinout
Ethernet Cable Pinout
Figure 4-7: Ethernet Cable RJ-45 Pinout
Note
The Cat5e Ethernet cable is not included. Please refer to "Appendix B – IDU to ODU cable specification"
for detailed technical specifications.
WiN5200
Color
Green
Green
Green
ODU I/F - RJ-45
Pin #
Description
1
ETH Data
2
ETH Data
3
ETH Data
4
+48V
5
+48V
6
ETH Data
7
RTN (-)
8
RTN (-)
Description
Input power is connected
LAN link/activity display
Wireless link/activity display
Installation Procedure | 37
