Note
The Cat5e Ethernet cable is not included. Please refer to "Appendix B – IDU to ODU cable specification"
for detailed technical specifications.
Connect the WiN 1010 data adapter to a Switch/Router/PC
Connect over a Cat 5e cable the Ethernet port of the of the WiN1010 data adapter to a 10/100
Base-T port of a Switch/Router/PC. Figure 4-5 illustrates some connection options.

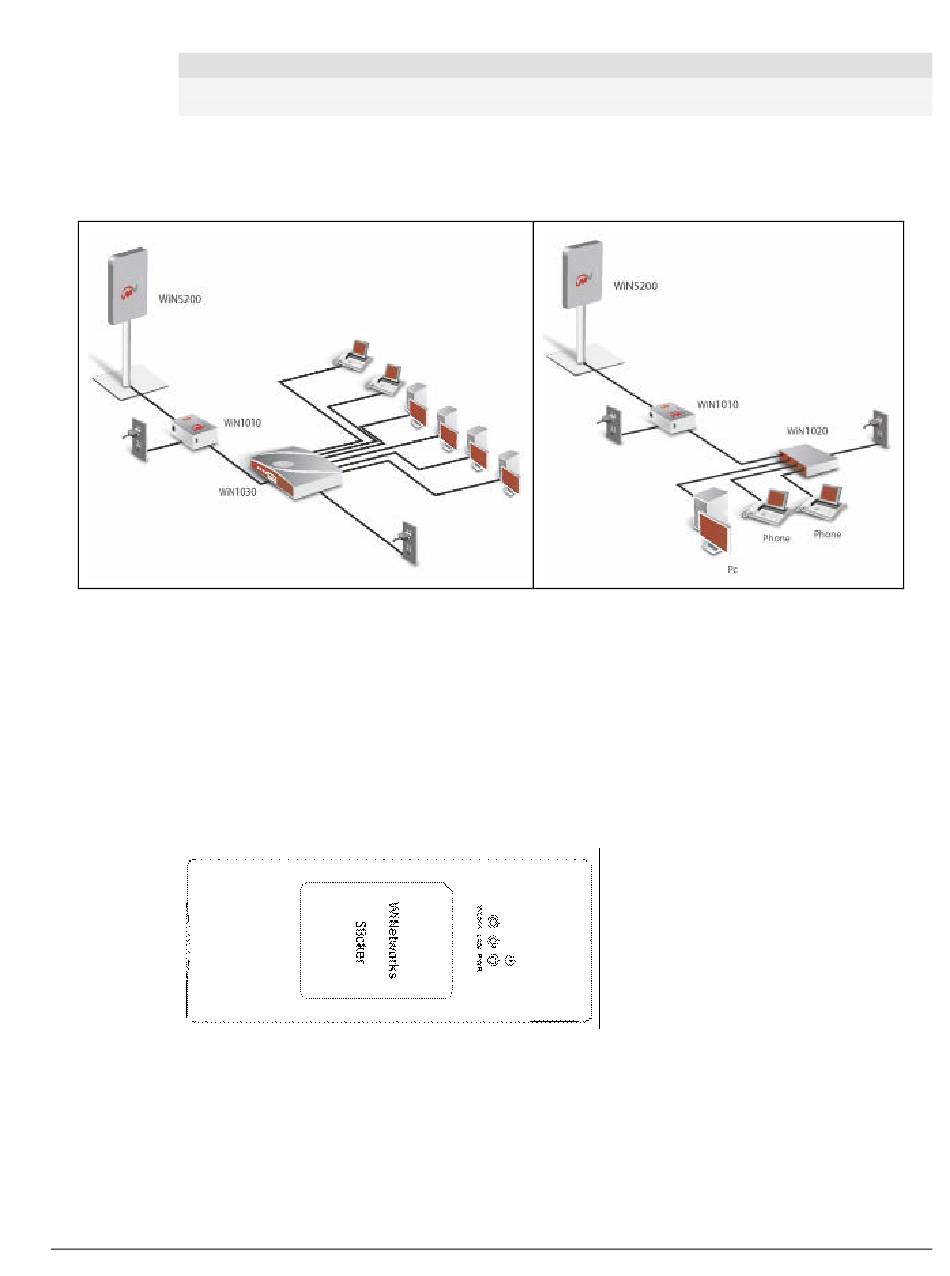

Figure 4-5: WiN1010 Data Adapter Connecting Options
Power Connection
Connect the WiN1010 data adapter to the 110V/220V AC mains using the supplied cable.
Before connecting the WiN1010 data adapter to the main outlet verify that all system
components are properly installed. Make sure that all cable connectors are securely
positioned in the appropriate ports.
WiN1010 data adapter LED Indicators
LEDs on the front panel indicate the status of the device.
Figure 4-6: WiN1010 Data Adapter Front Panel
The LEDs are listed by function in the following table.
WiN5200
Installation Procedure | 36
