KA01446D/06/EN/01.20
71487090
2020-09-17
Products
Brief Operating Instructions

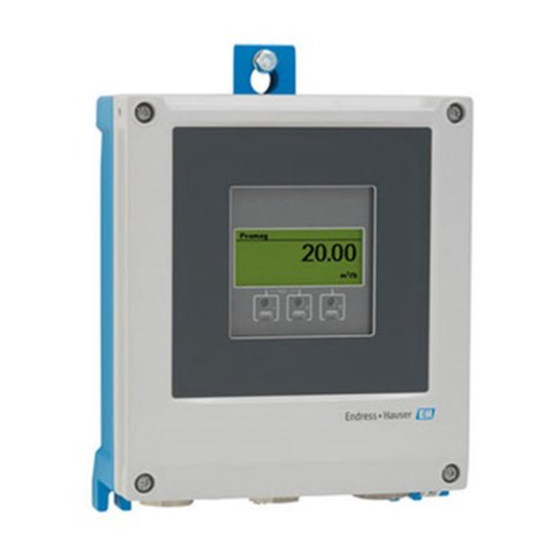

Proline 500 – digital
HART
Transmitter with thermal mass flowmeter sensor
These instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Brief Operating Instructions part 2 of 2: Transmitter
Contain information about the transmitter.
Brief Operating Instructions part 1 of 2: Sensor → 3
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Proline 500 digital HART
Summary of Contents for Endress+Hauser Proline 500 digital HART
- Page 1 Products Solutions Services KA01446D/06/EN/01.20 71487090 2020-09-17 Brief Operating Instructions Proline 500 – digital HART Transmitter with thermal mass flowmeter sensor These instructions are Brief Operating Instructions; they are not a substitute for the Operating Instructions pertaining to the device. Brief Operating Instructions part 2 of 2: Transmitter Contain information about the transmitter.
- Page 2 Proline 500 – digital HART Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
- Page 3 These Brief Operating Instructions are the Brief Operating Instructions part 2: Transmitter. The "Brief Operating Instructions part 1: Sensor" are available via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App Detailed information about the device can be found in the Operating Instructions and the other documentation: • Internet: www.endress.com/deviceviewer •...
-
Page 4: Table Of Contents
Diagnostic information ............34 Endress+Hauser... -
Page 5: About This Document
Result of a step Visual inspection 1.1.3 Electrical symbols Symbol Meaning Symbol Meaning Direct current Alternating current Direct current and alternating current Ground connection A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system. Endress+Hauser... - Page 6 Allen key Open-ended wrench 1.1.6 Symbols in graphics Symbol Meaning Symbol Meaning 1, 2, 3,... Item numbers … Series of steps A, B, C, ... Views A-A, B-B, C-C, ... Sections Hazardous area Safe area (non-hazardous area) Flow direction Endress+Hauser...
-
Page 7: Safety Instructions
Danger of breakage due to corrosive or abrasive fluids and ambient conditions! ‣ Verify the compatibility of the process fluid with the sensor material. ‣ Ensure the resistance of all fluid-wetted materials in the process. ‣ Keep within the specified pressure and temperature range. Endress+Hauser... -
Page 8: Workplace Safety
Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties. -
Page 9: Product Safety
It meets general safety standards and legal requirements. It also complies with the EU directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. IT security Our warranty is valid only if the device is installed and used as described in the Operating Instructions. -
Page 10: Product Description
The transmitter and sensor are mounted in physically separate locations. They are interconnected by a connecting cable. Transmitter Connecting cable: cable, separate, standard Sensor connection housing with integrated ISEM (intelligent sensor electronics module) For detailed information on the product description, see the Operating Instructions for the device Endress+Hauser... -
Page 11: Installation
Excessive tightening torque applied to the fixing screws! Risk of damaging the plastic transmitter. ‣ Tighten the fixing screws as per the tightening torque: 2 Nm (1.5 lbf ft) ø 20…70 TX 25 ø ( 0.79…2.75) SW 10 A0029051 1 Engineering unit mm (in) Endress+Hauser... -
Page 12: Wall Mounting
Mounting the transmitter housing: • Post mounting • Wall mounting Is the device undamaged (visual inspection)? Post mounting: Have the fixing screws been tightened with the correct tightening torque? Wall mounting: Are the securing screws tightened securely? Endress+Hauser... -
Page 13: Electrical Connection
Cable diameter • Cable glands supplied: M20 × 1.5 with cable ⌀ 6 to 12 mm (0.24 to 0.47 in) • Spring-loaded terminals: Suitable for strands and strands with ferrules. Conductor cross-section 0.2 to 2.5 mm (24 to 12 AWG). Endress+Hauser... - Page 14 Standard installation cable is sufficient. Current input 0/4 to 20 mA Standard installation cable is sufficient. Status input Standard installation cable is sufficient. 5.2.3 Choice of connecting cable between the transmitter and sensor Depends on the type of transmitter and the installation zones Endress+Hauser...
- Page 15 Transmitter installed in the hazardous area: Zone 2; Class I, Division 2 / sensor installed in the hazardous area: Zone 1; Class I, Division 1 Standard cable to remote display Transmitter 300 and remote display installed in the hazardous area: Zone 1; Class I, Division 1 Endress+Hauser...
- Page 16 In this case, the display of the Proline 300 transmitter is a blind version without local operation. A: Connecting cable between sensor and transmitter: Proline 500 – digital Standard cable A standard cable with the following specifications can be used as the connecting cable. Endress+Hauser...
- Page 17 Maximum 26 µH IIC, maximum 104 µH IIB Inductance/resistance ratio Maximum 8.9 µH/Ω IIC, maximum 35.6 µH/Ω IIB (e.g. in accordance with IEC (L/R) 60079-25) Loop resistance Power supply line (+, –): maximum 5 Ω Cable length Maximum 100 m (330 ft), see the following table. Endress+Hauser...
- Page 18 –25 to +105 °C (–13 to +221 °F) Available cable length Fixed: 20 m (65 ft); variable: up to maximum 50 m (165 ft) UV radiation can impair the cable outer sheath. Protect the cable from direct sunshine where possible. Endress+Hauser...
- Page 19 Remove dummy plug if present. If the measuring device is supplied without cable glands: Provide suitable cable gland for corresponding connecting cable. If the measuring device is supplied with cable glands: Observe requirements for connecting cables → 13. Endress+Hauser...
-
Page 20: Connecting The Measuring Device
Cable entry for cable on transmitter housing Protective earth (PE) Connecting cable ISEM communication Grounding via ground connection; on device plug versions grounding is through the plug itself Cable entry for cable or connection of device plug on sensor connection housing Protective earth (PE) Endress+Hauser... - Page 21 Option A "Aluminum, coated" → 22 t-mass F, I Option L "Cast, stainless" → 22 t-mass F, I Attaching the connecting cable to the transmitter The cable is connected to the transmitter via terminals → 23. Endress+Hauser...
- Page 22 Housing degree of protection voided due to insufficient sealing of the housing. ‣ Screw in the thread on the cover without using any lubricant. The thread on the cover is coated with a dry lubricant. Screw on the housing cover. Tighten the securing clamp of the housing cover. Endress+Hauser...
- Page 23 This concludes the process for attaching the connecting cable. Close the housing cover. 10. Tighten the securing screw of the housing cover. 11. After attaching the connecting cable: Connect the signal cable and the supply voltage cable → 24. Endress+Hauser...
- Page 24 Terminal connection for signal transmission, input/output; optional: connection for external WLAN antenna Protective earth (PE) TX 20 TX 20 10 (0.4) 22 mm 24 mm A0029597 Loosen the 4 fixing screws on the housing cover. Open the housing cover. Fold open the terminal cover. Endress+Hauser...
-
Page 25: Ensuring Potential Equalization
To guarantee degree of protection IP66/67, Type 4X enclosure, carry out the following steps after the electrical connection: Check that the housing seals are clean and fitted correctly. Dry, clean or replace the seals if necessary. Tighten all housing screws and screw covers. Firmly tighten the cable glands. Endress+Hauser... -
Page 26: Post-Connection Check
Are cables or the device undamaged (visual inspection)? Do the cables used meet the requirements ? Do the cables have adequate strain relief? Are all the cable glands installed, firmly tightened and leak-tight? Cable run with "water trap" → 25? Endress+Hauser... -
Page 27: Operation Options
Local operation via display module Computer with Web browser (e.g. Internet Explorer) or with operating tool (e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM) Field Xpert SFX350 or SFX370 Field Xpert SMT70 Mobile handheld terminal Control system (e.g. PLC) Endress+Hauser... -
Page 28: Structure And Function Of The Operating Menu
The individual parts of the operating menu are assigned to certain user roles (operator, maintenance etc.). Each user role contains typical tasks within the device lifecycle. For detailed information on the operating philosophy, see the Operating Instructions for the device. Endress+Hauser... -
Page 29: Access To The Operating Menu Via The Local Display
2.6 Explanatory symbols for measured value 2: measured value type, measuring channel number Navigation view: picklist of a parameter 3.1 Navigation path and status area 3.2 Display area for navigation: designates the current parameter value Editing view: text editor with input mask Editing view: numeric editor with input mask Endress+Hauser... - Page 30 Moves the input position one position to the left. Switches to the selection of the correction tools. Deletes one character immediately to the left of the input position. Toggle • Between upper-case and lower-case letters • For entering numbers • For entering special characters Endress+Hauser...
- Page 31 • Pressing the key for 2 s in the case of a parameter: Returns you to the operational display ("home position"). With a wizard: Exits the wizard and takes you to the next higher level. With a text and numeric editor: Closes the editor view without applying any changes. Endress+Hauser...
-
Page 32: Access To The Operating Menu Via The Operating Tool
• Operating tools • Measured variables via HART protocol • Burst mode functionality in accordance with HART 7 Specification Commissioning Function check Before commissioning the measuring device: ‣ Make sure that the post-installation and post-connection checks have been performed. Endress+Hauser... -
Page 33: Setting The Operating Language
They contain all the parameters required for configuration, such as for measurement or communication. Depending on the device version, not all submenus and parameters are available in every device. The selection can vary depending on the order code. Endress+Hauser... -
Page 34: Protecting Settings From Unauthorized Access
Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the operational display. The message about remedial measures can be called up from the diagnostic message, and contains important information on the fault. Endress+Hauser... - Page 35 The Diagnostic list submenu opens. Select the desired diagnostic event with or and press . The message about the remedial measures opens. Press + simultaneously. The message about the remedial measures closes. Endress+Hauser...
- Page 36 www.addresses.endress.com...
