Operating Instructions & Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
BUILT TO LAST
Description
This line of Campbell Hausfeld wire feed
welders is designed to be used on
standard 115V household current. The
welders are equipped with infinite wire
speed control to accurately select the
proper wire feed rate needed for various
welding conditions. Internal components
are thermostatically protected.
This welding system is designed for use
with the Flux Core Arc Welding (FCAW)
or the Gas Metal Arc Welding (GMAW)
process. As delivered from the factory,
this welder can weld with .024" (.6mm)
to .035" (.9mm) diameter wire in MIG
and .030" (.8mm) to .035" (.9mm)
diameter wire in flux core. A starter
spool of .035" (.9mm) flux core wire is
included.

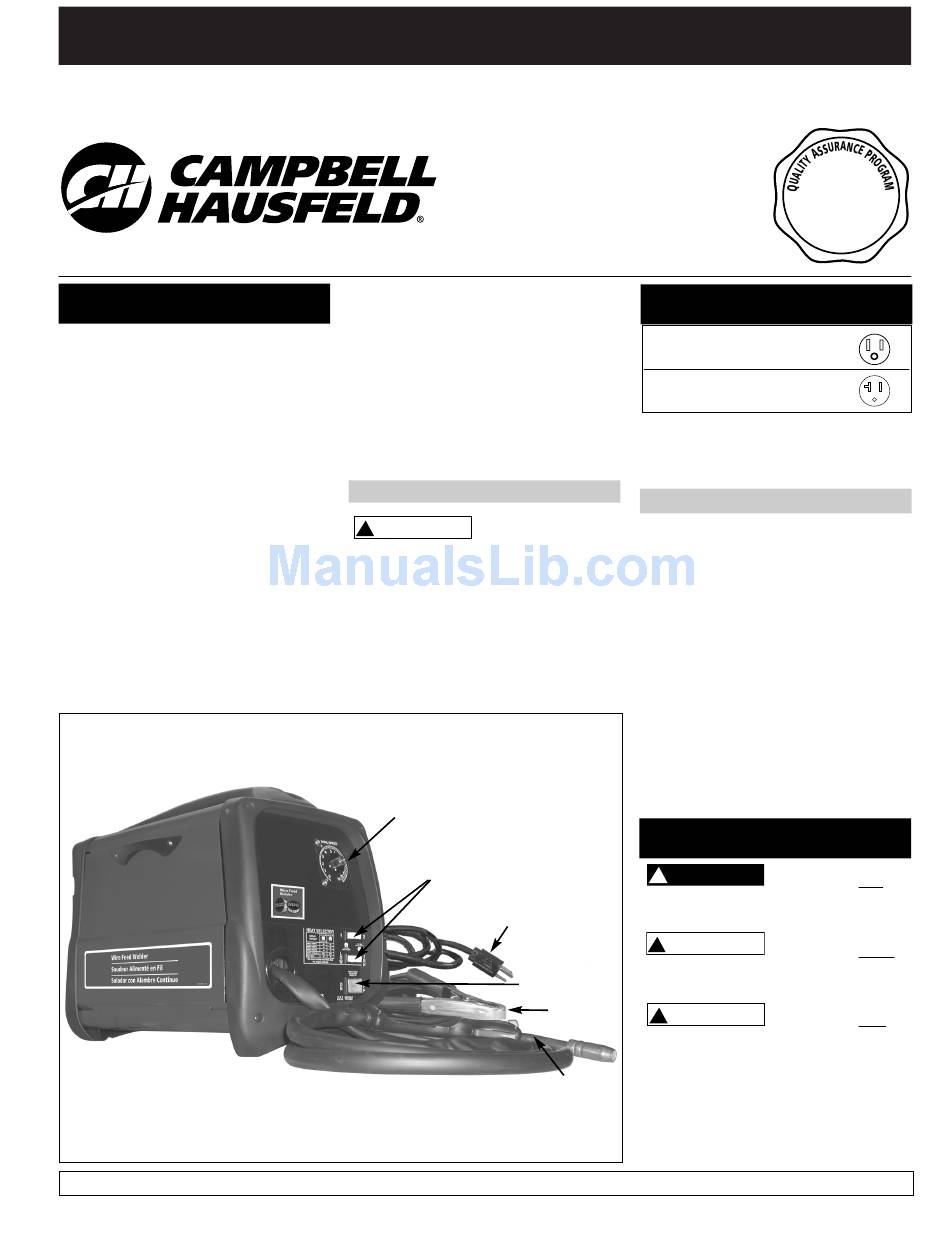

Figure 1 - Welder Components and Controls
REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.
© 2003 Campbell Hausfeld/Scott Fetzer
Model WG2040, WG2044, WG2045, WG3000
Wire Feed
Arc Welder
Unpacking
Welding accessories for the welder
are packed inside the wire feed
compartment. When unpacking, inspect
carefully for any damage that may have
occurred during transit. Make sure any
loose fittings and screws, etc. are
tightened before putting unit into service.
Report any missing or damaged
items by calling 1-800-746-5641.
CIRCUIT REQUIREMENTS
This equipment
CAUTION
!
requires a dedicated
115 volt circuit. Refer to the following
chart for correct circuit breaker or fuse
rating. Do not run other appliances, lights
or tools on this circuit while operating
this equipment. Extension cords are not
recommended. Blown fuses and tripped
circuit breakers can result from failure to
comply with this recommendation.
5
6
3
4
For parts, manuals, product & service information
visit www.chpower.com
Heat
Selector
Low
High
See page 7 for supply cable
replacement instructions.
COMPONENTS AND CONTROLS
1. Work Clamp - connect to work piece.
2. Wire Feed Gun
3. Power Cord - plug into 115 volt
outlet.
4. On/Off Switch - illuminates if
thermostat has automatically shut
unit off.
5. Infinite Wire Speed Control - turn
clockwise to increase wire speed and
counterclockwise to decrease wire
speed.
6. Heat Selector - Selects welding
power. Four selections are possible;
low 1, low 2, high 1 and high 2.
General Safety
DANGER
!
cause death or serious injury if the
warning is ignored.
WARNING
!
cause death or serious injury if the
warning is ignored.
1
CAUTION
!
cause minor or moderate injury if the
warning is ignored. It also may mean a
hazard that will only cause damage to
2
property.
NOTE: Note means any additional
information pertaining to the product
or its proper usage.
Need
Assistance?
Call Us First!
1-800-746-5641
Circuit Breaker or
Slow Blow Fuse
15 amp
20 amp
Danger means a
hazard that will
Warning means a
hazard that could
Caution means a
hazard that may
IN971503AV 6/03
